4. Dynatrace integration

Dynatrace MCP integration & Observability

This section explains how the Dynatrace MCP Server operates within your environment and how Dynatrace Observability is activated to monitor any application running in the enablement repositories.

MCP Server Integration#

The Dynatrace MCP (Model Context Protocol) Server enables AI Assistants to seamlessly interact with the Dynatrace observability platform, delivering real-time data directly into your enablement workflows—no manual configuration required. It is automatically embedded in all repositories within the Framework for VS Code, ensuring consistent access to monitoring and automation capabilities across development environments.

Prerequisites#

The repository is opened in VS Code (Web and Desktop versions).
You have defined the DT_ENVIRONMENT

Single Sign-On (SSO) Support

The MCP Server supports Single Sign-On (SSO) in Dynatrace, enabling seamless authentication across environments. Any Dynatrace environment the user can connect to is automatically accessible via MCP—no additional authentication required.

Optional Control Variables

Variable	Default Value	Description
`DT_PLATFORM_TOKEN`	Optional	Authentication token for Dynatrace MCP Server, supports Single Sign-On. For full list of supported scopes and use cases, refer to Dynatrace MCP documentation
`DT_GRAIL_QUERY_BUDGET_GB`	1000 GB	Budget limit for Grail queries in GB. Server tracks bytes scanned across all queries in current session. Warnings at 80% usage, alerts when exceeded. Resets on server restart
`DT_MCP_DISABLE_TELEMETRY`	`false`	Controls telemetry collection, when `true`, disables telemetry. Only anonymous usage statistics and error information are collected. No sensitive Dynatrace environment data is tracked

Environment Configuration#

Before you begin working with the MCP-enabled agent, you'll need to tell the agent to which Dynatrace environment it should connect to. The MCP Server supports SSO via VS Code Desktop and Web 🚀.

Playground as default environment

If no environment is set, DT_ENVIRONMENT falls back to a shared playground tenant. The environment menu in the framework (dynatraceEvalReadSaveCredentials in .devcontainer/util/functions.sh) offers it as option 1 and holds the current URL — read it there rather than from this page, so it cannot go stale.

Step 1:Connecting the MCP Server#

Steps to establish an MCP Server Connection

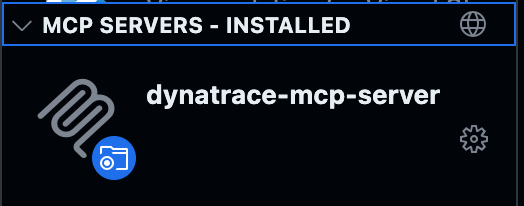

On the IDE go to the left pane > Extensions > MCP Servers Installed > dynatrace-mcp-server
Open dynatrace-mcp-server click on the configuration wheel > Start server

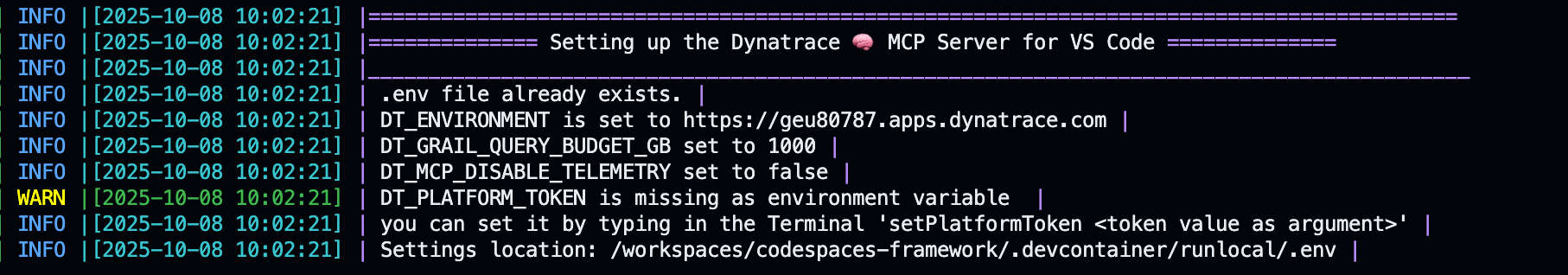

The server should start, it will read the environment file located at .devcontainer/.env and will read the variable DT_ENVIRONMENT
In the Server output (click on Show Output in the configuration wheel )
A link for the SSO authentication should open automatically (if not then click on it).
"✅ Successfully retrieved token from SSO!" is what you should see if you have access to the environment. Now let the agents communicate with the environment.

Steps to connect to another Dynatrace environment

There is a comfort function that helps you set the DT_ENVIRONMENT variable called selectEnvironment.
Type selectEnvironment in the terminal, select an environment or enter your own environment.
Restart the MCP Server by going to Extensions > MCP Servers Installed > dynatrace-mcp-server > restart server

Step 2: Start Chatting with the Agent#

After successfully connecting to the MCP server, you can now interact with the AI agent!

The agent has access to:

Code Analysis: Analyze the application code in this repository
Dynatrace Insights: Query logs, metrics, traces, and events from the monitoring tenant
Davis CoPilot: Get intelligent recommendations and problem analysis
Observability Data: Access real-time monitoring data and application behavior

Ask the agent what can you do with the MCP Server

A very useful question is to ask the agent what can you do with Dynatrace's MCP Server. The MCP Server is pulling from latest meaning every week you'll get more features. In order to check the latest stand, just ask the agent and it'll give you a comprenhensive list of what you can do depending on the tools installed at that time.

Comfort Functions for Environment Management#

To simplify MCP server configuration, two convenience functions are available:

1. selectEnvironment#

selectEnvironment

Prompts you to select a Dynatrace environment and configures it system-wide:

Available environments: Playground, demo.live, or tacocorp
Actions: Exports the environment variable and writes it to the .env file
Usage: Use this when you want to change the default environment for all operations

Starting the MCP Server #

On VS Code, on the left pane, click on the Extensions tab Shift + ⌘ + X. You should be able at the bottom to see a dynatrace-mcp-server installed under MCP servers.

Click on the wheel icon (settings) and click on Start Server

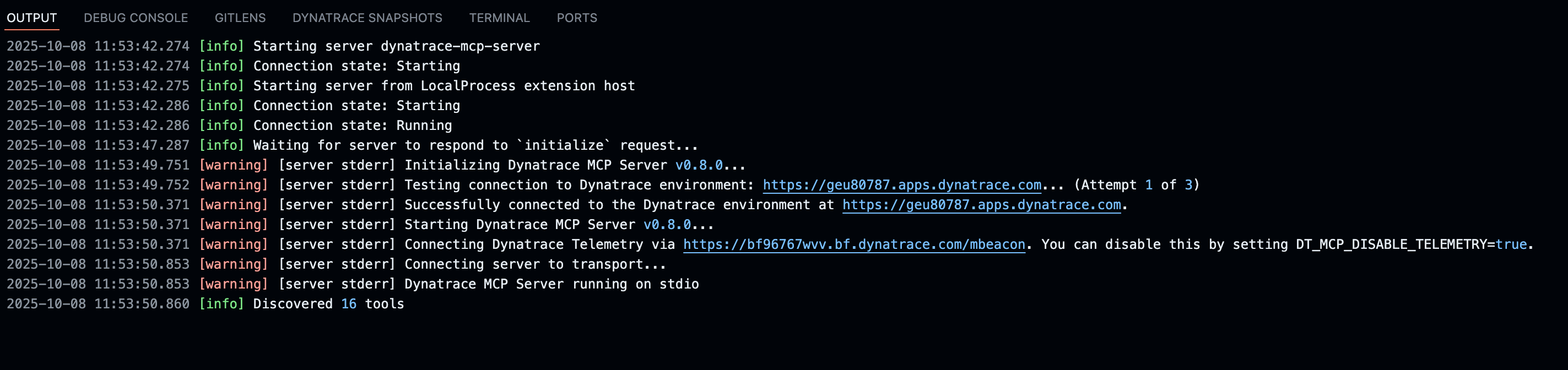

The output should show automatically (if not then click on show output). You should be able to see a similar output:

Yay! the AI Agent (by default in VS Code is GPT) should be able now to fetch information from the Dynatrace environment.

Verify that the connection is active. Ask the agent, "what can I do with my dynatrace mcp server? give me a comprenhensive list"

Example Prompts#

Example Prompts 💬

Use Case	Prompt
Find a monitored entity	`Get all details of the entity 'my-service'`
Find error logs	`Show me error logs`
Write a DQL query from natural language	`Show me error rates for the payment service in the last hour`
Explain a DQL query	What does this DQL do? `fetch logs \| filter dt.source_entity == 'SERVICE-123' \| summarize count(), by:{severity} \| sort count() desc`
Chat with Davis CoPilot	`How can I investigate slow database queries in Dynatrace?`
Send email notifications	`Send an email notification about the incident to the responsible team at team@example.com with CC to manager@example.com`
Multi-phase incident response	Our checkout service is experiencing high error rates. Start a systematic 4-phase incident investigation 1. Detect and triage the active problems 2. Assess user impact and affected services. 3. Perform cross-data source analysis (problems → spans → logs) 4. Identify root cause with file/line-level precision

For more prompts read the full documentation

Configure Model Access#

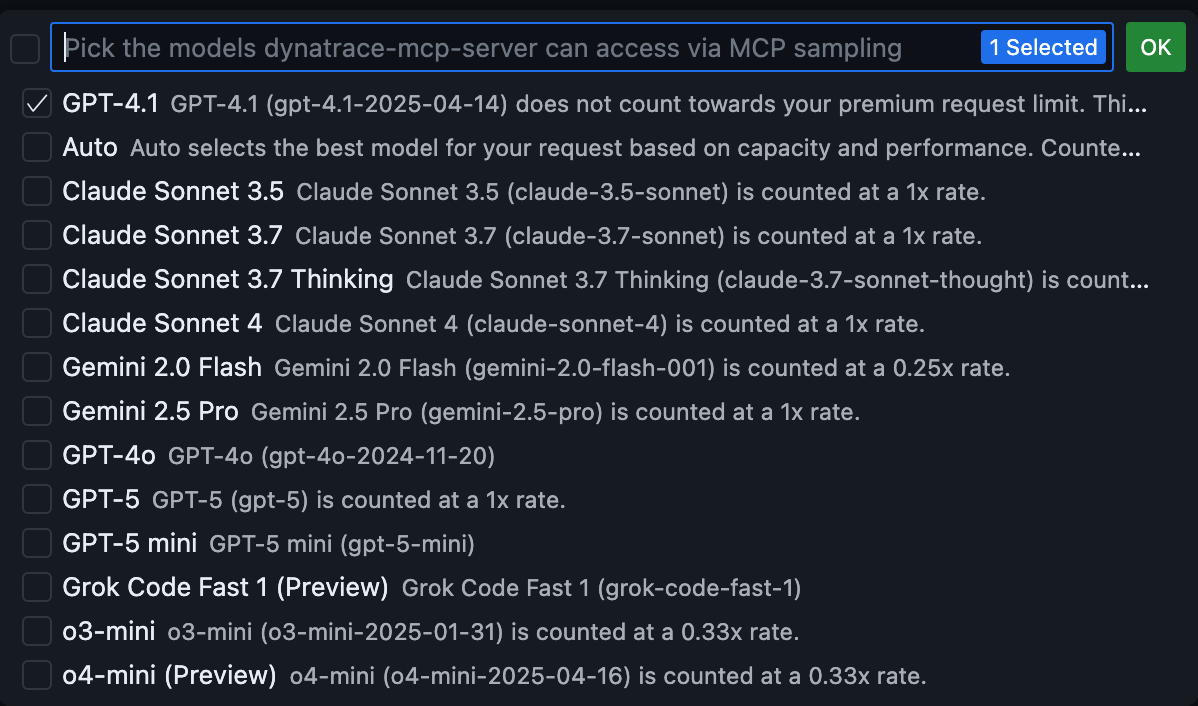

If you want to give access to other AI Agents and premium models, click in the Settings of the Dynatrace MCP Server, and select Configure Model Access, then select the models you want to give access to.

mcp server

Dynatrace Observability#

All repositories using the Enablement Framework can automatically activate Dynatrace Full-Stack Observability or Application Monitoring, enabling seamless monitoring of the Kubernetes cluster and all deployed applications—no manual setup required.

Prerequisites#

The container needs three environment variables to monitor its Kubernetes cluster: DT_ENVIRONMENT, DT_OPERATOR_TOKEN and DT_INGEST_TOKEN. Where they come from depends on where the container runs:

Where it runs	Who provides the variables
Dynatrace Enablement app (Orbital)	Nobody by hand. The app mints the tokens in the learner's tenant from the repo's `dt-tokens.yaml`, plus `DT_MONACO_TOKEN` / `DT_DTCTL_TOKEN` on every learner seat (not from that file — see below), and Orbital writes them into `.devcontainer/.env` before `post-create.sh` runs — or, for a Codespace Orbital launches, sets them as the learner's Codespaces secrets for that repo.
GitHub Codespaces	Codespaces secrets (`devcontainer.json` → `secrets`).
VS Code Dev Containers / local `make`	A `.devcontainer/.env` file (gitignored). See Instantiation types.

Monitoring a Kubernetes Cluster automatically#

Let's say we want to create an enablement where we deploy a Kubernetes Cluster and we want to deploy and monitor Astroshop also automatically when the enablement starts. Our post-create.sh file can look like this:

.devcontainer/post-create.sh
#!/bin/bash
#loading functions to script
export SECONDS=0
source .devcontainer/util/source_framework.sh

setUpTerminal

startK3dCluster

installK9s

# Dynatrace Operator is deployed automatically
dynatraceDeployOperator

# Deploys the DynaKube in the mode set by dynakube-defaults.yaml / dynakube-config.yaml
# (AppOnly by default). deployApplicationMonitoring and deployCloudNative force a mode.
deployDynatrace

# The Astroshop will be deployed as a sample
deployApp astroshop

# This step is needed, do not remove it
# it'll verify if there are error in the logs and will show them in the greeting as well a monitoring
finalizePostCreation

printInfoSection "Your dev container finished creating"

Now let's break it down.

Line 1 - 6: This code is needed for loading the framework and setting up the terminal for the container.
Line 8 and 10: startK3dCluster and installK9s create the Kubernetes Cluster (K3d, the default engine) and install k9s for easy management of your Kubernetes Cluster. For learning more go to Kubernetes Cluster section of the Framework section.
Line 13: dynatraceDeployOperator checks for the needed credentials and deploys the Dynatrace Operator with its components (CSI Driver and Webhook).
Line 17: deployDynatrace generates the DynaKube from the DynaKube configuration and applies it. With no argument it uses the configured mode: — AppOnly by default. Before applying, it checks the file with verifyDynakube; a file that fails the check, or a kubectl apply that fails, makes deployDynatrace return non-zero with the reason instead of reporting success.
Line 20: deployApp astroshop will call the deployApp repository and deploy Astroshop.

Function	Mode
`deployDynatrace`	the `mode:` from the DynaKube config (`apponly` unless the repo overrides it)
`deployDynatrace <mode>`	`apponly`, `cloudnative` or `k8s-only`, explicitly
`deployApplicationMonitoring`	always `apponly`
`deployCloudNative`	always `cloudnative` — the OneAgent DaemonSet cannot start on K3d nodes or under Orbital's Sysbox, so use it only on Kind outside Orbital

Race conditions safeguard

The framework includes logic to manage resources efficiently and prevent race conditions. For example, deployDynatrace will not apply the DynaKube while the Dynatrace Operator webhook is still starting. Once the Operator is ready, the DynaKube is applied and the ActiveGate is awaited, followed by the application itself. This ensures that Dynatrace components are fully operational before any application deployment begins.

Tokens: `dt-tokens.yaml`#

When a training runs in the Dynatrace Enablement app, nobody pastes a token. The app mints scoped, short-lived tokens in the learner's own tenant, and Orbital writes them into the container's .devcontainer/.env before post-create.sh runs. Which tokens, with which scopes, under which variable names, is declared in one file:

Framework default: .devcontainer/yaml/dt-tokens.yaml — an operator token (DT_OPERATOR_TOKEN) and an ingest token (DT_INGEST_TOKEN).
Repo override: the training repo's own .devcontainer/yaml/dt-tokens.yaml. Real example: enablement-kubernetes-101.

DT_MONACO_TOKEN and DT_DTCTL_TOKEN are not declared here: the app adds them to every learner seat itself — one platform token under both names, which can write and delete documents and settings — and drops a spec in this file under either name. A seat can be built without them (the per-owner platform-token cap); the app then says so on screen. See dtctl & Monaco.

.devcontainer/yaml/dt-tokens.yaml (repo override)

migrationStatus: migrated        # migrated | pending (default) | legacy-classic-only

tokens:
  - name_suffix: operator        # token name: enbl-<training>-<user>-operator
    env_var: DT_OPERATOR_TOKEN   # the variable the container receives
    scopes:                      # classic scopes (dotted names)
      - activeGateTokenManagement.create
      - activeGateTokenManagement.write
      - entities.read
      - settings.read
      - settings.write
      - DataExport
      - InstallerDownload
    platform_scopes:             # used where the tenant mints platform (dt0s16) tokens
      - fleet-management:activegate.connection-info:read
      - fleet-management:activegate.tokens:create
      - fleet-management:container-images:read
      - fleet-management:oneagent.connection-info:read
      - fleet-management:oneagents:download
      - settings:objects:read
      - settings:objects:write

  - name_suffix: ingest
    env_var: DT_INGEST_TOKEN
    scopes: [metrics.ingest, logs.ingest, events.ingest, openTelemetryTrace.ingest]
    platform_scopes:
      - openpipeline:logs:ingest
      - openpipeline:metrics:ingest
      - openpipeline:traces:ingest
      - storage:metrics:write

  - name_suffix: api             # an extra token your own functions read
    env_var: DT_API_TOKEN
    aliases: [DT_BIZEVENTS_TOKEN]  # same value under a second variable name
    scopes: [entities.read]

Field	Meaning
`name_suffix`	Required. Last part of the token name, `enbl-<training>-<user>-<suffix>` (max 100 chars).
`env_var`	Required. The variable name written into `.devcontainer/.env`. Your functions read it like any other variable.
`scopes`	Classic scopes (`metrics.ingest`, …). Under `kind: platform` write platform scopes here instead.
`kind`	`classic` (default) or `platform` (always minted as a `dt0s16` platform token).
`platform_scopes`	Platform scopes (`storage:logs:read`, `openpipeline:logs:ingest`, …) used when the token is minted as a platform token. If absent, `scopes` is translated.
`aliases`	Extra variable names that receive the same value.
`migrationStatus`	Top level. `legacy-classic-only` means the training needs a classic-only capability; it is the only value that refuses a workshop at creation.

The repo file REPLACES the default — it is not merged

Declaring one extra token means copying the operator and ingest tokens too, or the container starts without them. A repo file with an empty or missing tokens: list does not fall back to the framework file: it falls back to built-in defaults. Declare only the tokens the training needs — the app mints exactly those.

Tokens expire after 4 hours (the session TTL). Outside the app (Codespaces, local) nothing is minted: provide the same variables as secrets or in .devcontainer/.env.

DynaKube configuration: defaults and repo override#

The DynaKube is not a committed manifest. generateDynakube builds it at run time into .devcontainer/yaml/gen/dynakube.yaml (gitignored) from two flat YAML files:

.devcontainer/yaml/dynakube-defaults.yaml — framework-owned, synced to every repo. Do not edit it in a training repo.
.devcontainer/yaml/dynakube-config.yaml — your override, never synced. Only the keys you write change; everything else keeps the default.

.devcontainer/yaml/dynakube-config.yaml

# flat key: value only — nested YAML is ignored
mode: cloudnative        # apponly (default) | cloudnative | k8s-only
kspm: true
extensions: true
ag_memory_limit: "2Gi"

The keys and their defaults are listed in the Functions reference. The DynaKube name and hostGroup are <repo without "enablement-">-<session id>, cut to fit the operator's name limit; the session id is DT_HOSTGROUP (set by Orbital per learner) and always survives whole, which is what lets a DQL filter endsWith(k8s.cluster.name, "<session id>") isolate one learner.

Undeploying Dynakube#

Now, let's say you want to undeploy the Dynakubes, there is a comfort function for you to do so, just type undeployDynakubes and this will undeploy the Dynakubes. For changing the monitoring mode to ApplicationMonitoring just type deployApplicationMonitoring and this will deploy the Application Monitoring mode in the cluster.
