11. Mask sensitive data

Data masking#

Dynatrace provides you with tools that enable you to meet your data protection and other compliance requirements while still getting value from any data collected by Dynatrace, including the Live Debugger.

Sensitive Data is never sent to the Dynatrace servers

Data maksing within the Live Debugger is done on the OneAgent, which means that no personal data will be sent or stored on Dynatrace servers.

Data masking settings#

Setting Description
Rule name A name to identify the masking rule
Rule Active and Order You can activate and deactivate a rules on the fly. You can also move a rule up and down among other rules, meaning the first rule that matches the filter will be the one that is effective.
Rule type 1. Redact by variable name: Redact the value of all variables that match a name. The entire value will be masked.
2. Redact by regex: Redact any values that match the regex you supply
Data replacement 1. Replace with string: Optionally choose a string to replace the data being masked. The default value is ***
2. Replace with SHA-256: Redacted data will be replaced with a SHA-256 hash string.

Let's appy a data masking rule to the "title" variable#

In your Dynatrace tenant go to:

  1. Settings > Observability for Developers > Sensitive data masking
  2. Click on "Add rule" and give it a name, e.g. Title is masked
  3. Rule type we select "Redact by variable name" and enter "title"
  4. Data replacement we select "Replace with string" and leave the default value ***
  5. Save the rule.

The Masking Rules are applied on the fly 🚀

The masking rules are applied on the fly to all connected processes or containers where they have the Live Debugger active and match a filter for setting non-breaking breakpoints! No restart is required. How awesome is that!?!

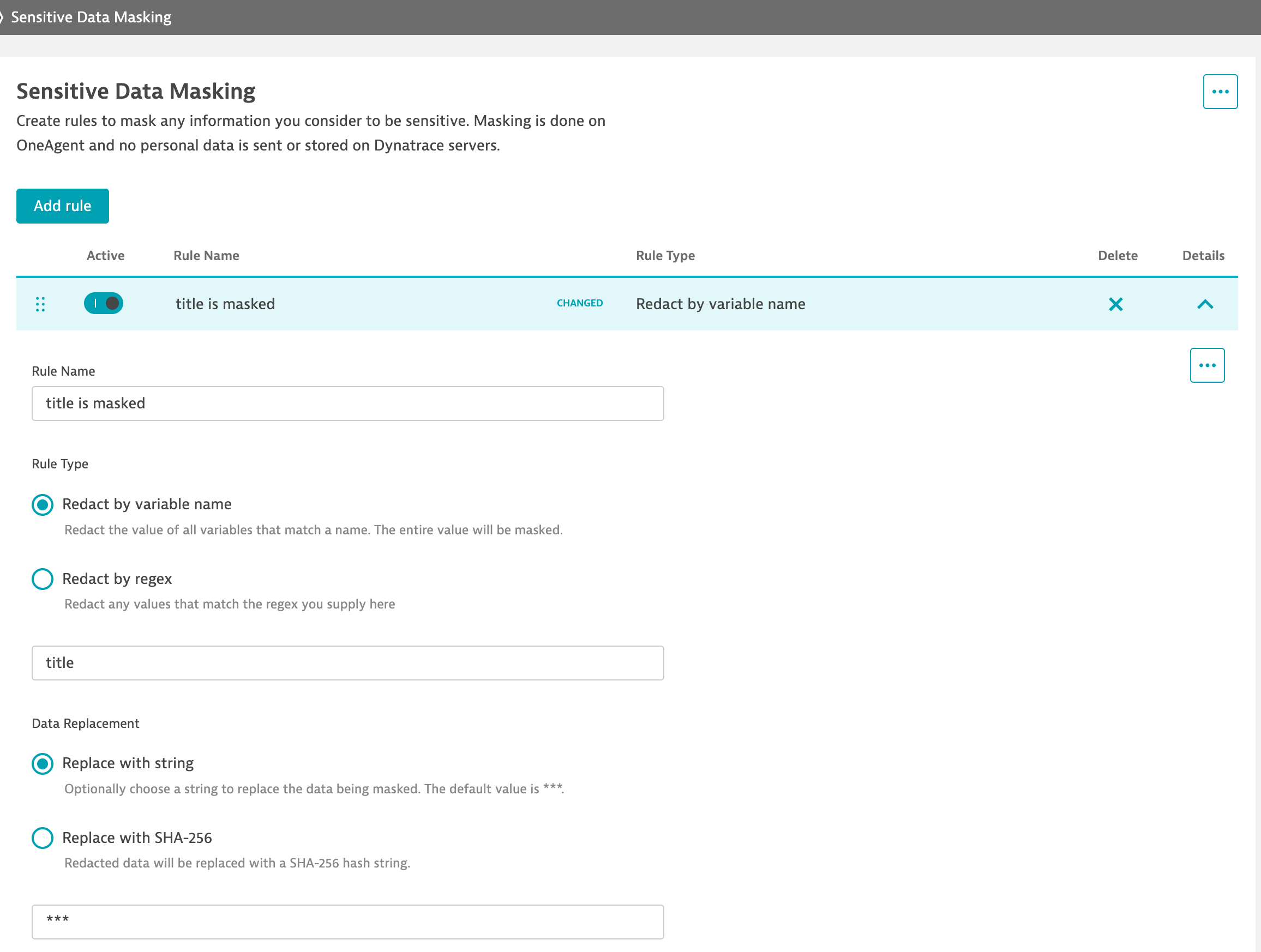

The rule should look something like this:

vscode menu

Verify that the "title" is being masked#

Once you have applied the masking rule, open the "Todo app" and add a new task, or remove it, depending the Method where you have the Live Debbugging breakpoint.

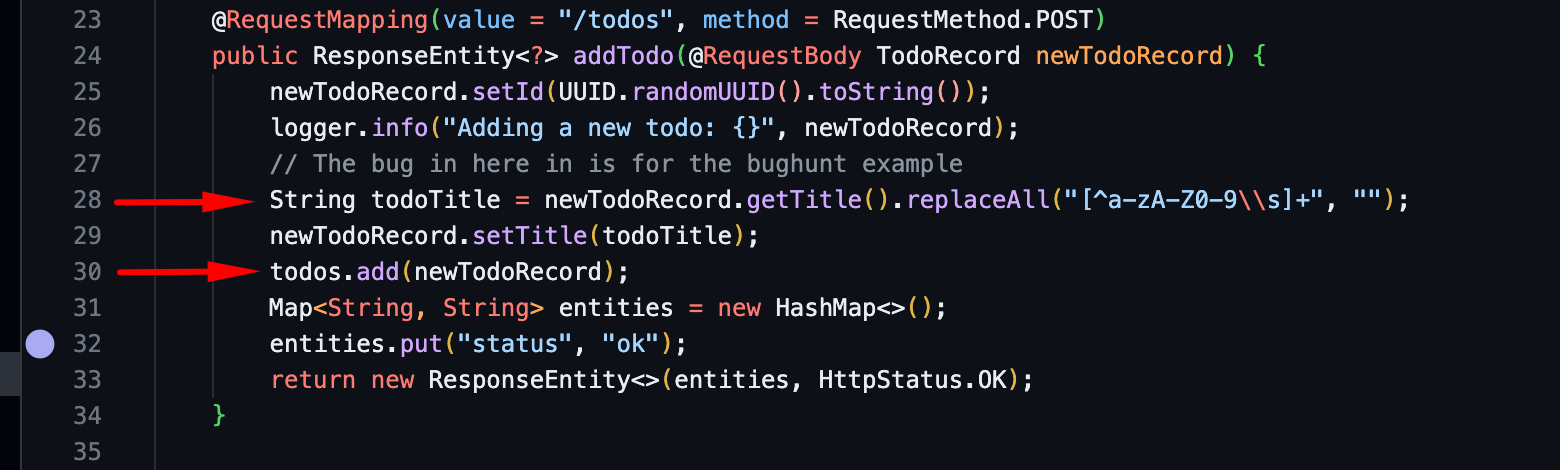

In the following example we have the Live Breakpoint in the line 32 of the TodoController.java class. This corresponds the method addTodo. The Class TodoRecord contains a private variable called title. This variable will be masked with the simple rule we have active.

title vars are masked

But if you can see there is another variable, a temporary variable called todoTitle. Since this variable does not match the rule with the exact variable name title then it won't be masked.

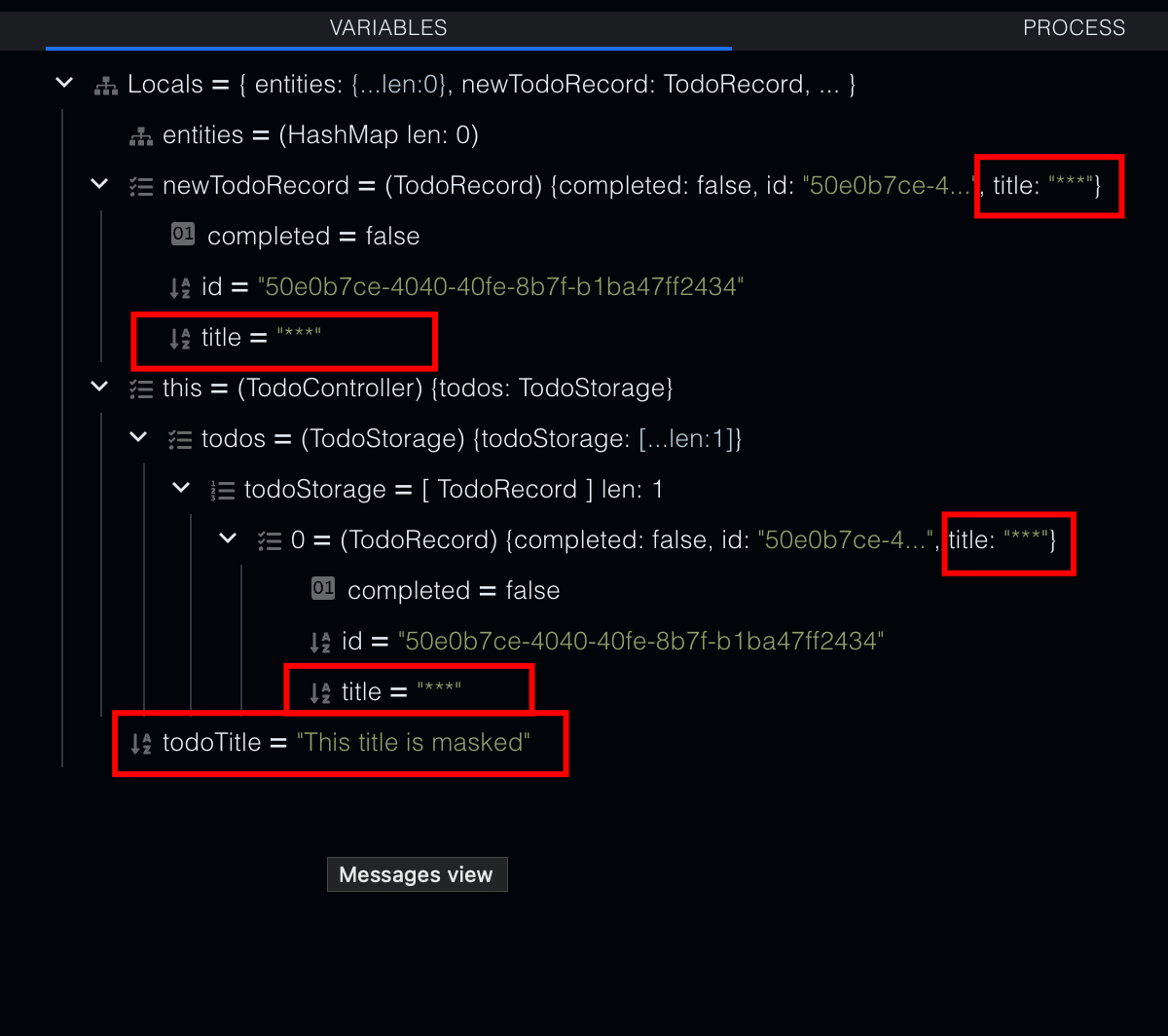

In the snapshot you can see, that all variables that match the rule will be masked, not the todoTitle. title vars are masked

Dynatrace gives Developers the flexibility to mask and capture variables with simple rules as well with complex rules using regex. Give it a try!
