3. Codespaces

Create Codespace#

Click to open Codespaces for this lab repository:

Open in GitHub Codespaces

Codespace Configuration

  • Branch
    • select the main branch
  • Dev container configuration
    • select Enablement on codespaces template
  • Machine type
    • select 4-core
  • Region
    • select any region, preferably one closest to your Dynatrace tenant

Wait for Codespace#

We know your time is very valuable. This codespace takes around 7-10 minutes to be fully operational. A local Kubernetes (kind) cluster will be configured and in it a sample application, AstroShop, will be deployed. To make your experience better, we are also installing and configuring tools like:

k9s kubectl helm node jq python3 gh

Explore Codespace#

Your Codespace has now deployed the following resources:

  • A local Kubernetes (kind) cluster, with some pre-deployed apps that will be used later in the demo.

  • CronJobs running in Kubernetes that generate some sample log data

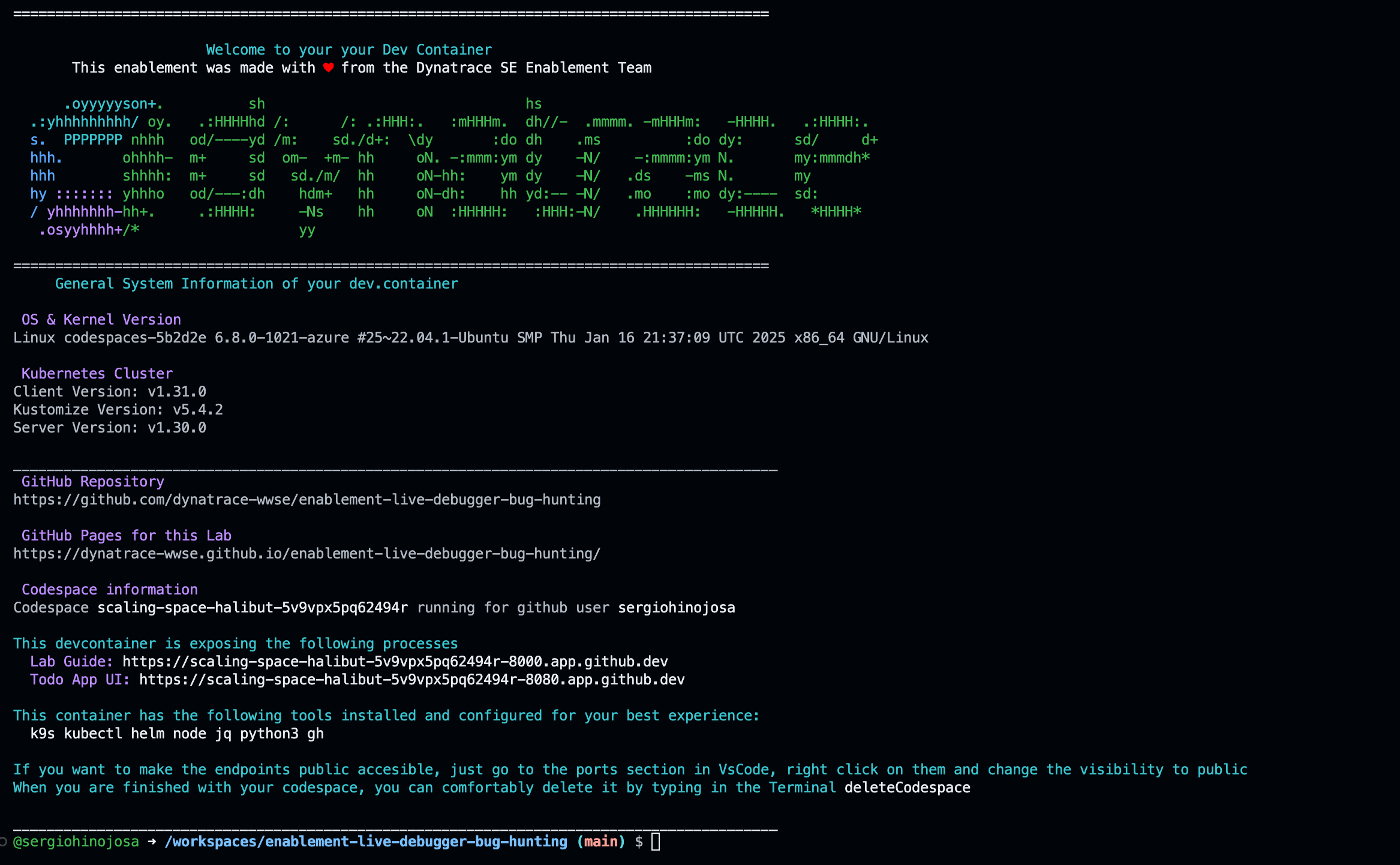

After a couple of minutes, you'll see this screen in your Codespaces terminal. It contains the links to the UI of the application which we will be using for our hands-on training.

Sample output: Codespaces finish

Tips & Tricks#

We want to boost your learning and try to make your experience as smooth as possible with Dynatrace trainings. Your Codespaces have a couple of convenience features added.

Show the greeting#

In the terminal, there are functions loaded for your convenience. By creating a new terminal the greeting will be shown that includes the links to the exposed apps, the Github pages, the Github Repository, the Dynatrace Tenant that is bound to this devcontainer (if applicable) and some of the tools installed.

You can create a new terminal directly in VSCode, type zsh or call the function printGreeting and that will print the greeting with the most relevant information.

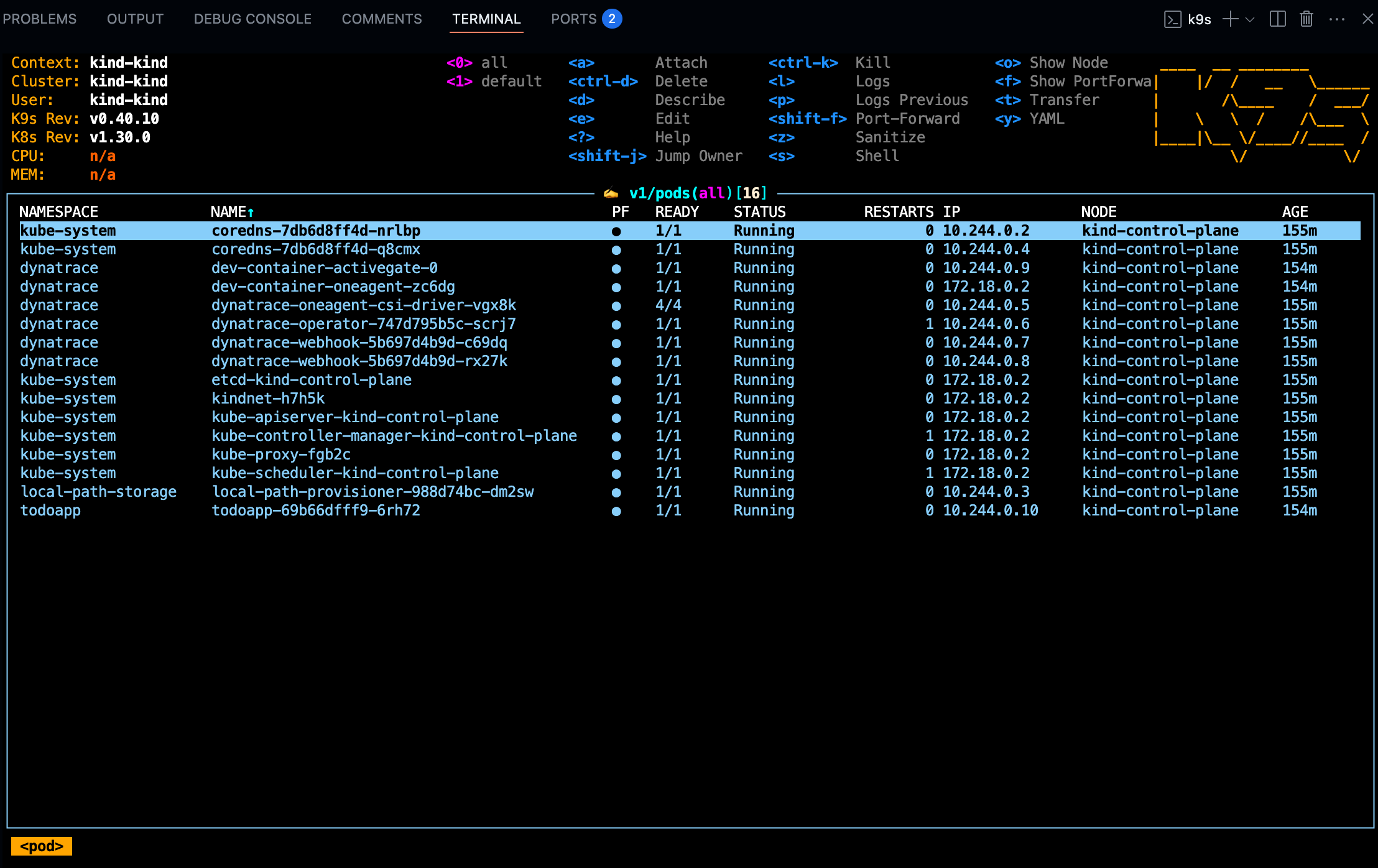

The client kubectl and k9s are configured so you can navigate in your local Kubernetes. k9s

Exposing the apps to the public#

The AstroShop app is being exposed in the devcontainer to your localhost. If you want to make the endpoints publicly accesible, just go to the ports section, right click on them and change the visibility to public.

Troubleshooting#

AstroShop#

If you encounter problems with the AstroShop app deployed in the astroshop namespace, you can easily recycle the pods.

Recycle pods:

kubectl delete pods --all -n astroshop

But before doing so, if you want to see what is happening we recommend the following:

Verify all astroshop pods

kubectl get pods -n astroshop

Check for events in the astroshop namespace

kubectl get events -n astroshop

Check for system and cluster events

kubectl get events -n kube-system
kubectl get events -n default

App exposure#

The Astroshop application is exposed via NodePort and it's mapping port 8080 to Cluster port 30100.

Verify service:

kubectl get svc astroshop-frontendproxy -n astroshop

CronJobs#

If you encounter problems with the CronJobs deployed in the cronjobs namespace, reapply the manifests.

Deploy cronjobs:

deployCronJobs

Continue#

In the next section, we'll deploy Dynatrace on our Kubernetes cluster to start collecting logs (and more!).
