Business Events Capture - API#

Organizations in today’s data-driven world often struggle with fragmented data sources that hinder comprehensive business insights. Using the Dynatrace Business Event API, external business or IT systems can be used as another data source to send for business event data Dynatrace.

This approach is useful when business-relevant information needs to be used and no other ingest path for business events is available.

The Dynatrace Business Event API supports JSON, CloudEvents and CloudEvents batch payload formats.

Supported Authentication Types:

  • Access token
  • OAuth

Ingest business events via API documentation

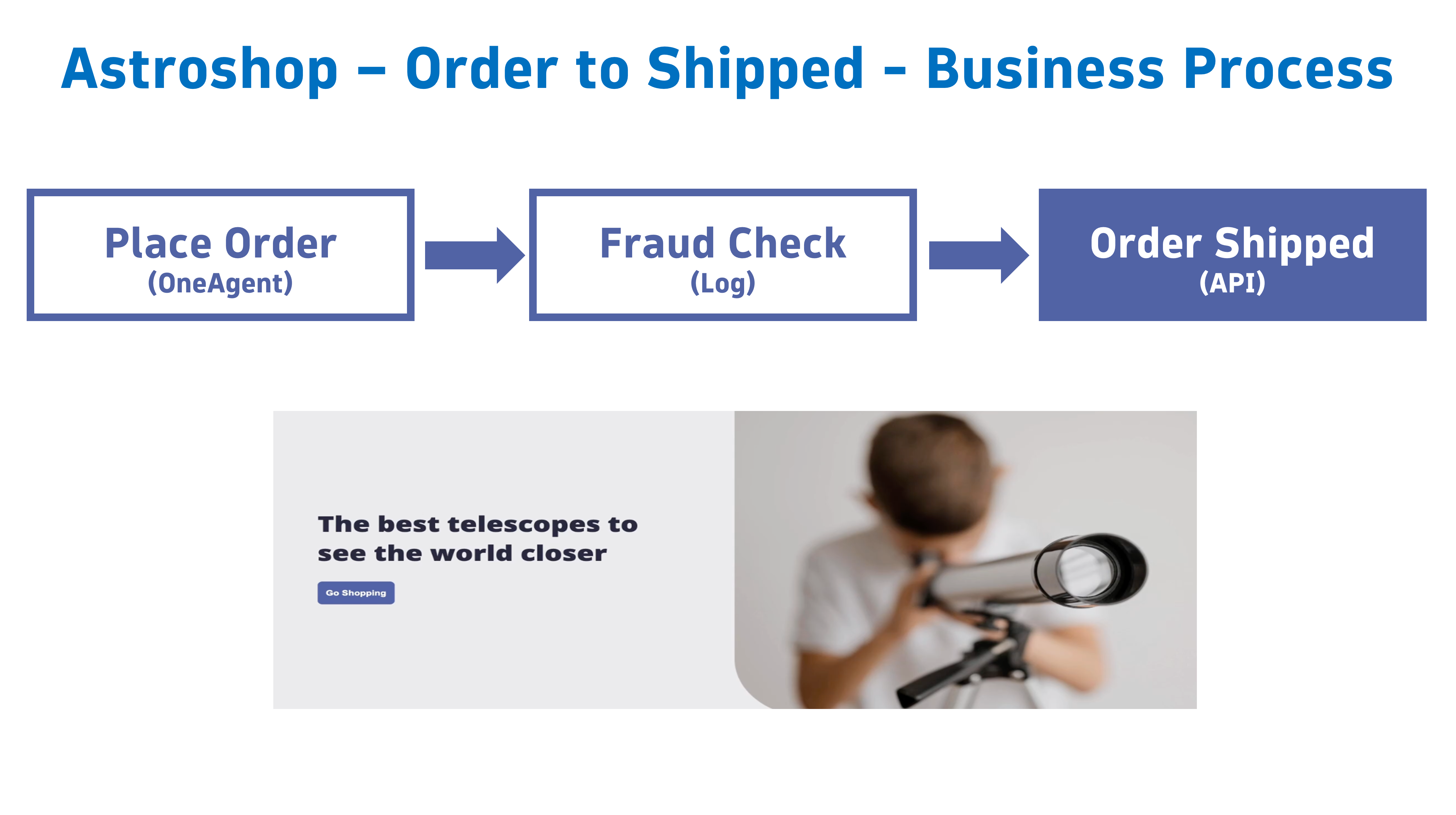

This lab will utilize sending event data to the Business Events API for the Order Shipped step of the Astroshop Order to Shipped business process.

  • Use a workflow to send Order Shipped business events to the Business Events API
  • Validate the data using a Notebook

FlowStepThree

Order Shipped#

In this section of the lab we will use a Dynatrace Workflow to send simulated events that represent the Astroshop Shipping system when an Order is Shipped. These events will leverage the Business Events API for the Order Shipped step of the Astroshop Order to Shipped business process.

Workflow - Order Shipped - Download#

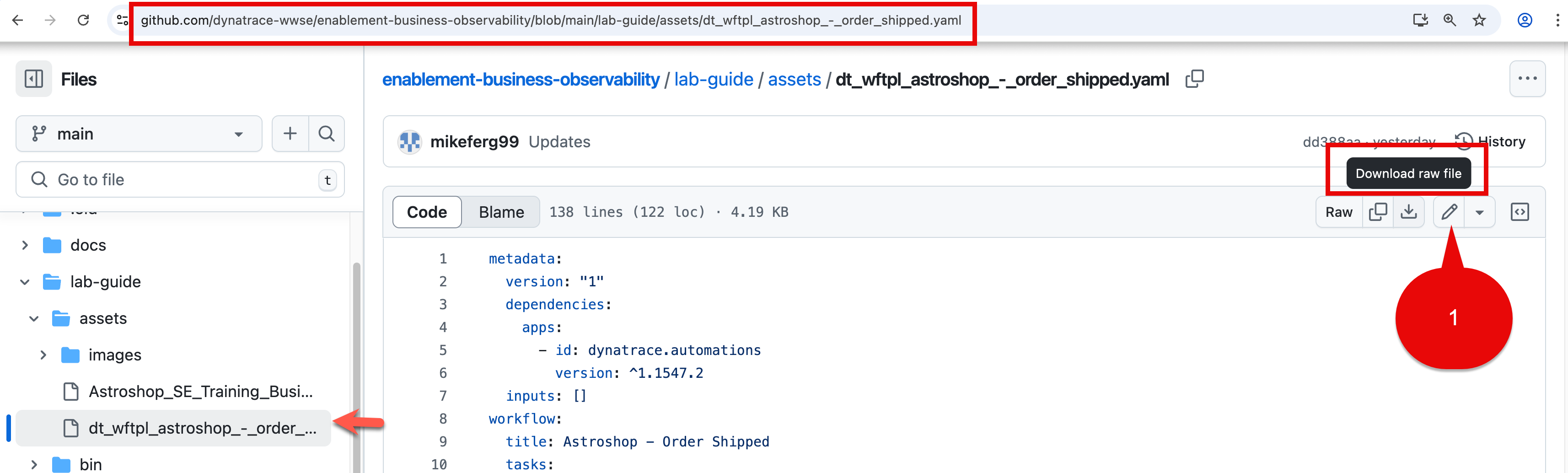

Download the workflow Astroshop - Order Shipped using the source file Astroshop - Order Shipped to your local system.

Astroshop - Order Shipped - Github Download

Workflow - Order Shipped - Upload and Import#

Open the Dynatrace Workflow app.

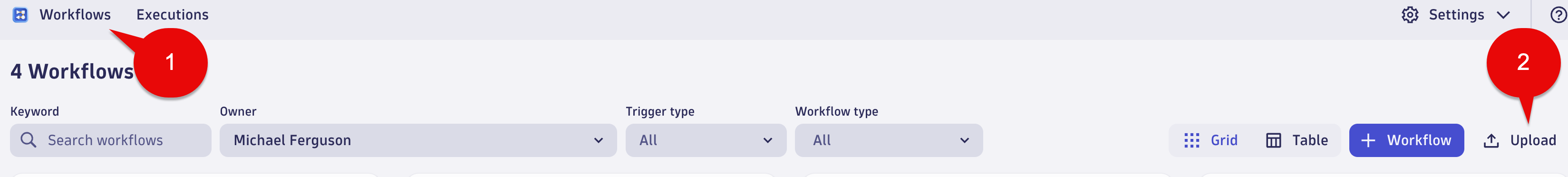

Workflows are imported using the Upload button.

Workflow Import

Pick the dt_wftpl_astroshop_-_order_shipped.yaml from your local system.

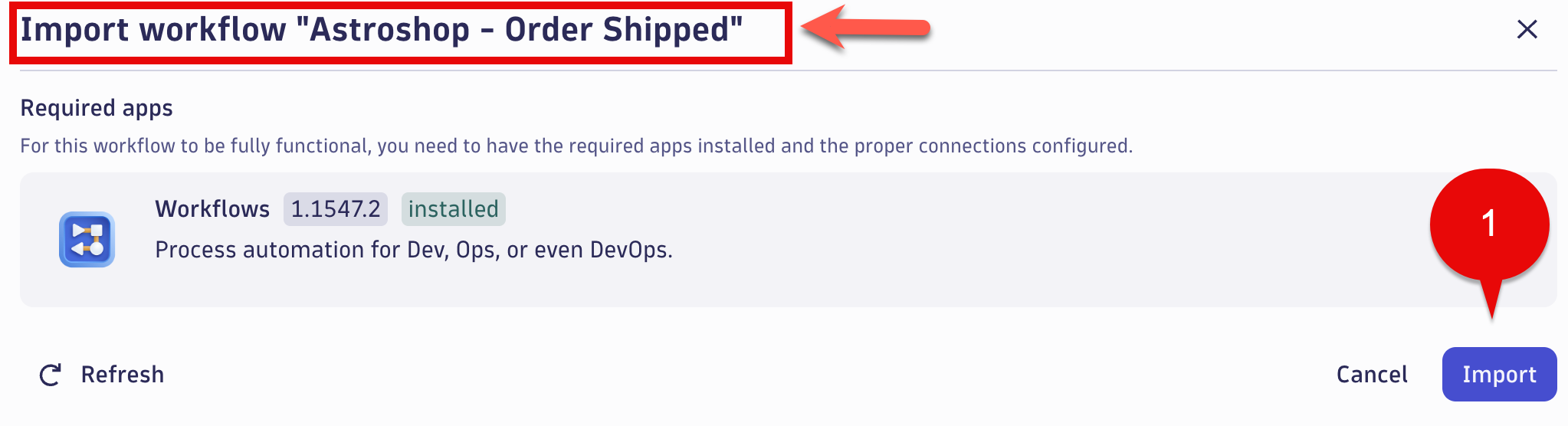

When loaded a screen will appear called Import workflow "Astroshop - Order Shipped"

Select Import button.

Workflow Import

Workflow - Order Shipped - js_set_parameters#

Select the js_set_parameters.

Note: This will be the task/action that defines the parameters/variables that will be used by subsequent tasks and returns them in the result. By setting the parameters as nested attribute key:value pairs within a single variable, as additional parameters are needed they can easily be added without modifying any other code. Great best practice for any workflows you create.

In the Input section set the values of the missing variables with the following:

BIZEVENTS_API_URL:

Replace `<tenant-id-env>` with your Dynatrace environment ID and Env.

Prod Example:   `xxxxxx.live.dynatrace.com`
Sprint Example: `xxxxxx.sprint.dynatracelabs.com`

BIZEVENTS_API_TOKEN:

Use the Business Event API Token we created in the Environment Setup.

Paste your token in between the quotes.

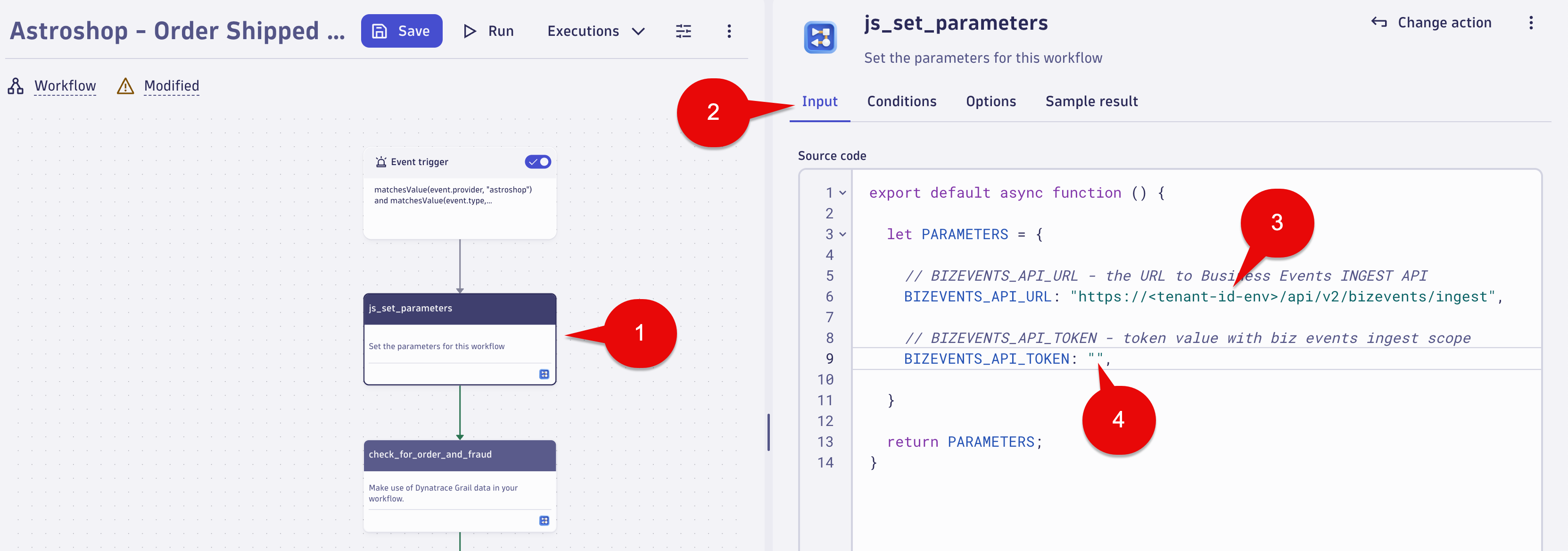

js_set_parameters

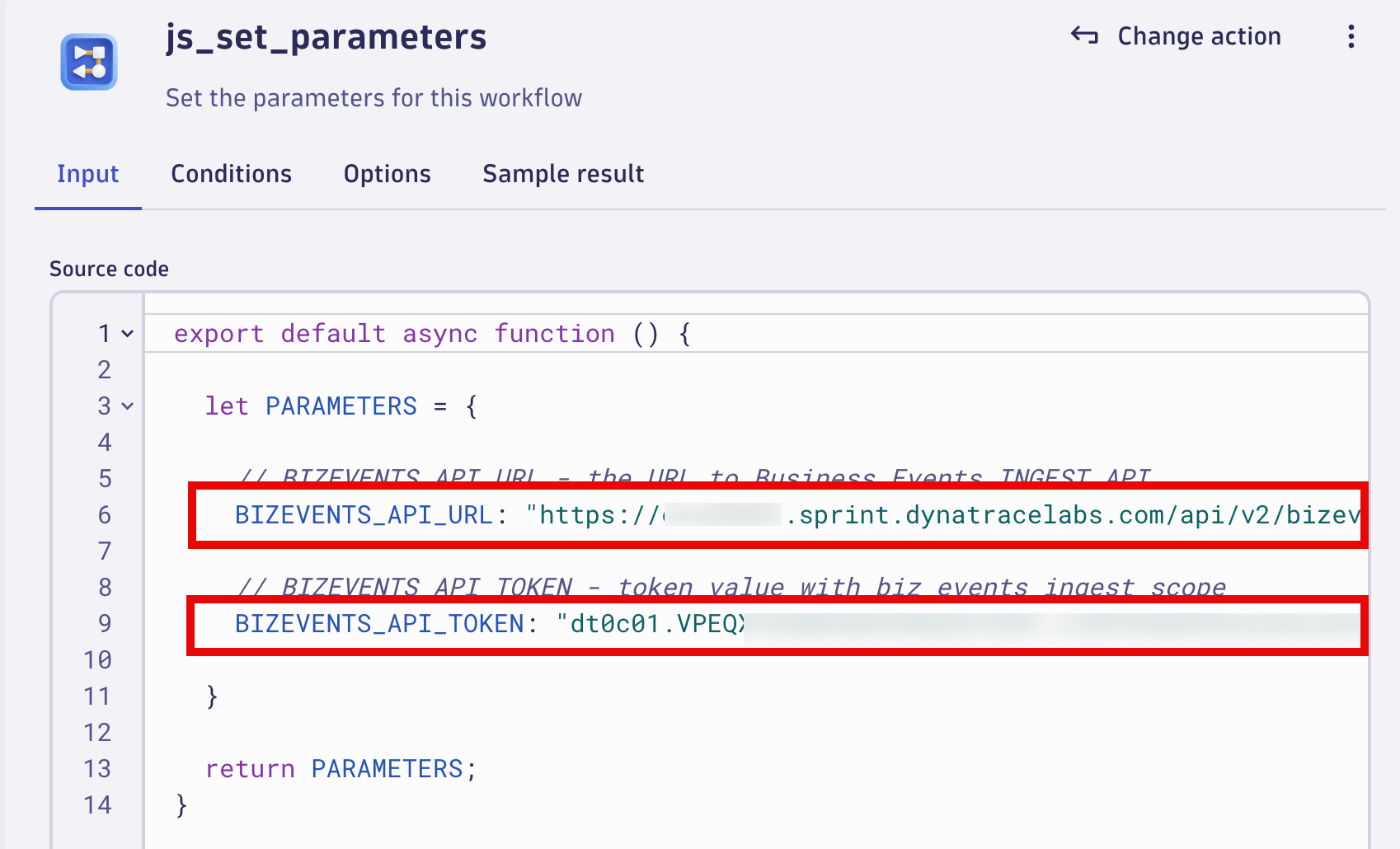

Example should look like below:

js_set_parameters example

Workflow - Order Shipped - Enable, Save and Run#

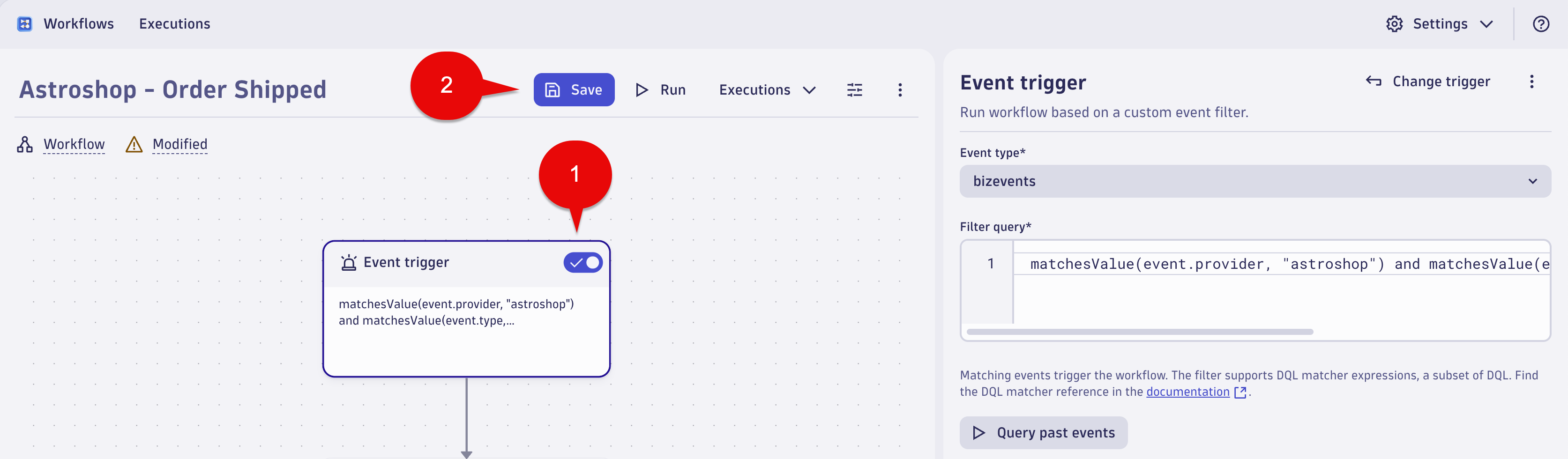

Enable the Event Trigger flow.

Select Save button.

Enable and Save Workflow

When you run a workflow in an environment for the first time, Dynatrace asks to allow the AutomationEngine to run workflows for you.

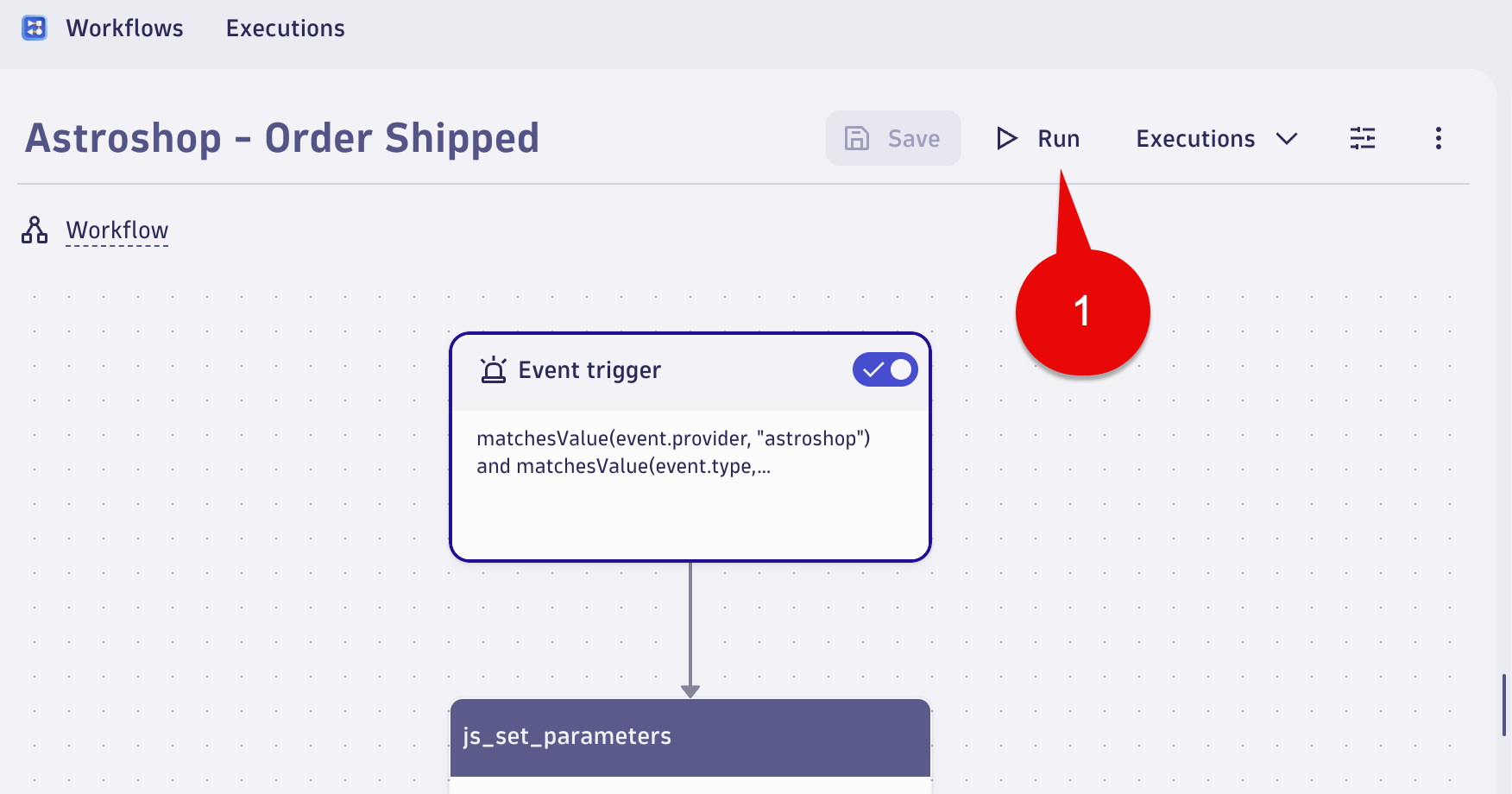

Click the Run button.

Run Workflow

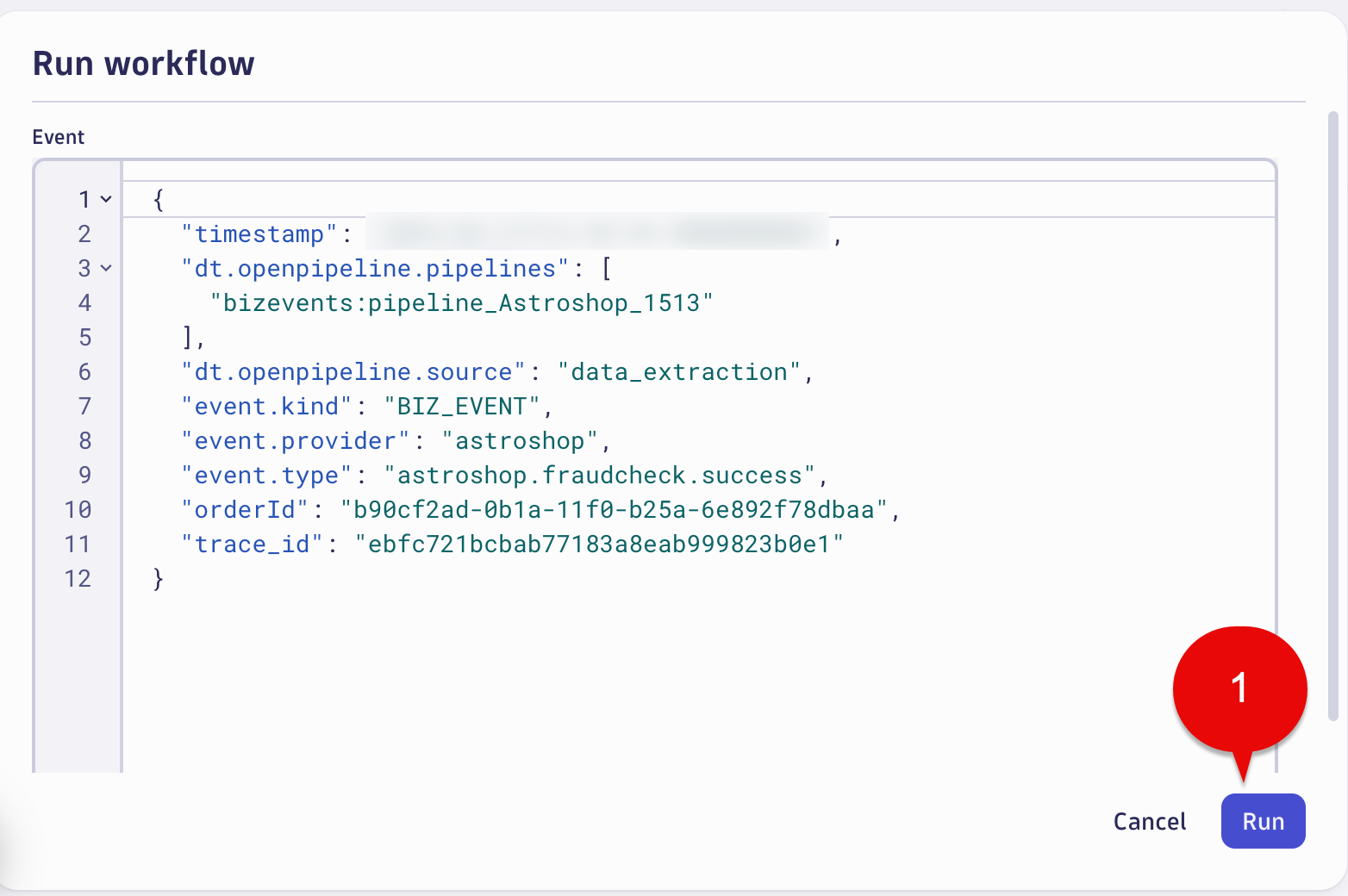

In the Run workflow window, click the Run button.

Run Workflow 2

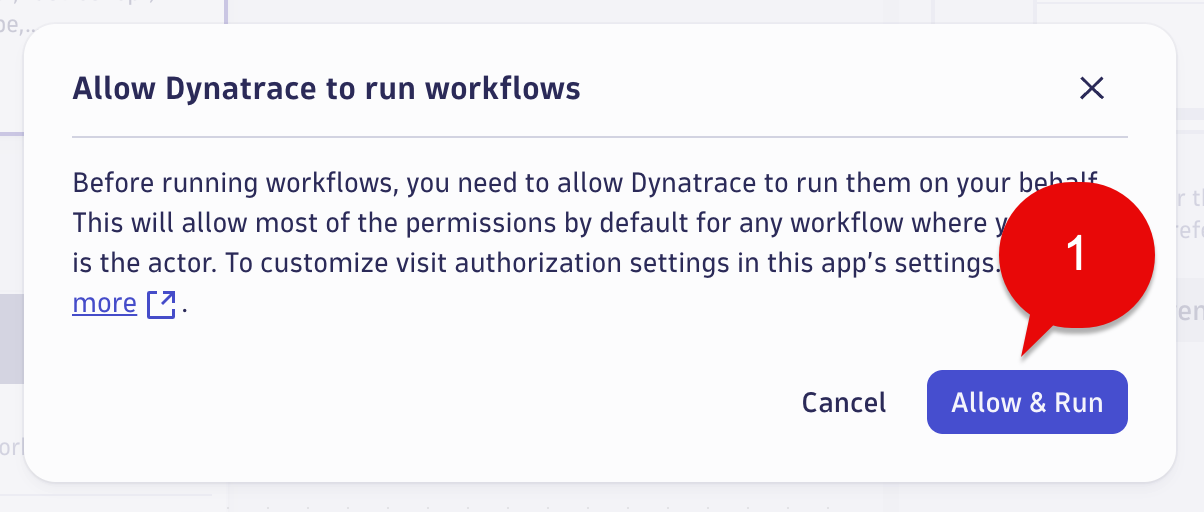

Click Allow and Run button.

Run Workflow Allow

Workflow - Order Shipped - Review#

We will review the task(s)/action(s) of the Astroshop - Order Shipped Workflow. As discussed above, the workflow is sending simulated events that represent the Astroshop Shipping system when an Order is shipped.

The most important task/action of this workflow is insert_biz_event task/action. The included parameters match the required paramaters as if your customer was sending Business Events from their Environment/System to Dynatrace Business Events API.

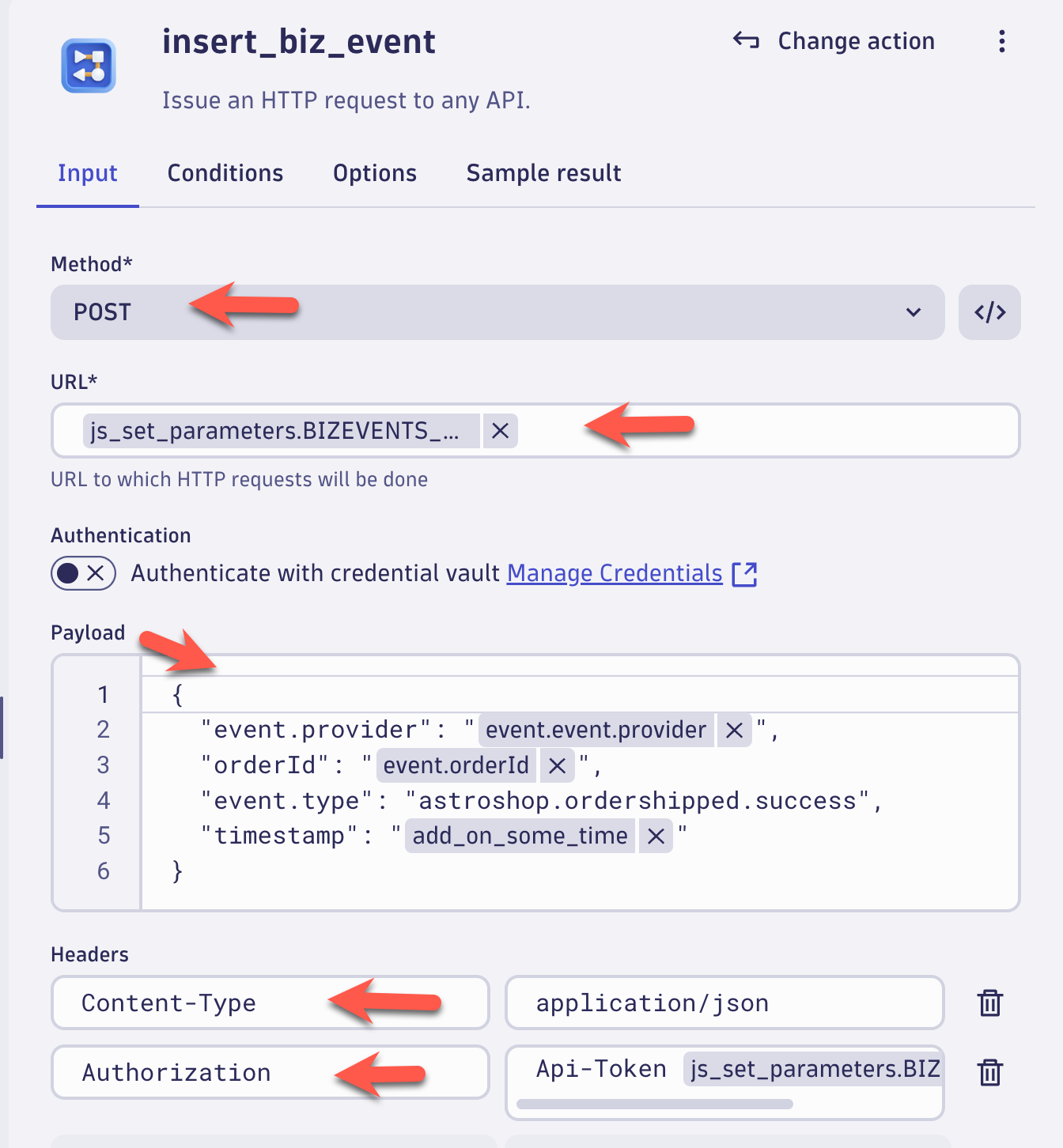

Below are the settings used in the insert_biz_event task/action of the Astroshop - Order Shipped workflow.

Enable and Save Workflow

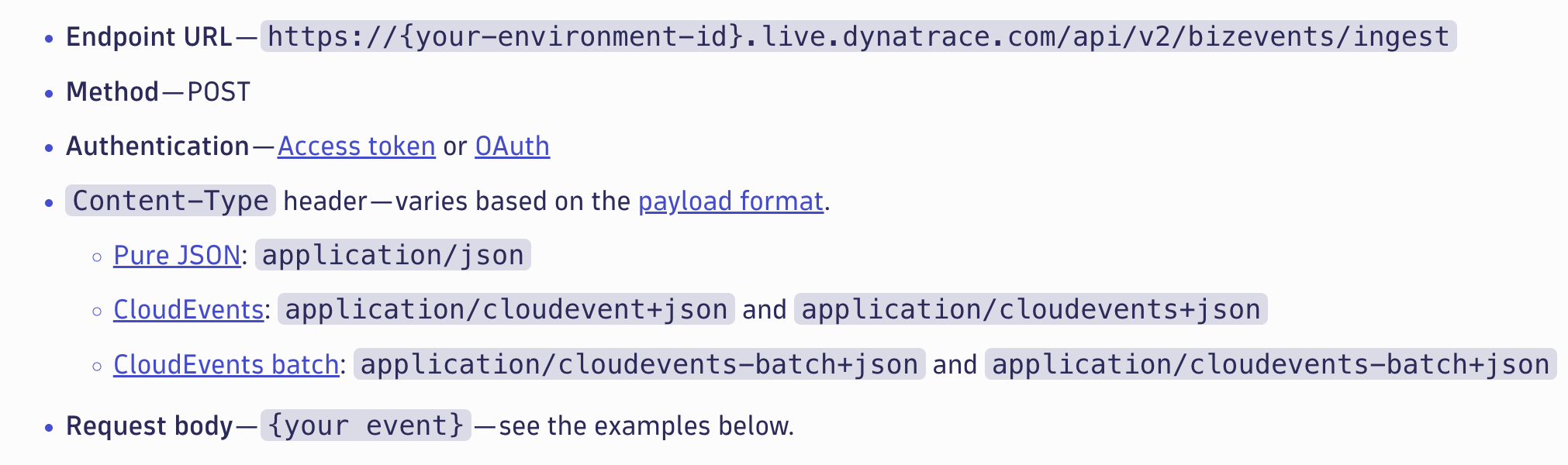

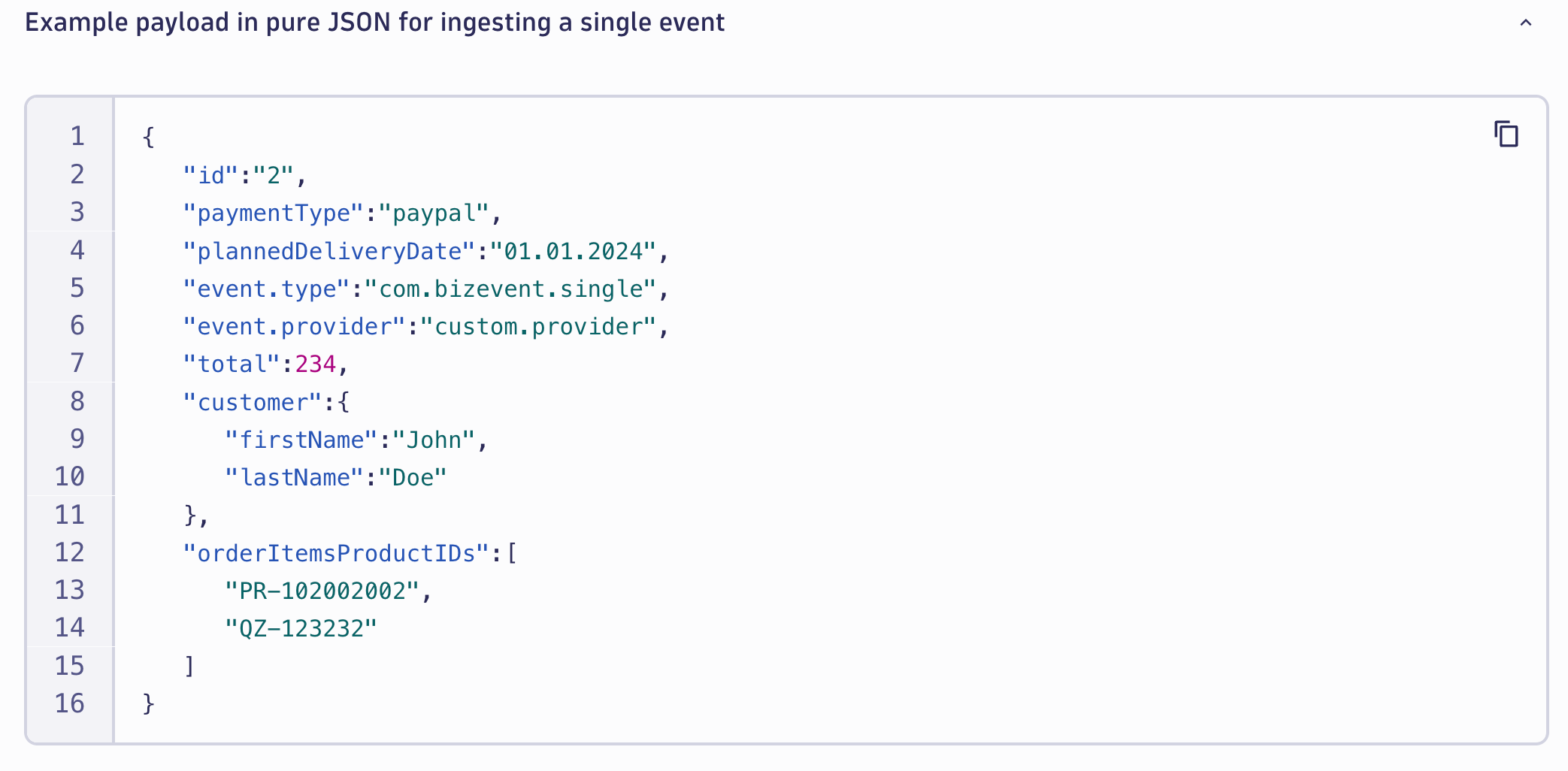

Business Events API Documenation

Enable and Save Workflow

Enable and Save Workflow

Conclusion#

We have completed the step of using a Dynatrace Workflow to send simulated events that represent the Astroshop Shipping system when an Order Shipped events occur. The next section will validate the data.

Data Validation#

In this section of the lab we will validate the data for the Order Shipped step of the Order to Shipped business process.

Query Business Events in Dynatrace#

Using a Notebook execute the below DQL query which retrieves the business events for astroshop.ordershipped.success step.

DQL:

fetch bizevents
| filter event.provider == "astroshop" and event.type == "astroshop.ordershipped.success"
| fields timestamp, event.provider, event.type, orderId
| sort timestamp desc

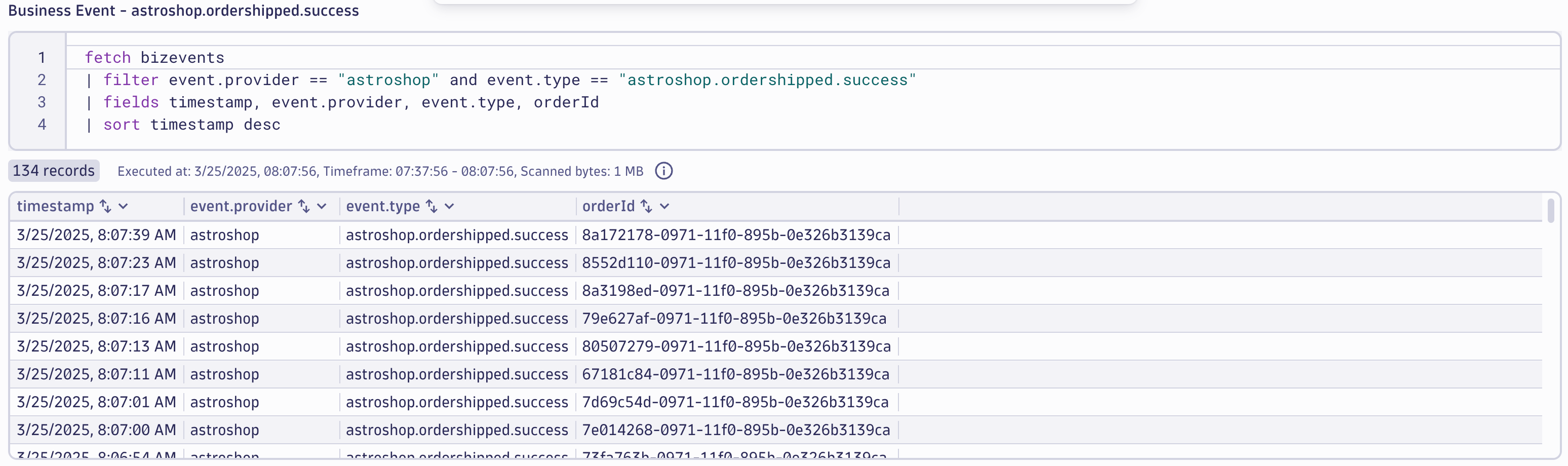

Result:

DQL Query

Conclusion#

We have completed data validation for the Order Shipped step of the Order to Shipped business process.

Continue#

In the next section, we'll use the captured Business Events to build a Business Metric utilizing OpenPipeline.
