SSH & Host setup#

1. SSH Connection#

1.1 Connect via SSH on the Terminal#

A public IP has been assigned to your server, let's connect to it via SSH. Let's say I received the public IP 18.171.190.13 and I saved my PEM file in the location /Users/luke.skywalker/.aws/keys/remote-environment.pem.

The SSH command for logging in looks like this ssh -i {identity-file-location} {user}@{ip}

For this example is:

ssh -i /Users/luke.skywalker/.aws/keys/remote-environment.pem ubuntu@18.171.190.13
since we don't want to type this every time, let's configure the SSH Connection.

1.2 Configure SSH Connection#

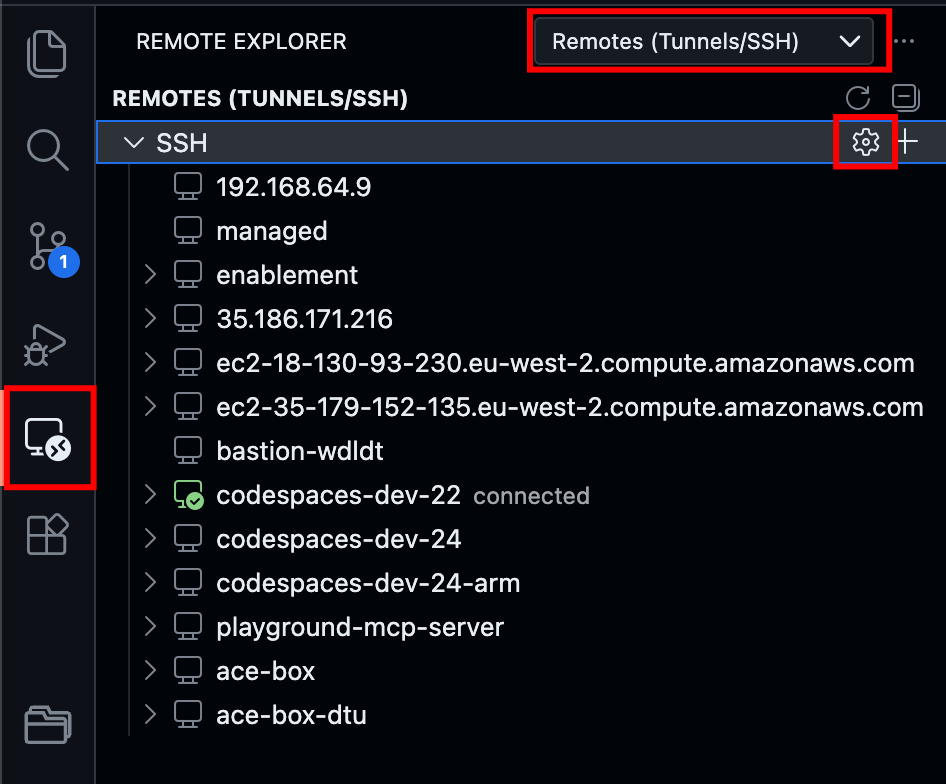

remoteexplorer

  • Open Visual Studio Code
  • On the left panel you'll see a Remote Explorer icon, click on it.
  • Select Remotes (Tunnels/SSH)
  • Click on the Wheel ⚙️ icon
  • A prompt will appear, which configuration file you want to update, I select /Users/luke.skywalker/.ssh/config

  • The file will open in VS Code, add the following entry for the SSH client

    Users/luke.skywalker/.ssh/config
    # My Remote Environment
Host onboarding
HostName 18.171.190.131
User ubuntu
IdentityFile /Users/luke.skywalker/.aws/keys/remote-environment.pem
    For ease of use the server name will be called onboarding. This name will resolve only locally. We assign an IP address to that name, a username and the identity file.

  • Save the file and test the connection.

1.3 Test SSH Connection#

In a terminal type:

ssh onboarding
If you configured correctly, you'll be able to connect to the server successfully. You can also do ssh onboarding -v to debug what the SSH Client is doing and from which files it is getting the configuration to connect to that server.

1.4 Connect using VS Code#

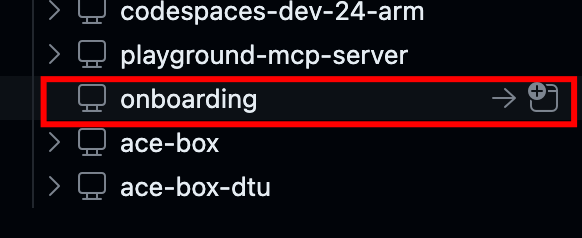

alt text

On the panel now you'll see a server called onboarding, if you click on the arrow it will use the instance of VS Code to connect to it, if you click in the + sign, it will create a new VS Code instance and connect to it.

It will look something like this:

alt text

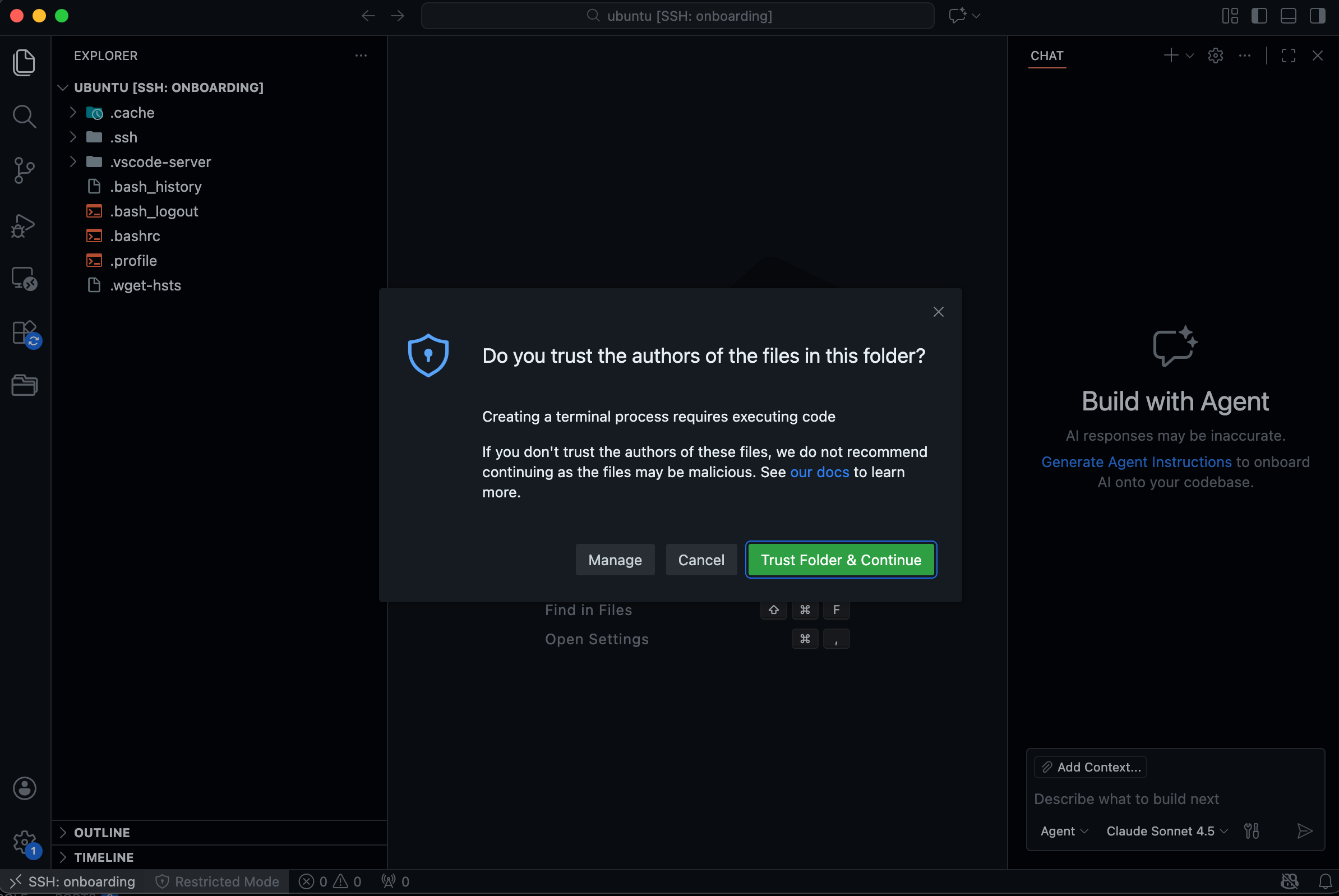

Trust the author and the contents of the server - after all it's your own playground ;)

Next, on the left handside, in the Explorer, click on Open Folder, select your Home directory, which is /home/ubuntu/.

Now you have within VS Code full access to your remote environment! This will boost your onboarding learning experience.

2. Prepare Host#

We are connecting to a new LTS Ubuntu server, let's install the tools to run the enablement environment.

2.1 Clone the repository#

Once you shell into the host, open a new terminal and clone the repository.

git clone https://github.com/dynatrace-wwse/remote-environment

This will clone the repo under /home/ubuntu/remote-environment

2.2 Install DevTools#

cd remote-environment
source .devcontainer/util/source_framework.sh && checkHost

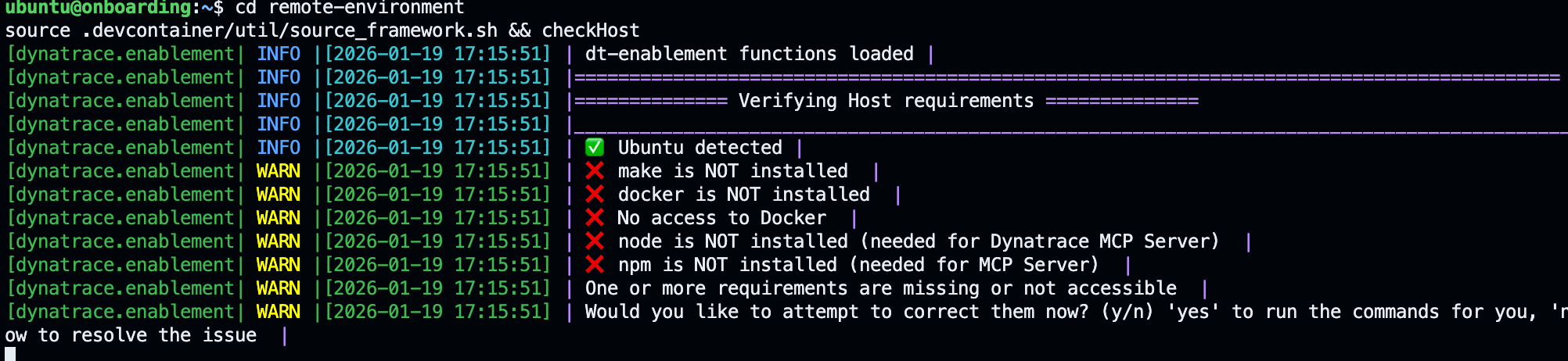

Check Host

Type y to install all requirements for the framework.

2.3 Give your Host a friendly hostname (optional)#

Since we need to reboot the OS to make the changes effective, specially the access to Docker, let's also give the hostname a friendly name to our server, this name will reflect itself later in Dynatrace when we monitor the infrastructure.

sudo hostnamectl set-hostname onboarding

2.4 Reboot Host#

sudo reboot
This command will reboot the server. Make sure you have saved your work since it'll close the SSH connection and you might lose unsaved work on the server. While the server reboot, let's fetch the Kubernetes Monitoring configuration from your Dynatrace Tenant.

Public IP of your AWS instance does not change with a reboot

Rebooting an EC2 instance will allocate the same public IP as before, only if you stop it and start it again, then AWS will fetch a new public IP for your server and you'll have to reconfigure your SSH connection.

2.5 Get Dynakube and Tokens#

While the server is being rebooted (is very quick actually just 2 to 3 minutes) let's fetch the Dynakube and Tokens that we'll use later.

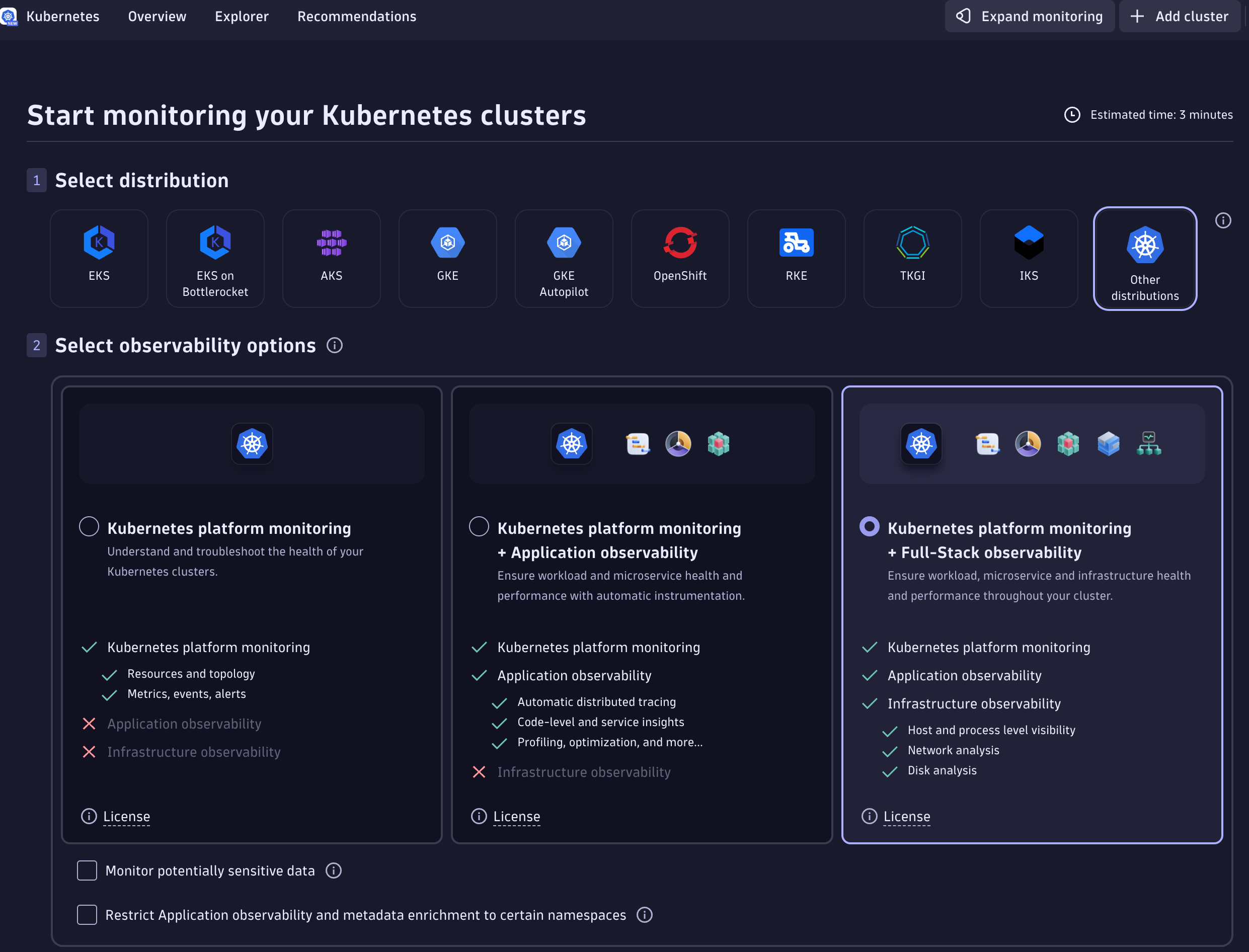

Go to the Kubernetes App in your Dynatrace environment, on the right hand side click on + Add Cluster

Select:

  1. Other distributions
  2. Kubernetes platform monitoring + Full-Stack observability
  3. Enable Log management and analytics
  4. Enable Extensions
  5. Enable Telemetry endpoints for data ingest remote
  6. Give the cluster a friendly name onboarding or remote-environment
  7. For Networkzone and Hostgroup give also the same name onboarding Add Kubernetes cluster

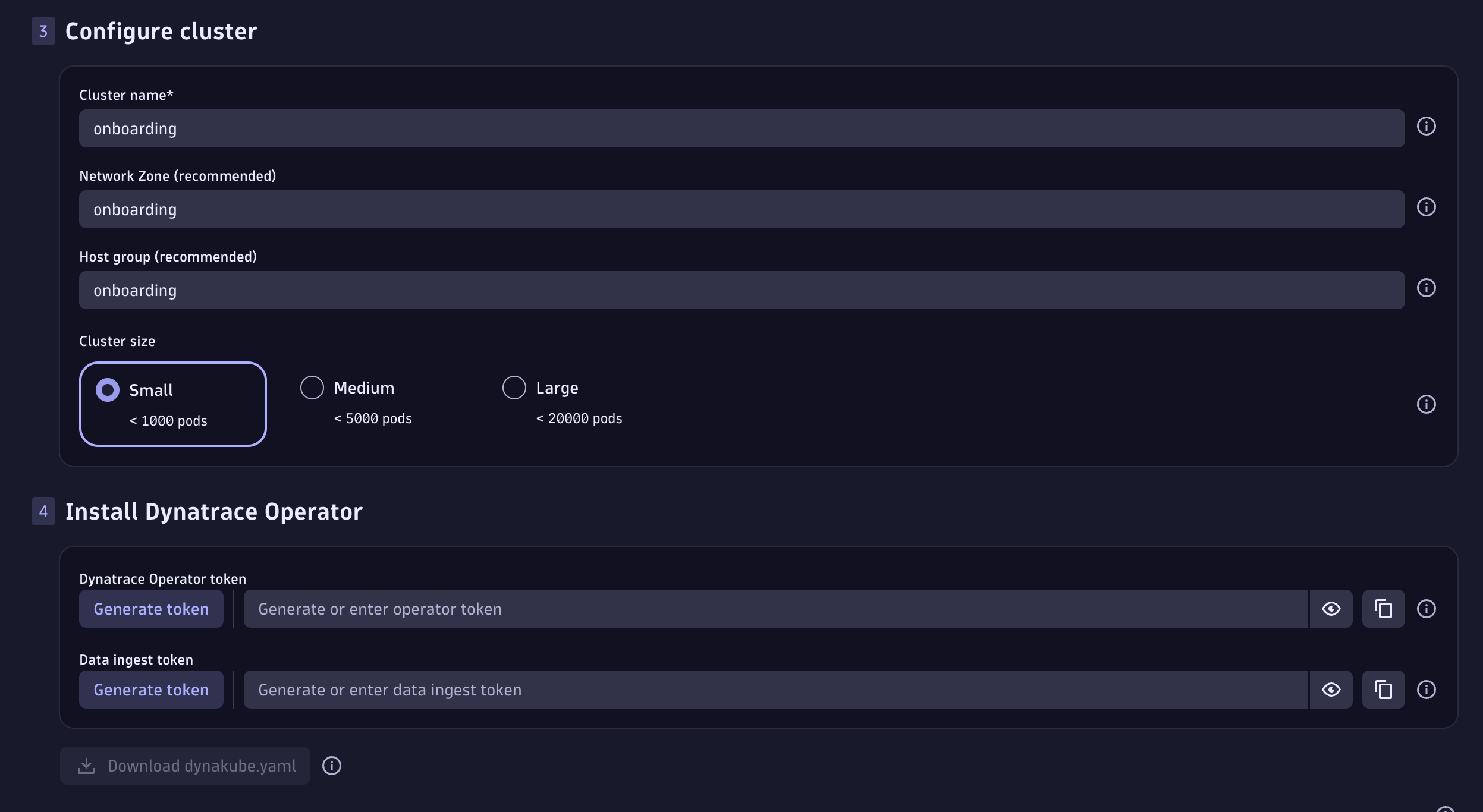

  8. Generate a Dynatrace Operator token and a Data Ingest token

Copy & save the tokens to your clipboard 📋

Save the Operator Token and Data Ingest Token to your clipboard

Dynakube Tokens - 💾 Download the Dynakube.yamlfile

2.6 Set the environment variables#

Set up secrets and environment variables

Connect back to the Host using VS Code.

Open Folder remote-environment

When you connect back to the host, is important that you open the Folder remote-directory, this way VS Code will understand the configuration that is inside .vscode and you'll be able to shell into the container easily.

Create .env file for the secrets

Inside the remote-environment create an .env file in .devcontainer/runlocal/.env

Sample .env file

You can copy and paste the following sample into .devcontainer/runlocal/.env. Your environment file should look similar to this:

.devcontainer/runlocal/.env
1
2
3
4
5
6
7
8
9
# Environment variables as defined as secrets in the devcontainer.json file
# Dynatrace Tenant
DT_ENVIRONMENT=https://abc123.sprint.apps.dynatracelabs.com

# Dynatrace Operator Token
DT_OPERATOR_TOKEN=dt0c01.XXXXXX

# Dynatrace Ingest Token
DT_INGEST_TOKEN=dt0c01.YYYYYY

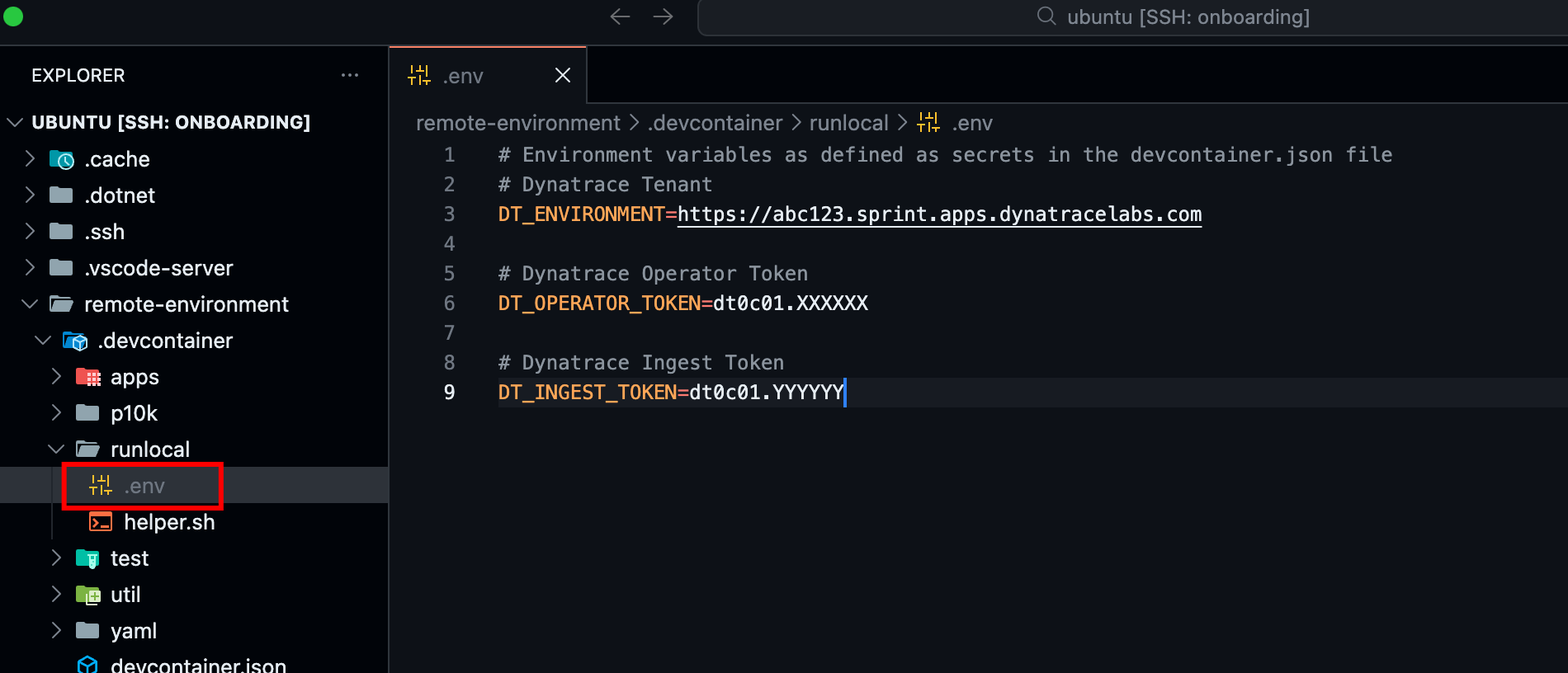

In VS Code create new .env file

Go to remote-environment > .devcontainer > runlocal > new File (.env), paste the contents of the sample .env file and reflect your tenant and tokens. alt text
