OpenTelemetry Capstone#

Capstone Module

What is a Capstone? A hands-on, culminating learning experience where participants apply the knowledge and skills they've gained throughout a course or program to solve a real-world problem, create a project, or present a comprehensive solution.

In this lab module we'll utilize multiple OpenTelemetry Collectors to collect application traces/spans, log records, and metric data points generated by OpenTelemetry, from a Kubernetes cluster and ship them to Dynatrace. This is a capstone lab that utilizes the concepts of the previous Kubernetes OpenTelemetry lab modules.

Lab tasks:

Deploy 4 OpenTelemetry Collectors
Configure OpenTelemetry Collector service pipeline for data enrichment
Analyze metrics, traces, and logs in Dynatrace
Observe OpenTelemetry Collector health in Dynatrace

Learn More

Prerequisites#

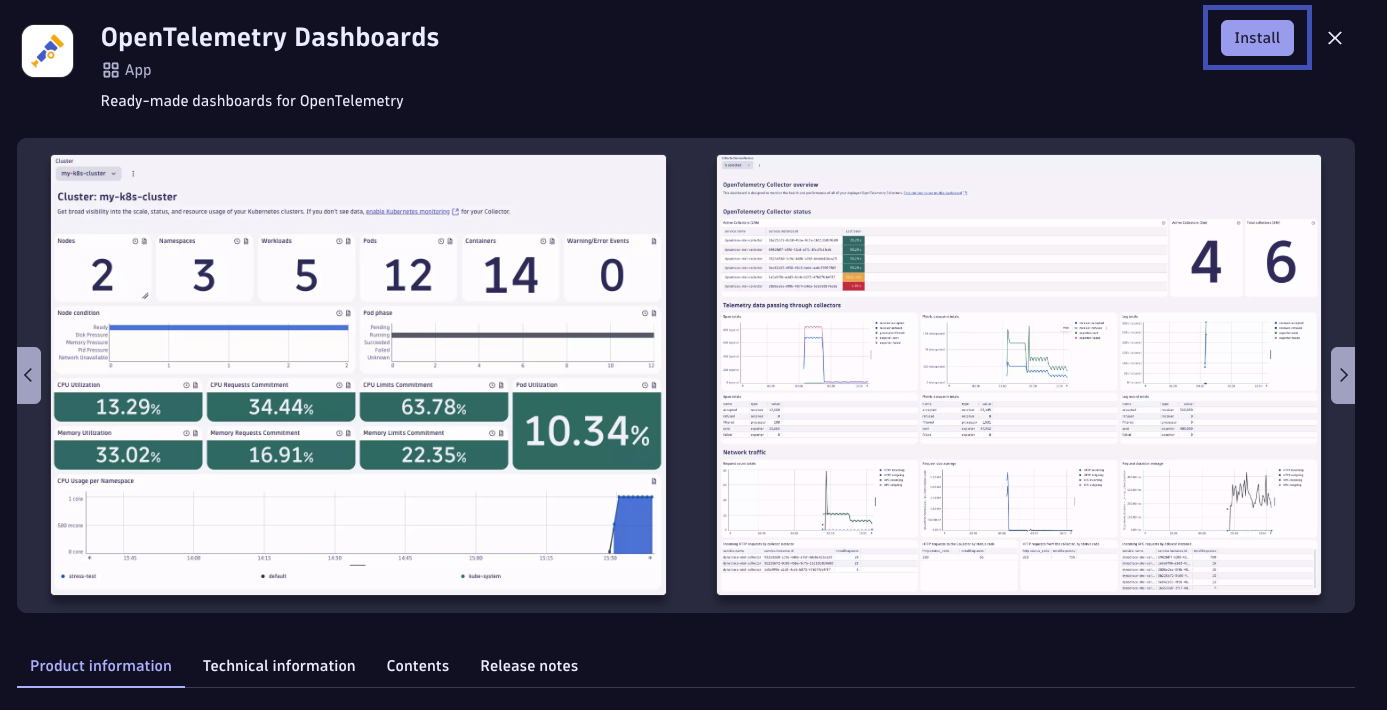

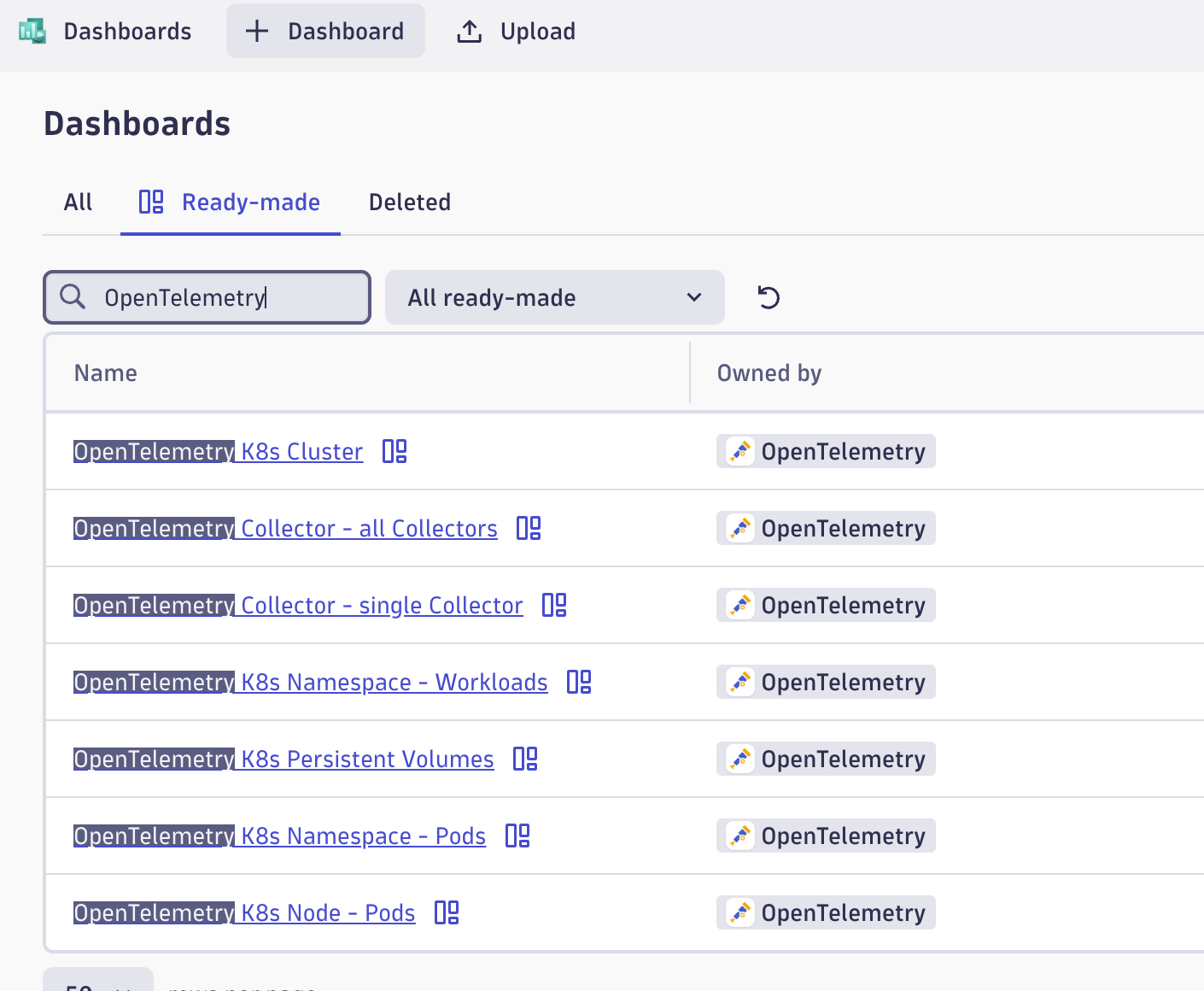

Import Dashboards into Dynatrace

astronomy-shop dashboard

collector health dashboard

Define workshop user variables In your Github Codespaces Terminal set the environment variables:

Sprint Environment

Are you using a Sprint environment for your Dynatrace tenant? If so, then use export DT_ENDPOINT=https://{your-environment-id}.sprint.dynatracelabs.com/api/v2/otlp instead of the live version below.

export DT_ENDPOINT=https://{your-environment-id}.live.dynatrace.com/api/v2/otlp
export DT_API_TOKEN={your-api-token}
export NAME=<INITIALS>-k8s-otel-o11y

Move into the metrics module directory

Command:

cd $BASE_DIR/lab-modules/dt-k8s-otel-o11y-capstone

Clean Up Previous Deployments

Delete dynatrace namespace and all previous deployments

Command:

kubectl delete ns dynatrace

OpenTelemetry Operator and Role Based Access#

Deploy OpenTelemetry Operator

Create dynatrace namespace

Command:

kubectl create namespace dynatrace

Sample output:

namespace/dynatrace created

Create dynatrace-otelcol-dt-api-credentials secret

The secret holds the API endpoint and API token that OpenTelemetry data will be sent to.

Command:

kubectl create secret generic dynatrace-otelcol-dt-api-credentials --from-literal=DT_ENDPOINT=$DT_ENDPOINT --from-literal=DT_API_TOKEN=$DT_API_TOKEN -n dynatrace

Sample output:

secret/dynatrace-otelcol-dt-api-credentials created

Deploy cert-manager, pre-requisite for opentelemetry-operator

Cert Manager Documentation

Command:

kubectl apply -f opentelemetry/cert-manager.yaml

Sample output:

namespace/cert-manager created\ customresourcedefinition.apiextensions.k8s.io/certificaterequests.cert-manager.io created\ customresourcedefinition.apiextensions.k8s.io/certificates.cert-manager.io created\ ...\ validatingwebhookconfiguration.admissionregistration.k8s.io/cert-manager-webhook created

Wait 30-60 seconds for cert-manager to finish initializing before continuing.

Deploy opentelemetry-operator

The OpenTelemetry Operator will deploy and manage the custom resource OpenTelemetryCollector deployed on the cluster.

Command:

kubectl apply -f opentelemetry/opentelemetry-operator.yaml

Sample output:

namespace/opentelemetry-operator-system created\ customresourcedefinition.apiextensions.k8s.io/instrumentations.opentelemetry.io created\ customresourcedefinition.apiextensions.k8s.io/opampbridges.opentelemetry.io created\ ...\ validatingwebhookconfiguration.admissionregistration.k8s.io/opentelemetry-operator-validating-webhook-configuration configured

Wait 30-60 seconds for opentelemetry-operator-controller-manager to finish initializing before continuing.

Validate that the OpenTelemetry Operator components are running.

Command:

kubectl get pods -n opentelemetry-operator-system

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
opentelemetry-operator-controller-manager-5d746dbd64-rf9st	2/2	Running	0	1m

Create clusterrole with read access to Kubernetes objects

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-collector-k8s-clusterrole
rules:
  - apiGroups: ['']
    resources: ['events', 'namespaces', 'namespaces/status', 'nodes', 'nodes/spec', 'nodes/stats', 'nodes/proxy', 'pods', 'pods/status', 'replicationcontrollers', 'replicationcontrollers/status', 'resourcequotas', 'services']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['apps']
    resources: ['daemonsets', 'deployments', 'replicasets', 'statefulsets']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['extensions']
    resources: ['daemonsets', 'deployments', 'replicasets']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['batch']
    resources: ['jobs', 'cronjobs']
    verbs: ['get', 'list', 'watch']
  - apiGroups: ['autoscaling']
    resources: ['horizontalpodautoscalers']
    verbs: ['get', 'list', 'watch']

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole.yaml

Sample output:

clusterrole.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole created

Create clusterrolebinding for OpenTelemetry Collector service accounts

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-collector-k8s-clusterrole-crb
subjects:
- kind: ServiceAccount
  name: dynatrace-deployment-collector
  namespace: dynatrace
- kind: ServiceAccount
  name: dynatrace-daemonset-collector
  namespace: dynatrace
- kind: ServiceAccount
  name: contrib-deployment-collector
  namespace: dynatrace
- kind: ServiceAccount
  name: contrib-daemonset-collector
  namespace: dynatrace
roleRef:
  kind: ClusterRole
  name: otel-collector-k8s-clusterrole
  apiGroup: rbac.authorization.k8s.io

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-crb.yaml

Sample output:

clusterrolebinding.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-crb created

Dynatrace Deployment Collector#

OpenTelemetry Collector - Dynatrace Distro (Deployment)

Dynatrace Documentation

Receivers: otlp, prometheus

MODULE	DT DEPLOY	DT DAEMON	CON DEPLOY	CON DAEMON
otlp	- [x]	- [ ]	- [x]	- [ ]
prometheus	- [x]	- [x]	- [x]	- [x]
filelog	- [ ]	- [x]	- [ ]	- [ ]
kubeletstats	- [ ]	- [ ]	- [ ]	- [x]
k8s_cluster	- [ ]	- [ ]	- [x]	- [ ]
k8sobjects	- [ ]	- [ ]	- [x]	- [ ]

Deploy OpenTelemetry Collector CRD

Dynatrace Documentation

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: dynatrace-deployment
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "deployment"
  image: "ghcr.io/dynatrace/dynatrace-otel-collector/dynatrace-otel-collector:latest"

Command:

kubectl apply -f opentelemetry/collector/dynatrace/otel-collector-dynatrace-deployment-crd.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-deployment created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-deployment-collector-796546fbd6-kqflf	1/1	Running	0	1m

Dynatrace Daemonset Collector#

OpenTelemetry Collector - Dynatrace Distro (Daemonset)

Dynatrace Documentation

Receivers: filelog, prometheus

MODULE	DT DEPLOY	DT DAEMON	CON DEPLOY	CON DAEMON
otlp	- [x]	- [ ]	- [x]	- [ ]
prometheus	- [x]	- [x]	- [x]	- [x]
filelog	- [ ]	- [x]	- [ ]	- [ ]
kubeletstats	- [ ]	- [ ]	- [ ]	- [x]
k8s_cluster	- [ ]	- [ ]	- [x]	- [ ]
k8sobjects	- [ ]	- [ ]	- [x]	- [ ]

Deploy OpenTelemetry Collector CRD

Dynatrace Documentation

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: dynatrace-daemonset
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "daemonset"
  image: "ghcr.io/dynatrace/dynatrace-otel-collector/dynatrace-otel-collector:latest"

Command:

kubectl apply -f opentelemetry/collector/dynatrace/otel-collector-dynatrace-daemonset-crd.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-daemonset created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-daemonset-collector-h69pz	1/1	Running	0	1m

Contrib Deployment Collector#

OpenTelemetry Collector - Contrib Distro (Deployment)

Dynatrace Documentation

Receivers: otlp, prometheus, k8s_cluster, k8sobjects

MODULE	DT DEPLOY	DT DAEMON	CON DEPLOY	CON DAEMON
otlp	- [x]	- [ ]	- [x]	- [ ]
prometheus	- [x]	- [x]	- [x]	- [x]
filelog	- [ ]	- [x]	- [ ]	- [ ]
kubeletstats	- [ ]	- [ ]	- [ ]	- [x]
k8s_cluster	- [ ]	- [ ]	- [x]	- [ ]
k8sobjects	- [ ]	- [ ]	- [x]	- [ ]

Deploy OpenTelemetry Collector CRD

OpenTelemetry Documentation

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: contrib-deployment
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "deployment"
  image: "otel/opentelemetry-collector-contrib:0.103.0"

Command:

kubectl apply -f opentelemetry/collector/contrib/otel-collector-contrib-deployment-crd.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/contrib-deployment created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
contrib-deployment-collector-74dfc4d9f4-s97k6	1/1	Running	0	1m

Contrib Daemonset Collector#

OpenTelemetry Collector - Contrib Distro (Daemonset)

Receivers: prometheus, kubeletstats

MODULE	DT DEPLOY	DT DAEMON	CON DEPLOY	CON DAEMON
otlp	- [x]	- [ ]	- [x]	- [ ]
prometheus	- [x]	- [x]	- [x]	- [x]
filelog	- [ ]	- [x]	- [ ]	- [ ]
kubeletstats	- [ ]	- [ ]	- [ ]	- [x]
k8s_cluster	- [ ]	- [ ]	- [x]	- [ ]
k8sobjects	- [ ]	- [ ]	- [x]	- [ ]

Deploy OpenTelemetry Collector CRD

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: contrib-daemonset
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "daemonset"
  image: "otel/opentelemetry-collector-contrib:0.103.0"

Command:

kubectl apply -f opentelemetry/collector/contrib/otel-collector-contrib-daemonset-crd.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/contrib-daemonset created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
contrib-daemonset-collector-d92tw	1/1	Running	0	1m

Configure Astronomy Shop OTLP Export#

config:
    receivers:
      otlp:
        protocols:
          http:
            # Since this collector needs to receive data from the web, enable cors for all origins
            # `allowed_origins` can be refined for your deployment domain
            cors:
              allowed_origins:
                - "http://*"
                - "https://*"
      httpcheck/frontendproxy:
        targets:
          - endpoint: 'http://{{ include "otel-demo.name" . }}-frontendproxy:8080'

    exporters:
      # Dynatrace OTel Collector
      otlphttp/dynatrace:
        endpoint: http://dynatrace-deployment-collector.dynatrace.svc.cluster.local:4318

    processors:
      resource:
        attributes:
        - key: service.instance.id
          from_attribute: k8s.pod.uid
          action: insert

    connectors:
      spanmetrics: {}

    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [memory_limiter, resource, batch]
          exporters: [spanmetrics, otlphttp/dynatrace]
        metrics:
          receivers: [httpcheck/frontendproxy, otlp, spanmetrics]
          processors: [memory_limiter, resource, batch]
          exporters: [otlphttp/dynatrace]
        logs:
          processors: [memory_limiter, resource, batch]
          exporters: [otlphttp/dynatrace]

Export OpenTelemetry data from astronomy-shop to OpenTelemetry Collector - Dynatrace Distro (Deployment)

Customize astronomy-shop helm values

default:
  # List of environment variables applied to all components
  env:
    - name: OTEL_SERVICE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: "metadata.labels['app.kubernetes.io/component']"
    - name: OTEL_COLLECTOR_NAME
      value: '{{ include "otel-demo.name" . }}-otelcol'
    - name: OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE
      value: cumulative
    - name: OTEL_RESOURCE_ATTRIBUTES
      value: 'service.name=$(OTEL_SERVICE_NAME),service.namespace=NAME_TO_REPLACE,service.version={{ .Chart.AppVersion }}'

service.namespace=NAME_TO_REPLACE\ service.namespace=INITIALS-k8s-otel-o11y

Command:

sed -i "s,NAME_TO_REPLACE,$NAME," astronomy-shop/collector-values.yaml

Update astronomy-shop OpenTelemetry Collector export endpoint via helm

Command:

helm upgrade astronomy-shop open-telemetry/opentelemetry-demo --values astronomy-shop/collector-values.yaml --namespace astronomy-shop --version "0.31.0"

Sample output:

NAME: astronomy-shop\ LAST DEPLOYED: Thu Jun 27 20:58:38 2024\ NAMESPACE: astronomy-shop\ STATUS: deployed\ REVISION: 2

Validate and Analyze Data in Dynatrace#

Analyze metrics, traces, and logs in Dynatrace dashboard

astronomy-shop dashboard

OpenTelemetry Collector Health#

Observe OpenTelemetry Collector health in Dynatrace#

OpenTelemetry Documentation

Add dynatrace.otel.collector to Dynatrace's metric attribute allow list
Enable OpenTelemetry Collector health metrics (Prometheus)
Modify OpenTelemetry Collector health metrics for Dynatrace support

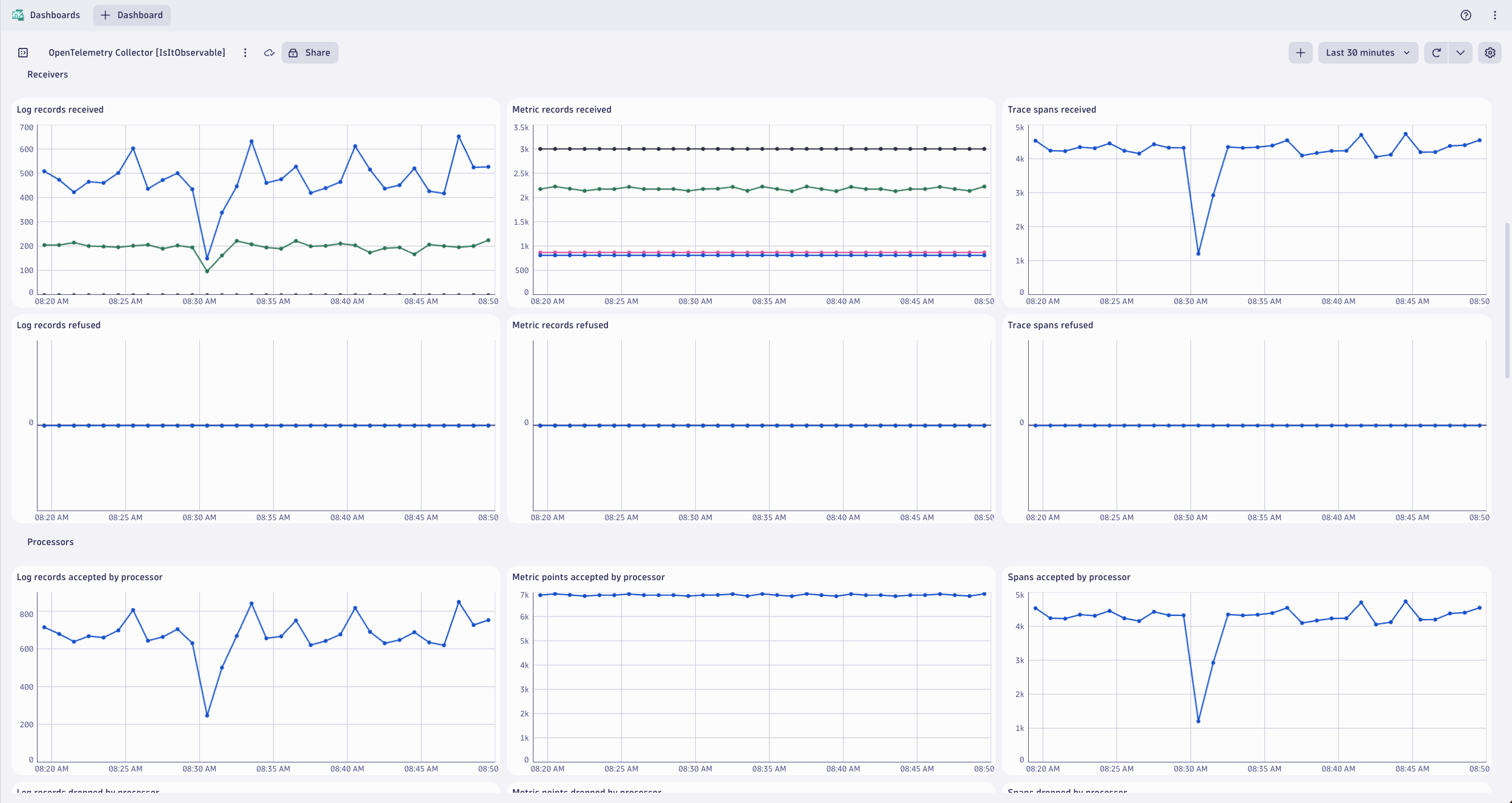

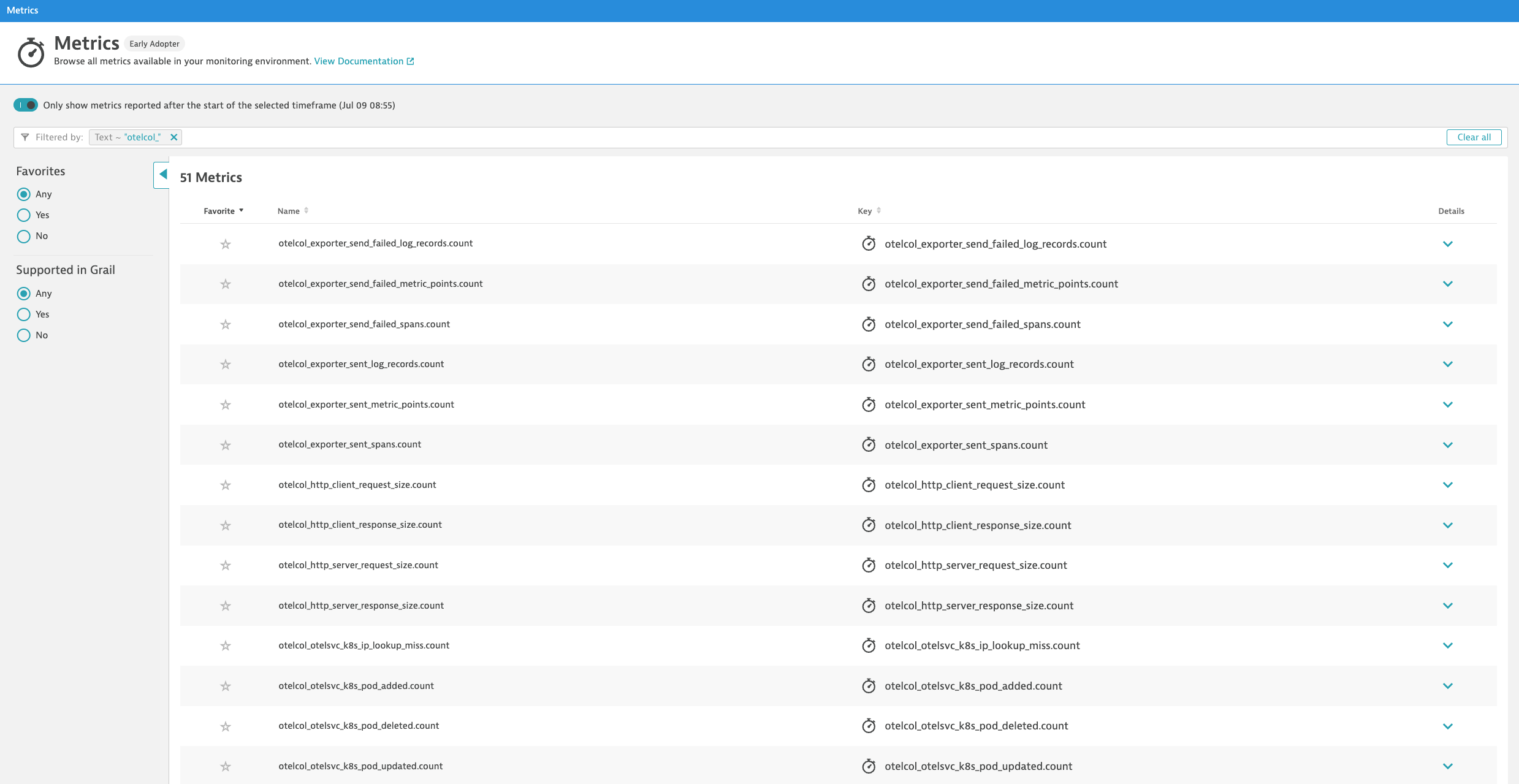

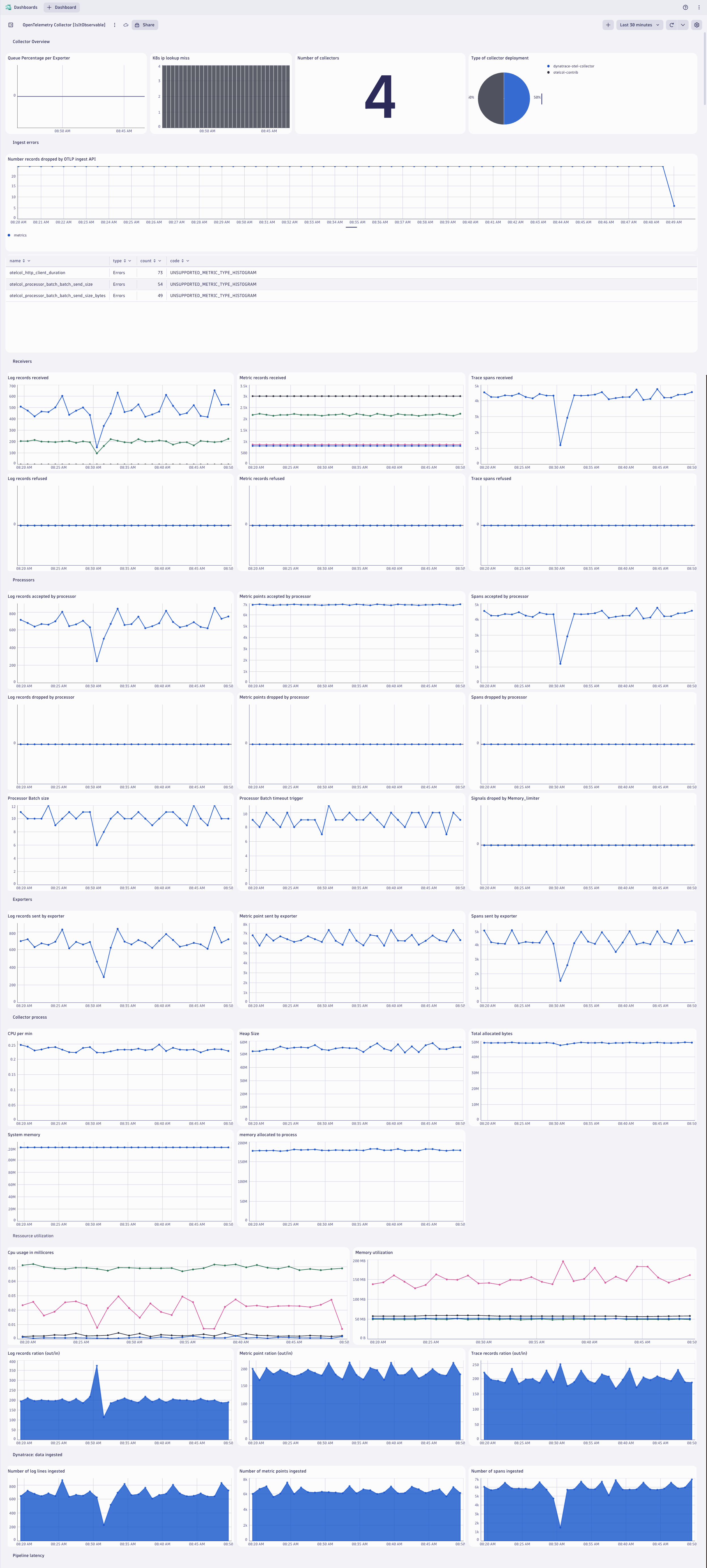

View OpenTelemetry Collector health metrics in Dynatrace

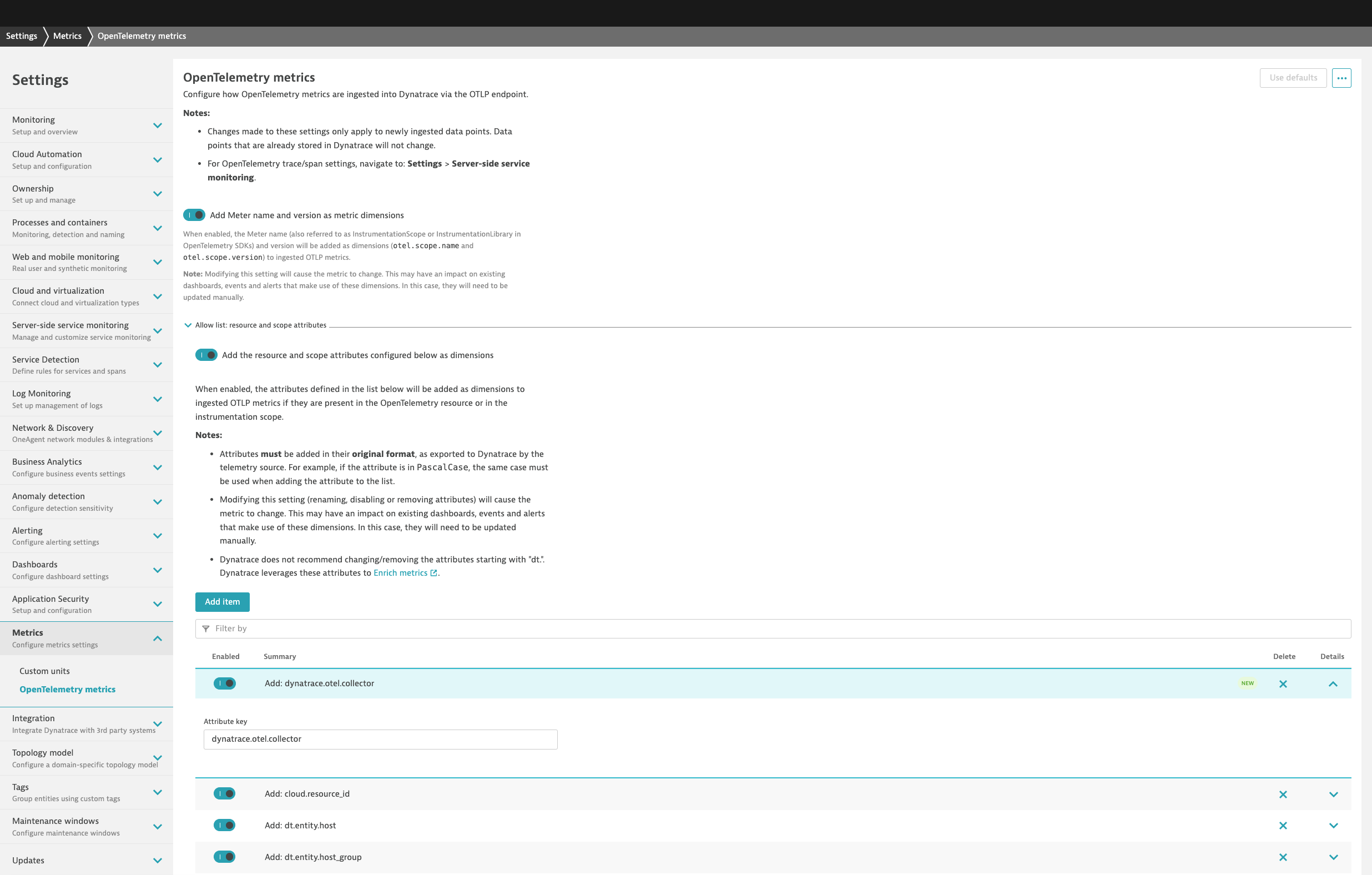

Add dynatrace.otel.collector to Dynatrace's metric attribute allow list

By default, the metric attribute dynatrace.otel.collector is dropped by Dynatrace. Add it to the allow list in your Dynatrace tenant:

Dynatrace Documentation dt otel metrics add collector attribute

Enable OpenTelemetry Collector health metrics (Prometheus)

Enable metric generation for Collector CRD:

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  namespace: dynatrace
spec:
  observability:
    metrics:
      enableMetrics: true

Enable publishing of metric generation to Prometheus endpoint:

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  namespace: dynatrace
spec:
  env:
    - name: MY_POD_IP
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: status.podIP
  config: |
    receivers:

    processors:

    exporters:

    service:
      telemetry:
        metrics:
          level: "normal"
          address: ${MY_POD_IP}:8888

Enable scraping of metrics from Prometheus endpoint:

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  namespace: dynatrace
spec:
  config: |
    receivers:
      prometheus:
        config:
          scrape_configs:
          - job_name: opentelemetry-collector
            scrape_interval: 30s
            static_configs:
            - targets:
              - ${MY_POD_IP}:8888

    processors:
      batch:

    exporters:
      otlphttp/dynatrace:

    service:
      pipelines:
        metrics:
          receivers: [prometheus]
          processors: [batch]
          exporters: [otlphttp/dynatrace]

Modify OpenTelemetry Collector health metrics for Dynatrace support

Specific metric types are supported by Dynatrace:

Dynatrace Documentation

Convert unsupported cumulative sum metric types to delta type for Dynatrace support:

processors:
  cumulativetodelta: {}
service:
  pipelines:
  metrics:
    receivers: [prometheus]
    processors: [cumulativetodelta,batch]
    exporters: [otlphttp/dynatrace]

Histogram Metric Support

In a recent update, Dynatrace added support for histogram metrics. This configuration is no longer required. However, it may still be useful to see how this can be accomplished.

Filter out (remove) unsupported histogram metric types for Dynatrace support:

processors:
  filter/histogram:
    error_mode: ignore
    metrics:
      metric:
      - 'type == METRIC_DATA_TYPE_HISTOGRAM'

service:
  pipelines:
  metrics:
    receivers: [prometheus]
    processors: [filter/histogram,batch]
    exporters: [otlphttp/dynatrace]

View OpenTelemetry Collector health metrics in Dynatrace

Prometheus metrics from the OpenTelemetry Collector have the otelcol_ prefix and can be found in the Dynatrace metric browser: dt_otelcol_metric_list

Example dashboard for OpenTelemetry Collector health has been created by the IsItObservable team: dt_collector_health_dashboard_short

YouTube Video

Wrap Up#

What You Learned Today#

By completing this lab, you've successfully deployed the OpenTelemetry Collector to collect metrics, traces, and logs from Kubernetes and ship them to Dynatrace for analysis.

The Dynatrace Distro of OpenTelemetry Collector includes supported modules needed to ship telemetry to Dynatrace
- The otlp receiver receives metrics, traces, and logs from OpenTelemetry exporters via gRPC/HTTP
- The filelog receiver scrapes logs from the Node filesystem and parses the contents
- The prometheus receiver scrapes metric data exposed by Pod Prometheus endpoints
The Contrib Distro of OpenTelemetry Collector includes additional modules needed to ship telemetry to Dynatrace
- The kubeletstats receiver scrapes metrics from the local kubelet on the Node
- The k8s_cluster receiver queries the Kubernetes cluster API to retrieve metrics
- The k8sobjects receiver watches for Kubernetes events (and other resources) on the cluster
Dynatrace allows you to perform powerful queries and analysis of the telemetry data
Observing the health of the OpenTelemetry Collectors and data pipeline is critical
- The OpenTelemetry Collector exposes self-monitoring metrics in Prometheus format

Continue#

Now that the lab has been completed, let's summarize what we have learned and clean up our Codespaces instance.

Continue to cleanup
