OpenTelemetry Traces

In this lab module we'll utilize the OpenTelemetry Collector deployed as a Deployment (Gateway) to collect application traces/spans, generated by OpenTelemetry, from a Kubernetes cluster and ship them to Dynatrace.

Lab tasks:

1. Deploy OpenTelemetry Collector as a Deployment
2. Configure OpenTelemetry Collector service pipeline for span enrichment
3. Analyze application reliability via traces in Dynatrace

• Learn More

Prerequisites

Import Notebook into Dynatrace

Notebook

Import Dashboard into Dynatrace

Dashboard

Define workshop user variables

In your Github Codespaces Terminal set the environment variables:

Sprint Environment

Are you using a Sprint environment for your Dynatrace tenant? If so, then use export DT_ENDPOINT=https://{your-environment-id}.sprint.dynatracelabs.com/api/v2/otlp instead of the live version below.

export DT_ENDPOINT=https://{your-environment-id}.live.dynatrace.com/api/v2/otlp
export DT_API_TOKEN={your-api-token}
export NAME=<INITIALS>-k8s-otel-o11y

Move into the traces module directory

Command:

cd $REPO_PATH/lab-modules/opentelemetry-traces

OpenTelemetry Collector for Traces

Dynatrace Documentation

Distributed traces and their spans, generated by OpenTelemetry agents and SDKs, are exported from their origin to an otlp receiver. These traces/spans can be sent directly to Dynatrace, using the OTLP ingest API. However, it is highly recommended to use the OpenTelemetry Collector to process, filter, and manipulate the data first.

otlp Receiver

OpenTelemetry Documentation

Adding the otlp receiver allows us to receive telemetry from otel exporters, such as agents and other collectors.

config:
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318
    service:
      pipelines:
        traces:
          receivers: [otlp]
          processors: [batch]
          exporters: [otlphttp/dynatrace]

Deploy OpenTelemetry Collector Deployment

Dynatrace Documentation

The gateway collector deployment pattern consists of applications (or other collectors) sending telemetry signals to a single OTLP endpoint provided by one or more collector instances running as a standalone service (for example, a deployment in Kubernetes), typically per cluster, per data center or per region.

---
apiVersion: opentelemetry.io/v1beta1
kind: OpenTelemetryCollector
metadata:
  name: dynatrace-traces
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "deployment"
  image: "ghcr.io/dynatrace/dynatrace-otel-collector/dynatrace-otel-collector:latest"

Command:

kubectl apply -f opentelemetry/collector/traces/otel-collector-traces-crd-01.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-traces created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-traces-collector-559d5b9d77-ms24p	1/1	Running	0	1m

Export OpenTelemetry data from astronomy-shop to OpenTelemetry Collector - Dynatrace Distro

The astronomy-shop demo application has the OpenTelemetry agents and SDKs already instrumented. These agents and SDKs are generating traces (logs and metrics too) that are being exported to a Collector running within the astronomy-shop namespace bundled into the application deployment. We want these traces to be shipped to Dynatrace as well.

Customize astronomy-shop helm values

OpenTelemetry data created by agents and SDKs should include service.name and service.namespace attributes. We will make the service.namespace unique to our deployment using our NAME environment variable declared earlier, using a sed command on the Helm chart's values.yaml file.

default:
  # List of environment variables applied to all components
  env:
    - name: OTEL_SERVICE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: "metadata.labels['app.kubernetes.io/component']"
    - name: OTEL_COLLECTOR_NAME
      value: '{{ include "otel-demo.name" . }}-otelcol'
    - name: OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE
      value: cumulative
    - name: OTEL_RESOURCE_ATTRIBUTES
      value: 'service.name=$(OTEL_SERVICE_NAME),service.namespace=NAME_TO_REPLACE,service.version={{ .Chart.AppVersion }}'

service.namespace=NAME_TO_REPLACE\ service.namespace=INITIALS-k8s-otel-o11y

Command:

sed "s,NAME_TO_REPLACE,$NAME," astronomy-shop/collector-values.yaml > astronomy-shop/sed/collector-values.yaml

Update astronomy-shop OpenTelemetry Collector export endpoint via helm

Our collector-values.yaml contains new configurations for the application so that the astronomy-shop Collector includes exporters that ship to the Collectors deployed in the dynatrace namespace.

exporters:
  # Dynatrace OTel Collectors
  otlphttp/dttraces:
    endpoint: http://dynatrace-traces-collector.dynatrace.svc.cluster.local:4318
  otlphttp/dtlogs:
    endpoint: http://dynatrace-logs-collector.dynatrace.svc.cluster.local:4318
  otlphttp/dtmetrics:
    endpoint: http://dynatrace-metrics-cluster-collector.dynatrace.svc.cluster.local:4318

Command:

helm upgrade astronomy-shop open-telemetry/opentelemetry-demo --values astronomy-shop/sed/collector-values.yaml --namespace astronomy-shop --version "0.31.0"

Sample output:

NAME: astronomy-shop\ LAST DEPLOYED: Thu Jun 27 20:58:38 2024\ NAMESPACE: astronomy-shop\ STATUS: deployed\ REVISION: 2

Analyze OpenTelemetry Traces in Dynatrace

Open the opentelemetry-traces_dt_notebook Notebook.

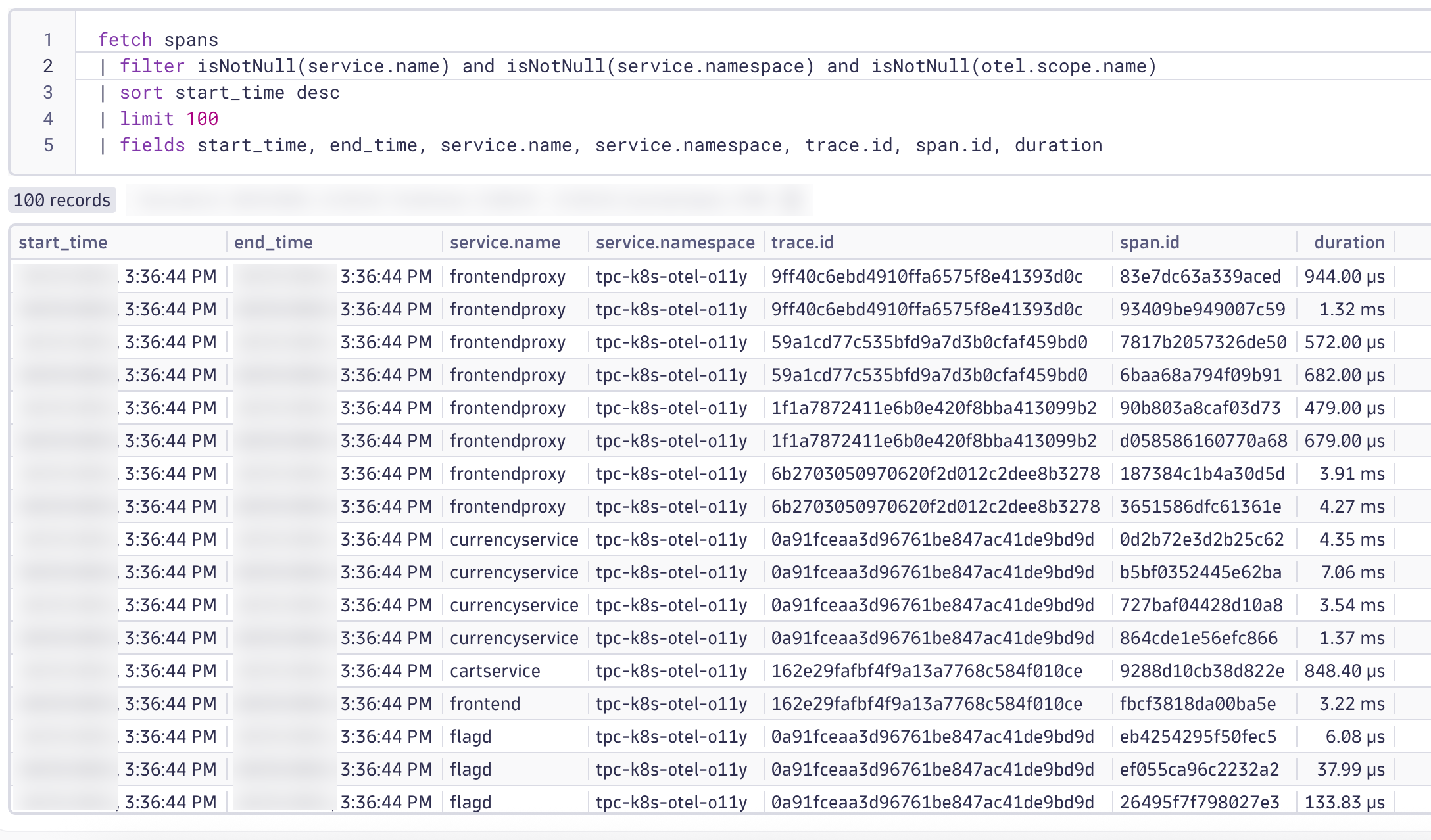

Query spans in Dynatrace

DQL:

fetch spans
| filter isNotNull(service.name) and isNotNull(service.namespace) and isNotNull(otel.scope.name)
| sort start_time desc
| limit 100
| fields start_time, end_time, service.name, service.namespace, trace.id, span.id, duration

Result:

PaymentService Spans

Now that you've confirmed OpenTelemetry spans are successfully ingested into Dynatrace, it's time to narrow your focus to a specific business-critical function: payment processing. In this next step, you'll refine your DQL query to isolate traces and spans related to the paymentservice workload and the charge operation. This targeted analysis allows you to observe how Dynatrace captures and contextualizes telemetry data for a key service, helping you validate instrumentation, understand service behavior, and identify potential performance bottlenecks in the payment flow.

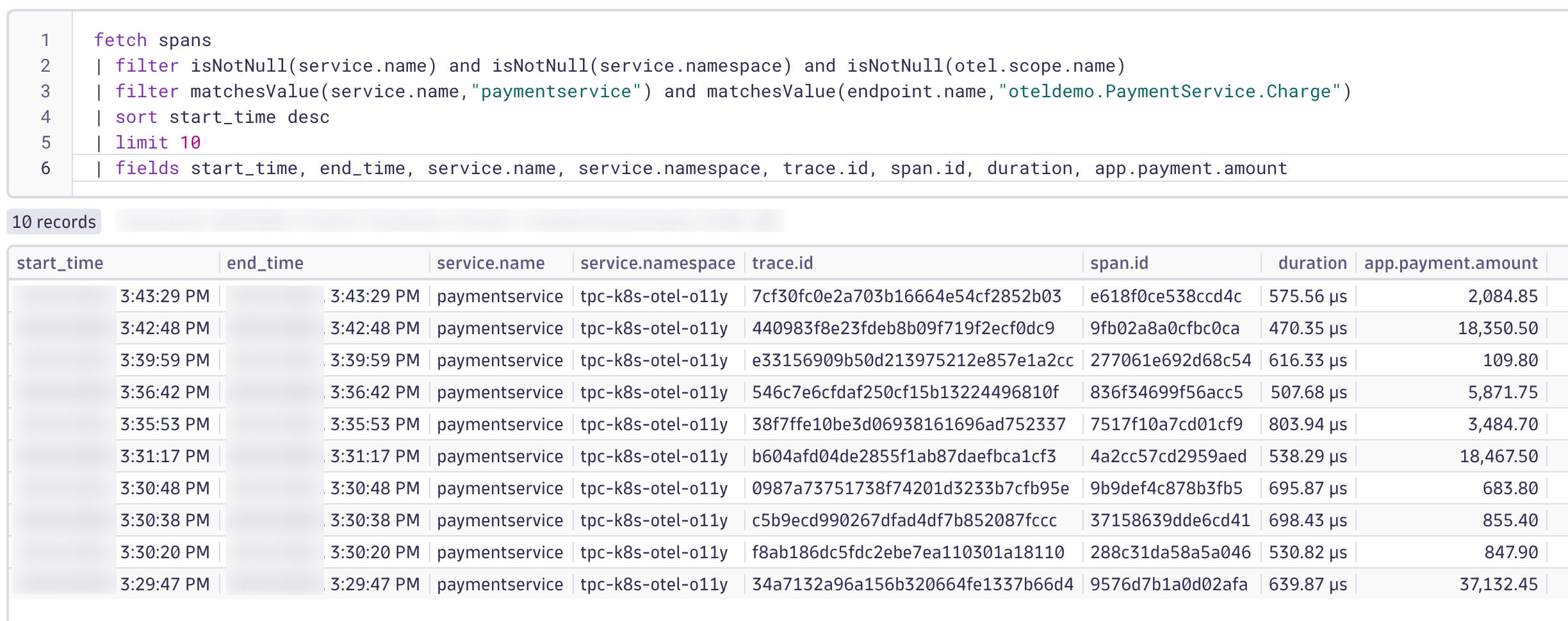

Query spans in Dynatrace

DQL:

fetch spans
| filter isNotNull(service.name) and isNotNull(service.namespace) and isNotNull(otel.scope.name)
| filter matchesValue(service.name,"paymentservice") and matchesValue(endpoint.name,"oteldemo.PaymentService.Charge")
| sort start_time desc
| limit 10
| fields start_time, end_time, service.name, service.namespace, trace.id, span.id, duration, app.payment.amount

Result:

With a filtered view of spans related to the paymentservice and its charge operation, you're now ready to dive deeper into the behavior of individual traces. Next, you'll select one of the trace IDs from your query results and open it in the Distributed Tracing App. This will allow you to explore the full trace waterfall, visualize the end-to-end flow of the payment processing transaction, and analyze how the Charge span fits into the broader service interaction. This hands-on inspection is key to understanding latency contributors, service dependencies, and the overall health of your instrumented application.

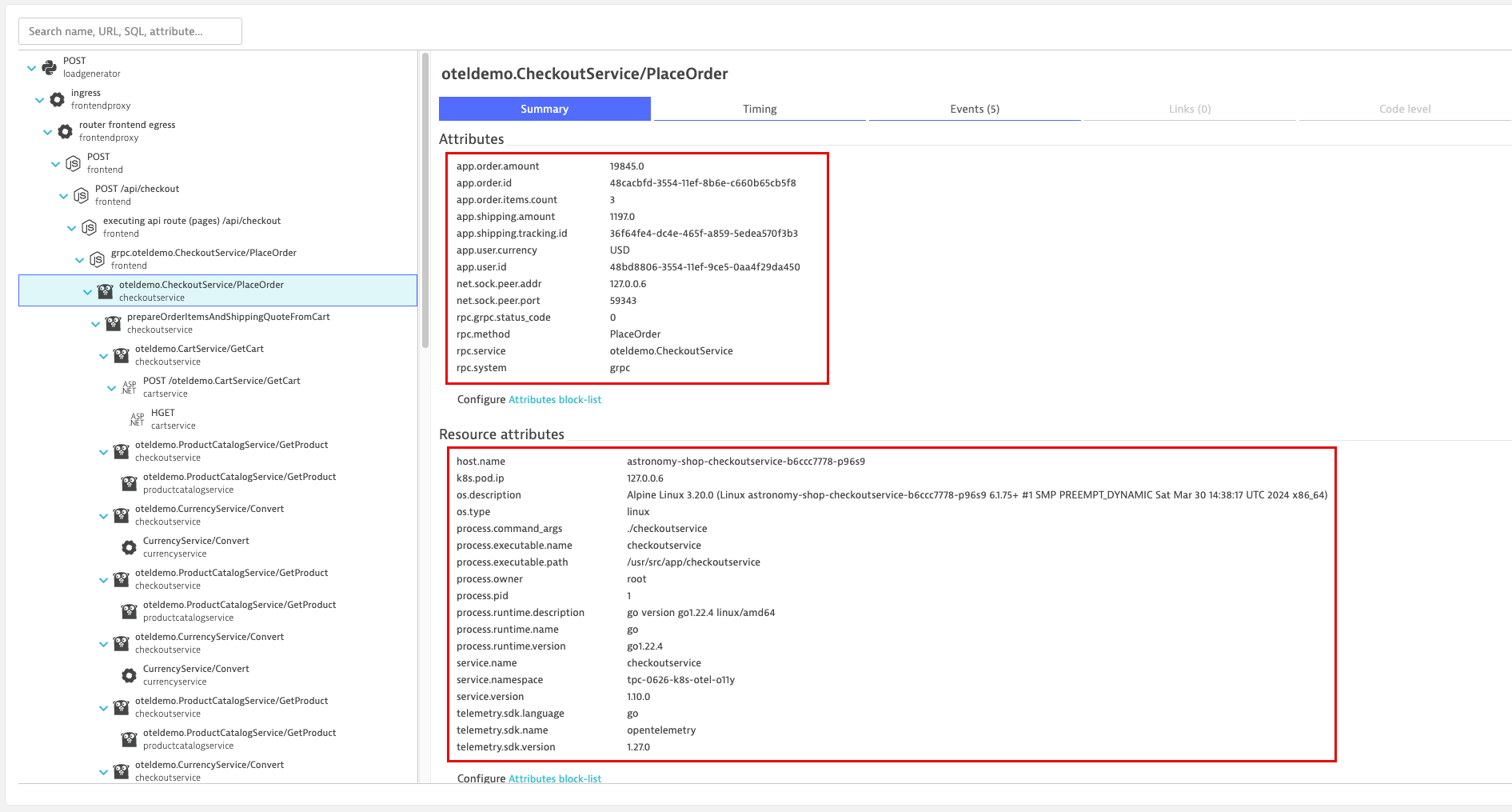

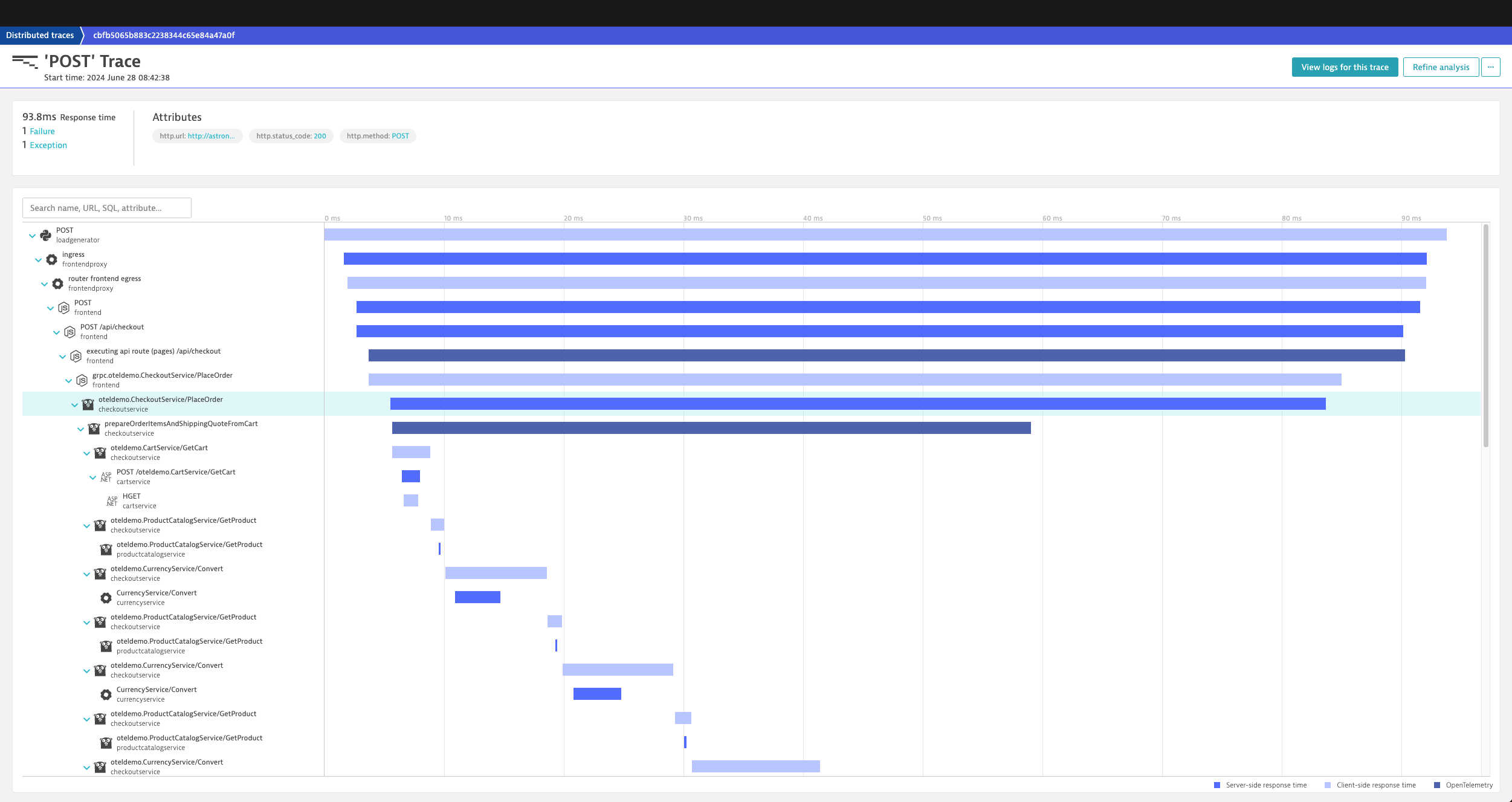

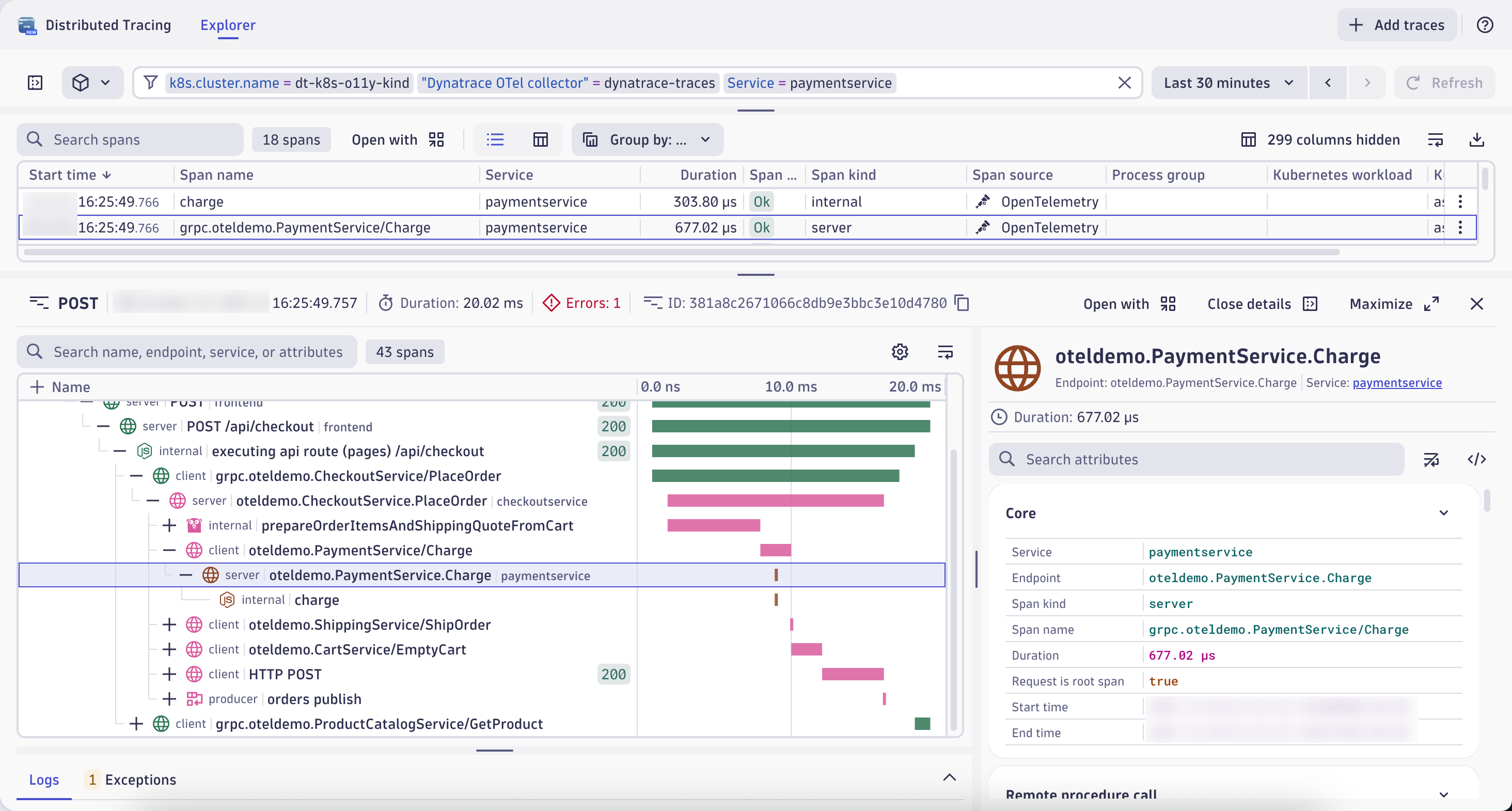

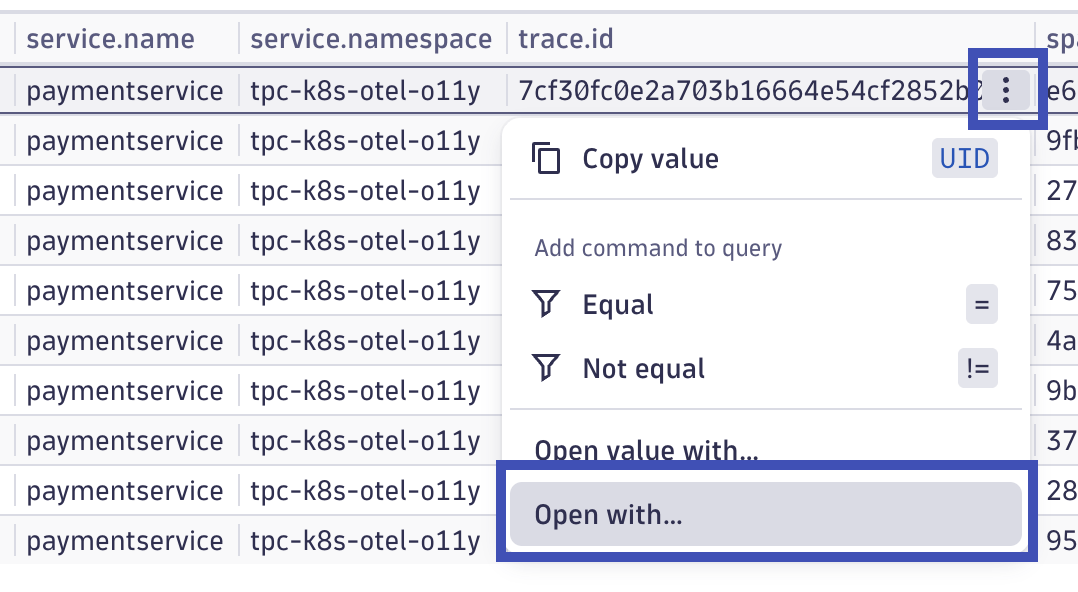

Take some time to analyze the distributed trace containing the paymentservice span. Review the captured metadata, detailed timings, logs, exceptions, and topology context.

Refer to the Dynatrace documentation for more details

These attributes are good, but we can add more to provide better Kubernetes context to these transactions.

k8sattributes Processor

Add Kubernetes Attributes with the k8sattributes Processor

The Kubernetes Attributes Processor automatically discovers Kubernetes pods, extracts their metadata, and adds the extracted metadata to spans, metrics, and logs as resource attributes.

The Kubernetes Attributes Processor is one of the most important components for a collector running in Kubernetes. Any collector receiving application data should use it. Because it adds Kubernetes context to your telemetry, the Kubernetes Attributes Processor lets you correlate your application’s traces, metrics, and logs signals with your Kubernetes telemetry, such as pod metrics and traces.

Configure Kubernetes RBAC

Create clusterrole with read access to Kubernetes objects

Since the processor uses the Kubernetes API, it needs the correct permission to work correctly. For most use cases, you should give the service account running the collector the following permissions via a ClusterRole.

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-collector-k8s-clusterrole-traces
rules:
- apiGroups: [""]
  resources: ["pods", "namespaces", "nodes"]
  verbs: ["get", "watch", "list"]
- apiGroups: ["apps"]
  resources: ["replicasets"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["extensions"]
  resources: ["replicasets"]
  verbs: ["get", "list", "watch"]

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-traces.yaml

Sample output:

clusterrole.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-traces created

Create clusterrolebinding for OpenTelemetry Collector service account

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-collector-k8s-clusterrole-traces-crb
subjects:
- kind: ServiceAccount
  name: dynatrace-traces-collector
  namespace: dynatrace
roleRef:
  kind: ClusterRole
  name: otel-collector-k8s-clusterrole-traces
  apiGroup: rbac.authorization.k8s.io

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-traces-crb.yaml

Sample output:

clusterrolebinding.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-traces-crb created

Add k8sattributes Processor

OpenTelemetry Documentation

The k8sattributes processor will query metadata from the cluster about the k8s objects. The Collector will then marry this metadata to the telemetry.

k8sattributes:
    auth_type: "serviceAccount"
    passthrough: false
        filter:
        node_from_env_var: KUBE_NODE_NAME
    extract:
        metadata:
            - k8s.namespace.name
            - k8s.deployment.name
            - k8s.daemonset.name
            - k8s.job.name
            - k8s.cronjob.name
            - k8s.replicaset.name
            - k8s.statefulset.name
            - k8s.pod.name
            - k8s.pod.uid
            - k8s.node.name
            - k8s.container.name
            - container.id
            - container.image.name
            - container.image.tag
        labels:
        - tag_name: app.label.component
            key: app.kubernetes.io/component
            from: pod
    pod_association:
        - sources:
            - from: resource_attribute
              name: k8s.pod.uid
        - sources:
            - from: resource_attribute
              name: k8s.pod.name
        - sources:
            - from: resource_attribute
              name: k8s.pod.ip
        - sources:
            - from: connection

Command:

kubectl apply -f opentelemetry/collector/traces/otel-collector-traces-crd-02.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-traces configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-traces-collector-559d5b9d77-xn84p	1/1	Running	0	1m

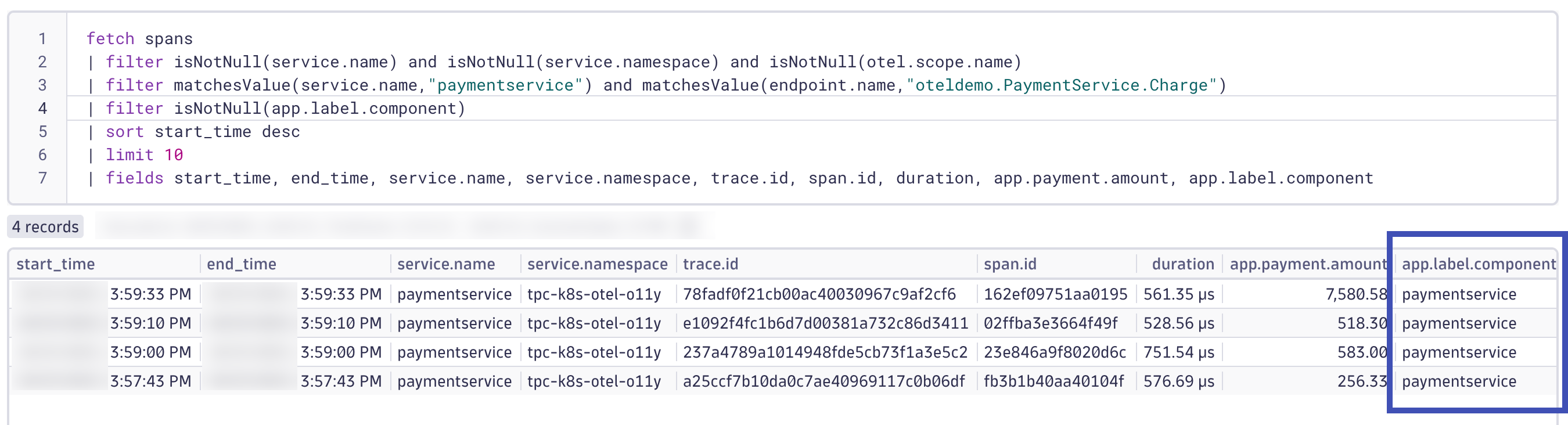

OpenTelemetry Traces in Dynatrace with Kubernetes Attributes

DQL:

fetch spans
| filter isNotNull(service.name) and isNotNull(service.namespace) and isNotNull(otel.scope.name)
| filter matchesValue(service.name,"paymentservice") and matchesValue(endpoint.name,"oteldemo.PaymentService.Charge")
| filter isNotNull(app.label.component)
| sort start_time desc
| limit 10
| fields start_time, end_time, service.name, service.namespace, trace.id, span.id, duration, app.payment.amount, app.label.component

Result:

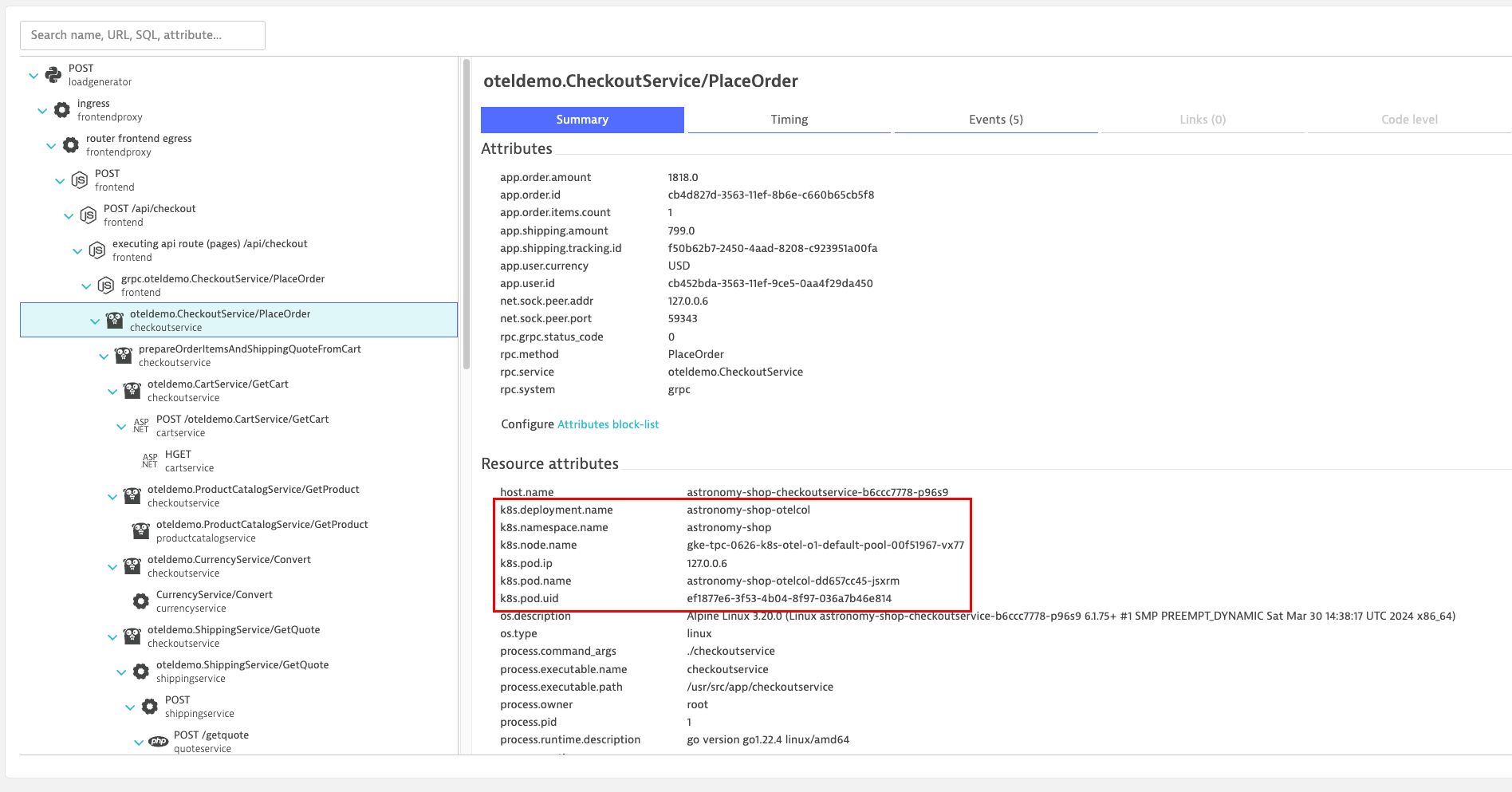

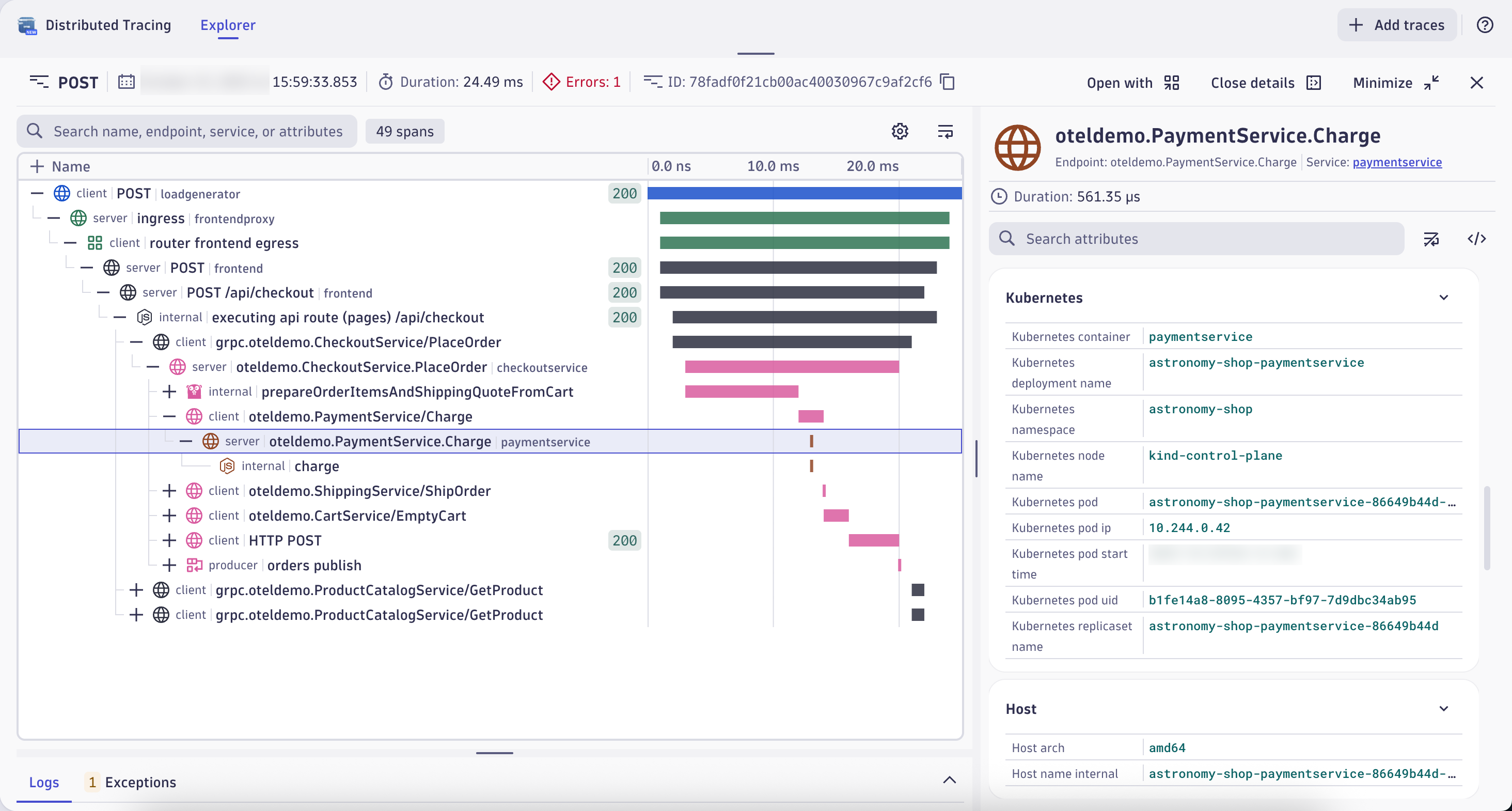

The spans are enriched with the additional Kubernetes metadata, including the attribute app.label.component which is obtained from the Kubernetes pod label app.kubernetes.io/component.

Analyze a distributed trace and review the additional metadata.

resourcedetection Processor

Add resourcedetection Processor

OpenTelemetry Documentation

The resource detection processor can be used to detect resource information from the host, in a format that conforms to the OpenTelemetry resource semantic conventions, and append or override the resource value in telemetry data with this information. Detectors are available for AWS, Azure, GCP, and several other platforms; see the documentation for more details.

processors:
  resourcedetection/gcp:
    detectors: [env, gcp]
    timeout: 2s
    override: false

note: for this lab, the Kind cluster does not have cloud metadata to collect. These values will be spoofed for the purposes of this lab.

resource/kind:
  attributes:
  - key: cloud.account.id
    value: dt-k8s-o11y-account
    action: insert
  - key: k8s.cluster.name
    value: dt-k8s-o11y-kind
    action: insert

Command:

kubectl apply -f opentelemetry/collector/traces/otel-collector-traces-crd-03.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-traces configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-traces-collector-559d5b9d77-rp21d	1/1	Running	0	1m

OpenTelemetry Traces in Dynatrace with Cloud Attributes

DQL:

fetch spans
| filter isNotNull(service.name) and isNotNull(service.namespace) and isNotNull(otel.scope.name)
| filter matchesValue(service.name,"paymentservice") and matchesValue(endpoint.name,"oteldemo.PaymentService.Charge")
| filter isNotNull(app.label.component) and isNotNull(cloud.account.id)
| sort start_time desc
| limit 10
| fields start_time, end_time, service.name, service.namespace, trace.id, span.id, duration, app.payment.amount, app.label.component, cloud.account.id, k8s.cluster.name

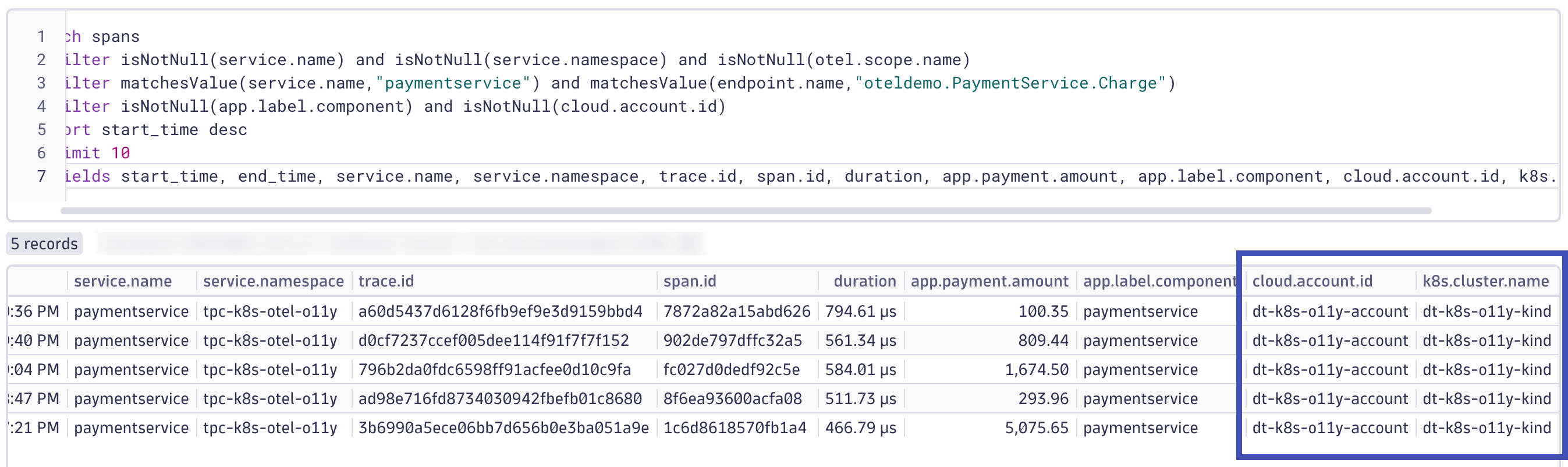

Result:

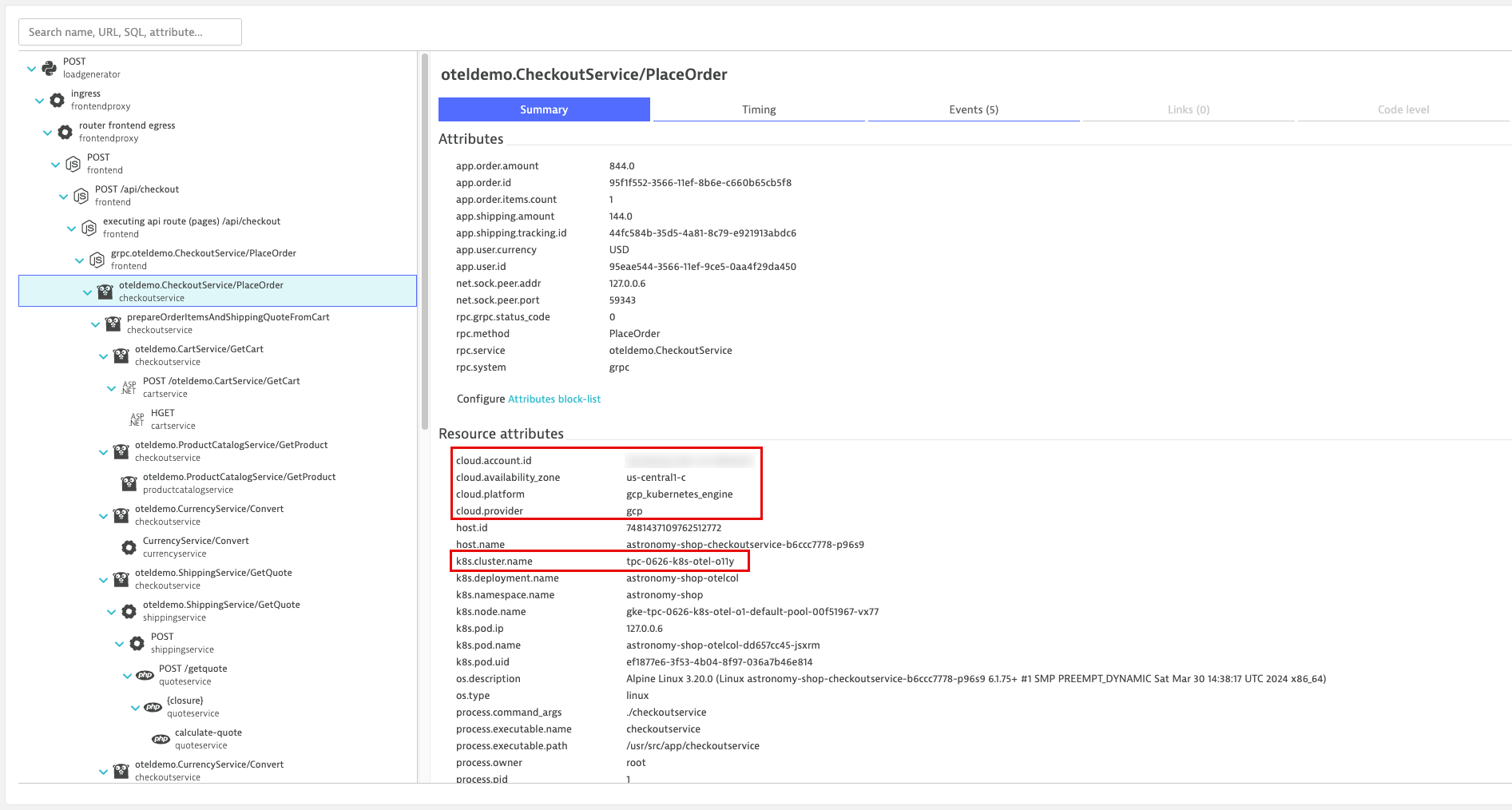

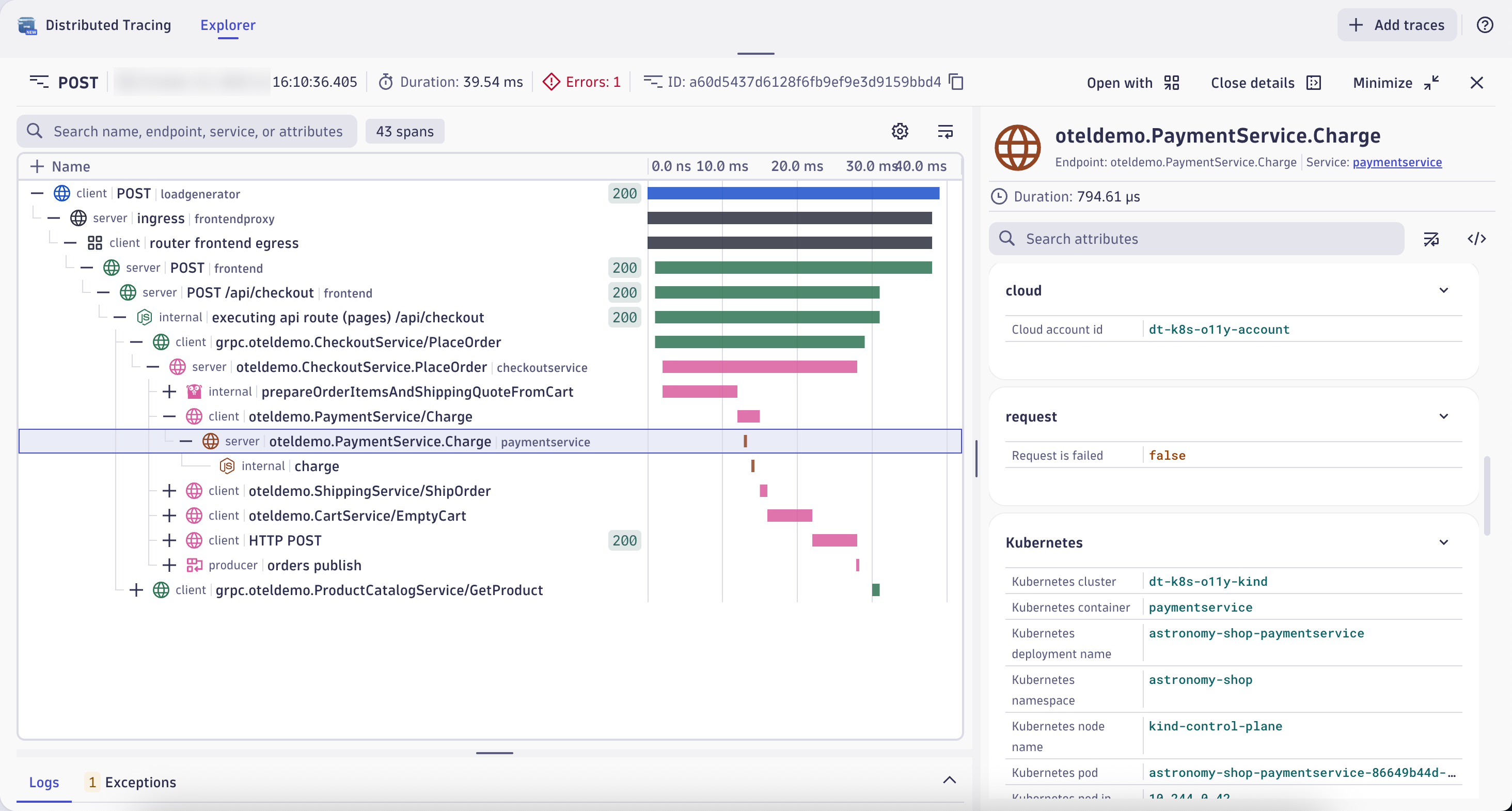

The spans now have the additional metadata, cloud.account.id and k8s.cluster.name.

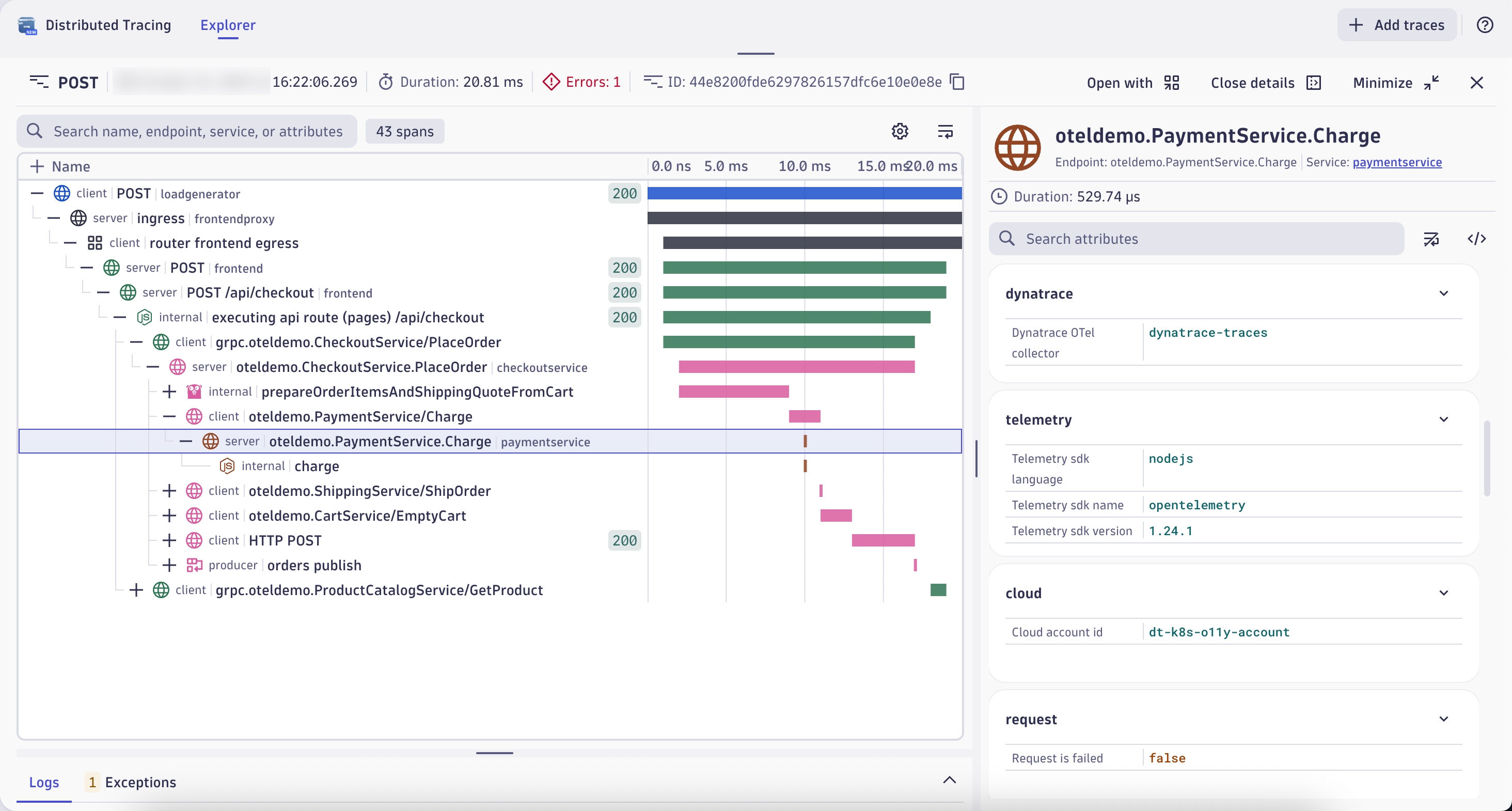

Analyze a distributed trace and review the additional metadata.

resource Processor

Add resource Processor

OpenTelemetry Documentation

The resource processor allows us to directly add, remove, or change resource attributes on the telemetry. View the documentation for more details.

We will use this processor to make the follow changes to our telemetry:

• k8s.pod.ip values in our data are either the same or invalid; delete the useless attribute
• telemetry.sdk.name set to opentelemetry will allow us to easily identify data captured through OpenTelemetry
• dynatrace.otel.collector is a non-standardized attribute that we made up to help us identify which Collector captured this data
• dt.security_context is a Dynatrace specific attribute that we use to manage user permissions to the telemetry
  • This could also be set using OpenPipeline, but this puts control of this attribute's value at the app/infra layer (optionally)

processors:
    resource:
        attributes:
        - key: k8s.pod.ip
          action: delete
        - key: telemetry.sdk.name
          value: opentelemetry
          action: insert
        - key: dynatrace.otel.collector
          value: dynatrace-traces
          action: insert
        - key: dt.security_context
          from_attribute: k8s.cluster.name
          action: insert

Command:

kubectl apply -f opentelemetry/collector/traces/otel-collector-traces-crd-04.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-traces configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-traces-collector-559d5b9d77-ny98q	1/1	Running	0	1m

OpenTelemetry Traces in Dynatrace with Custom Resource Attributes

DQL:

fetch spans
| filter isNotNull(service.name) and isNotNull(service.namespace) and isNotNull(otel.scope.name)
| filter matchesValue(service.name,"paymentservice") and matchesValue(endpoint.name,"oteldemo.PaymentService.Charge")
| filter isNotNull(app.label.component) and isNotNull(cloud.account.id) and isNotNull(dynatrace.otel.collector)
| sort start_time desc
| limit 10
| fields start_time, end_time, service.name, service.namespace, trace.id, span.id, duration, app.payment.amount, app.label.component, cloud.account.id, k8s.cluster.name, dynatrace.otel.collector

Result:

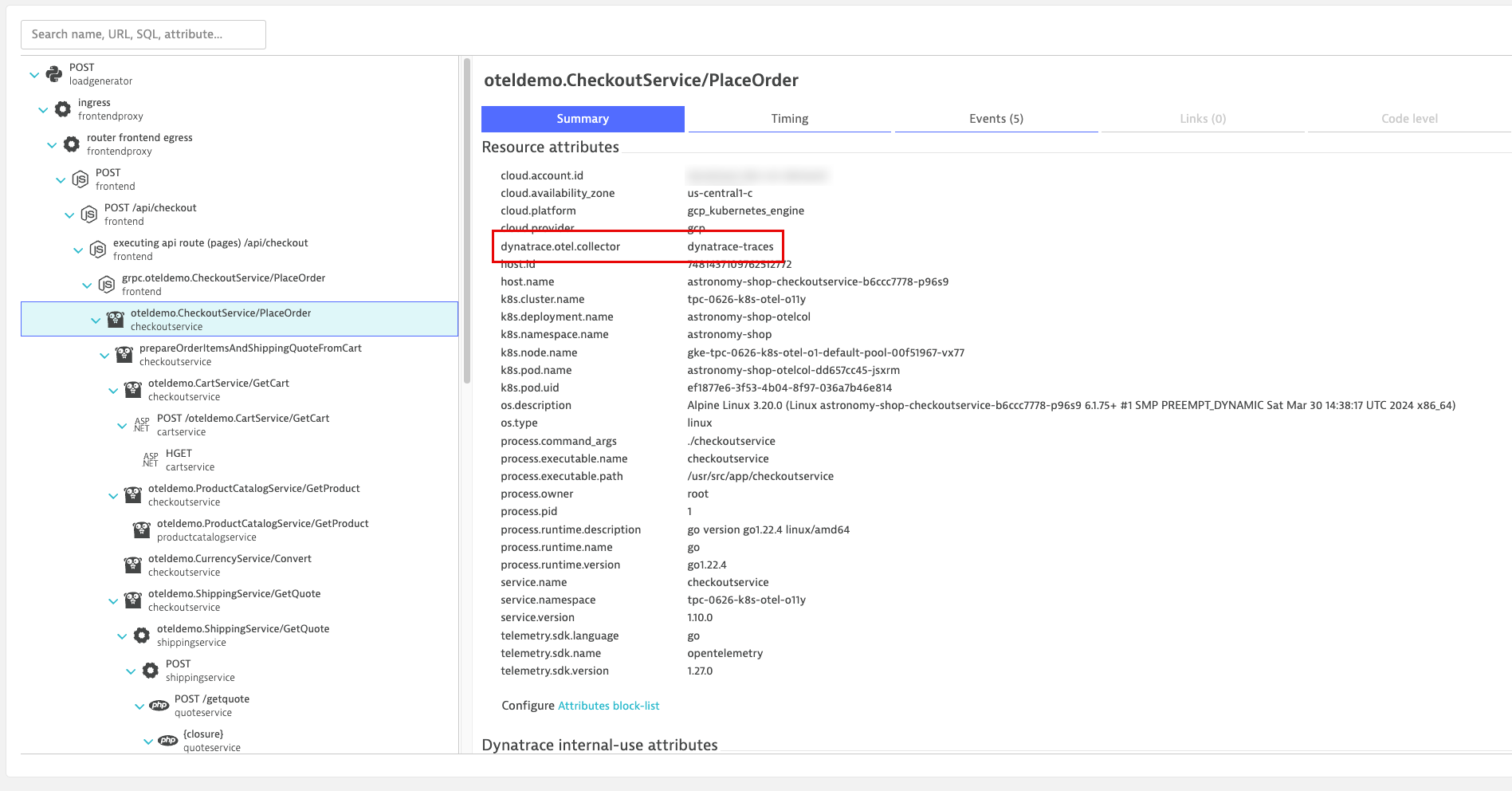

The spans now have the additional metadata, including dynatrace.otel.collector.

Analyze a distributed trace and review the additional metadata.

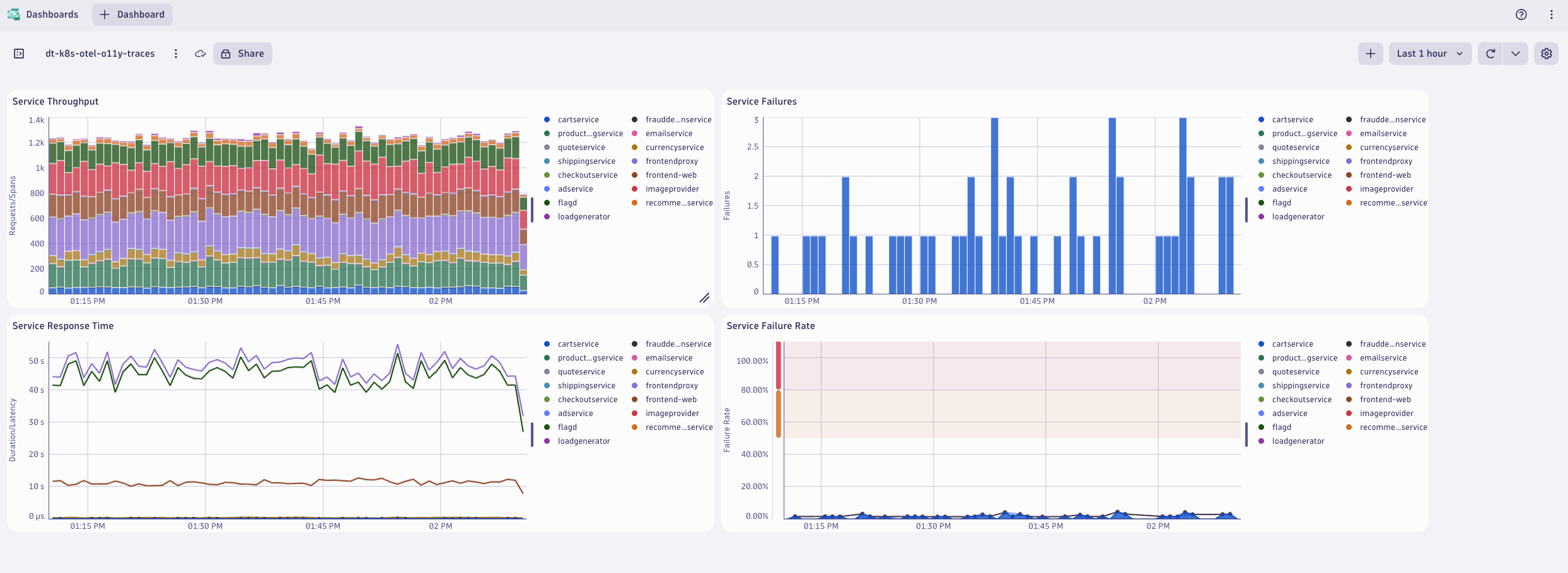

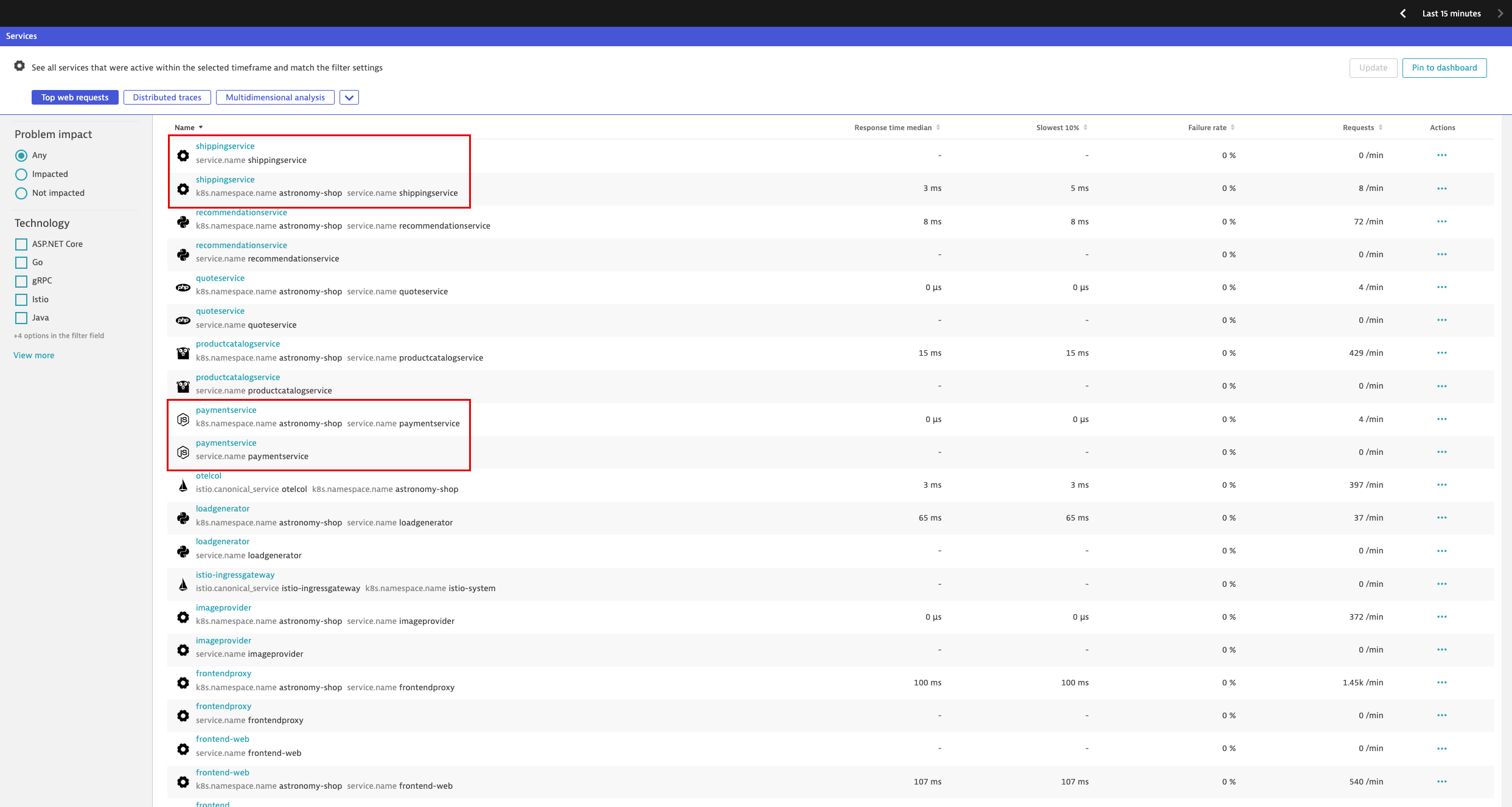

Dynatrace Dashboard with Unified Services from OpenTelemetry

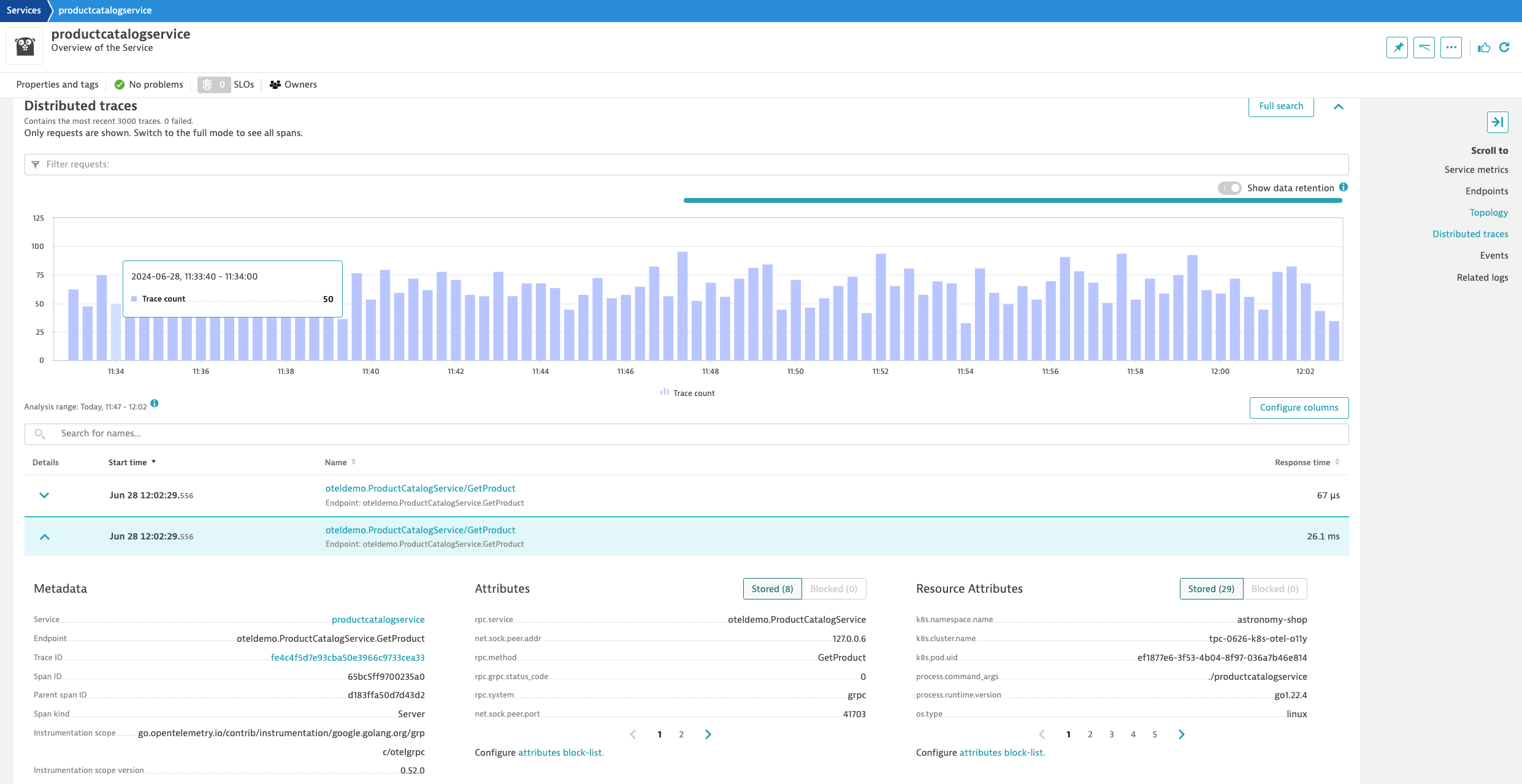

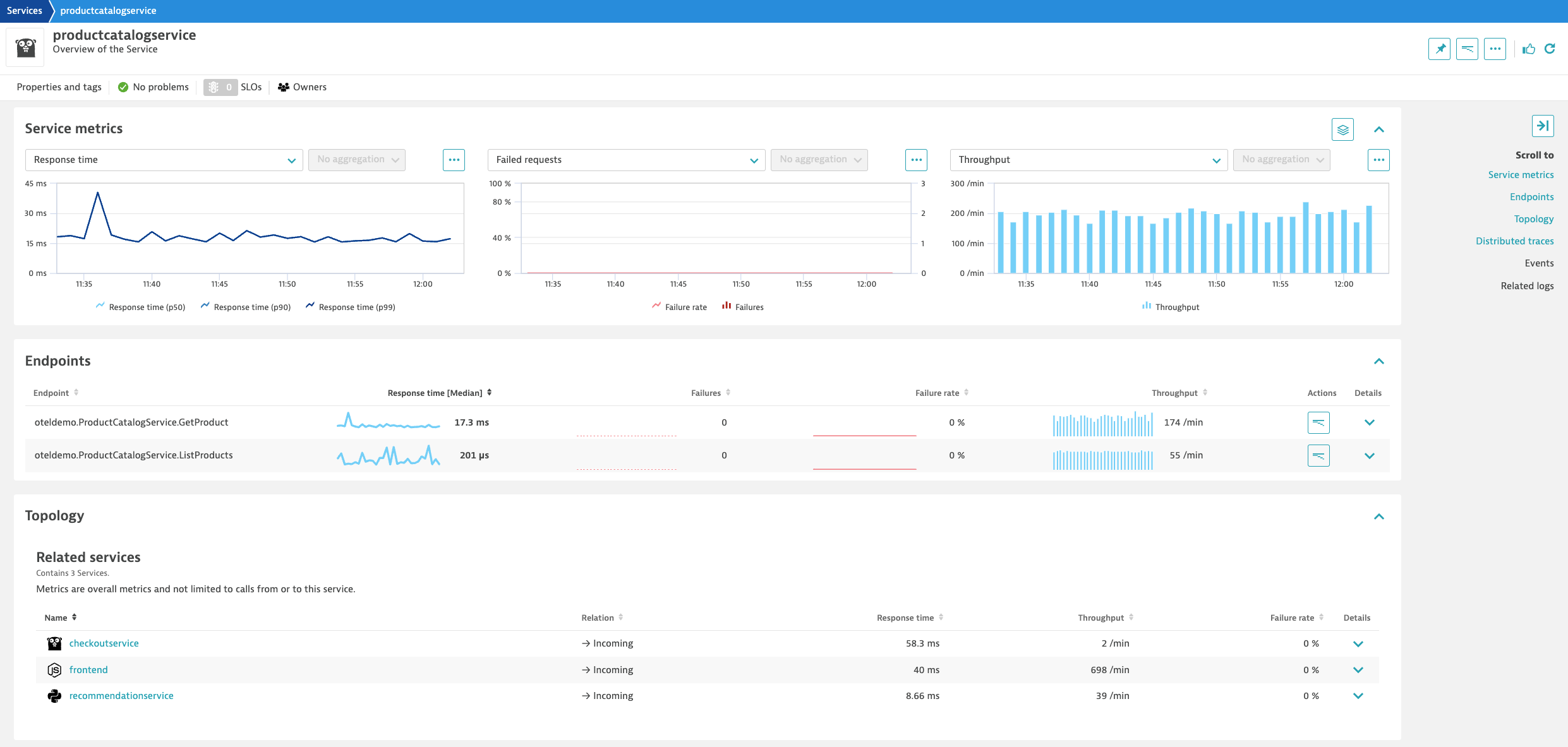

Open the Dashboard that you imported to view the throughput, response time, and failure metrics for the astronomy-shop application services.

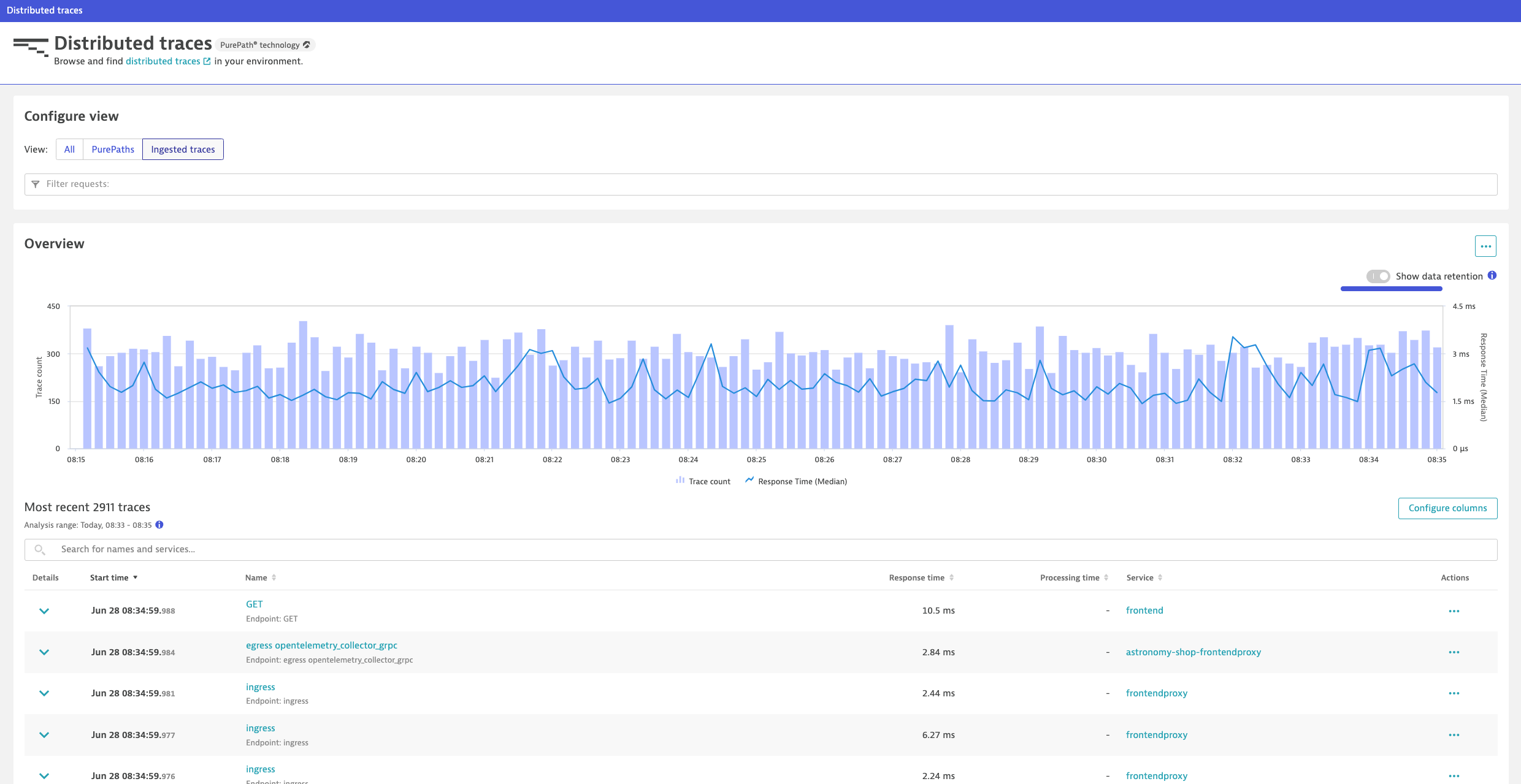

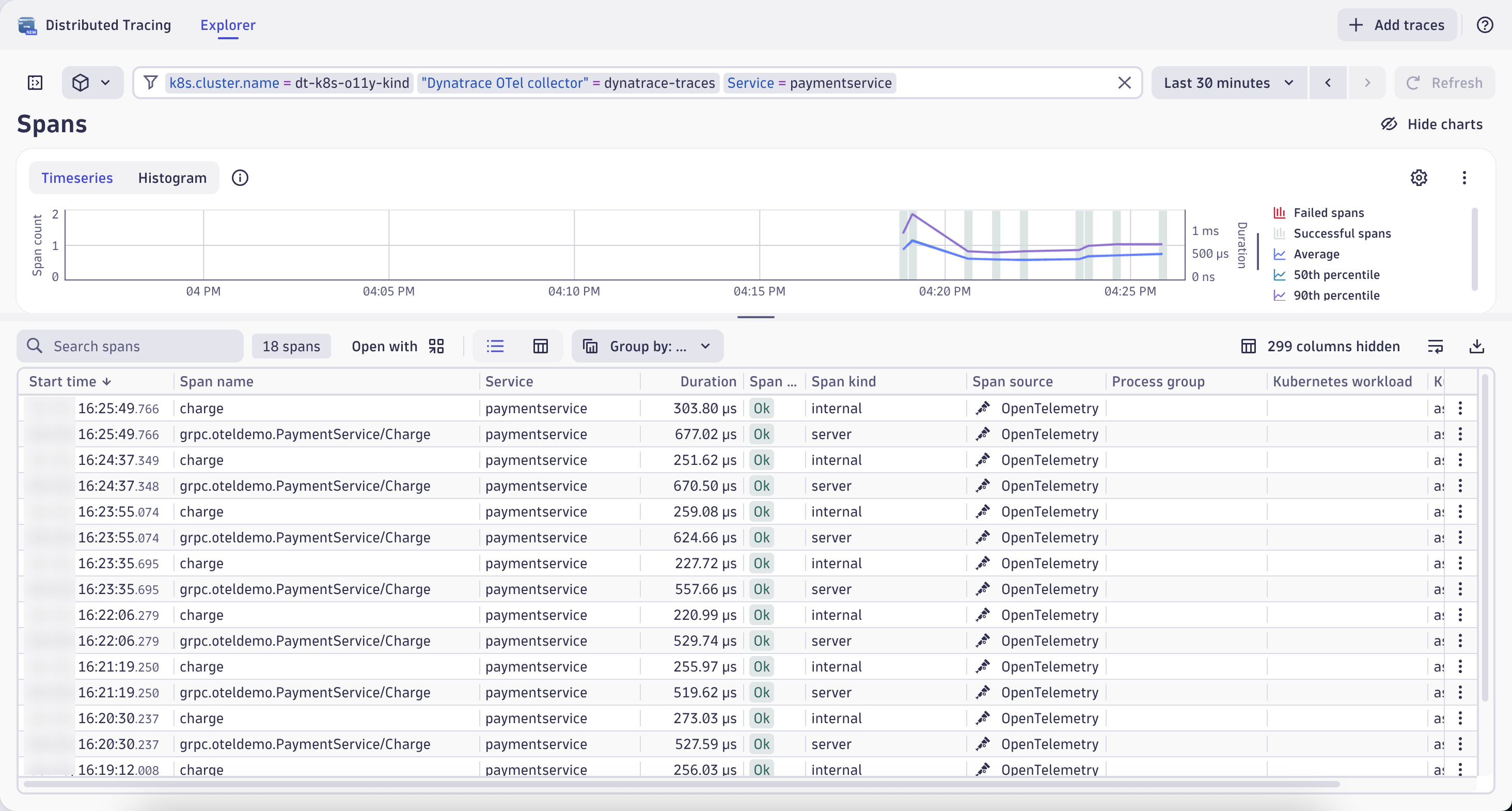

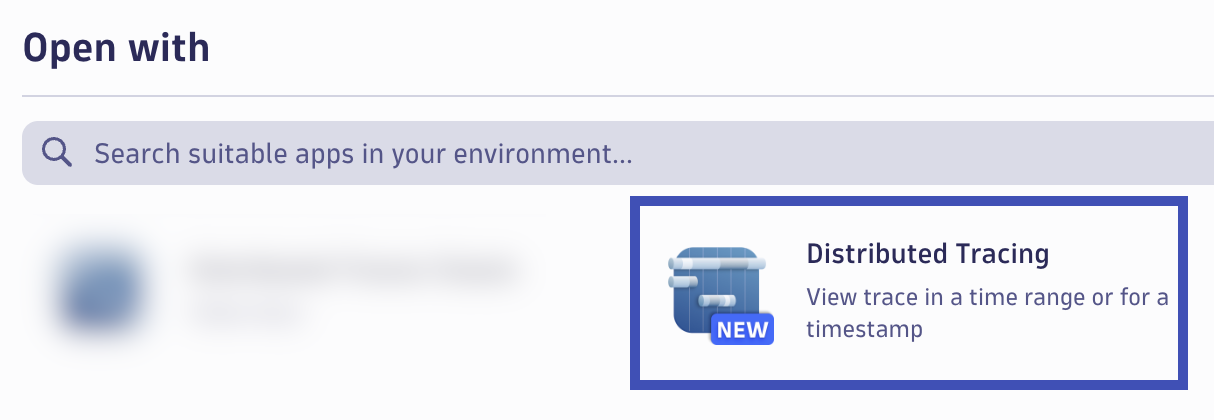

Distributed Tracing App

The Distributed Tracing App provides a powerful interface for analyzing end-to-end traces across your services. Once you've identified a trace of interest—such as one containing the PaymentService.Charge span, you can use the app to drill into its full execution path.

The app offers multiple ways to locate relevant traces quickly:

• Filter bar: Use this to apply precise filters such as service.name, span.kind, or custom attributes like app.payment.amount.
• Segments: These predefined filters help you zero in on common trace patterns or service-specific activity.
• Facets: Dynamically generated from your trace data, facets allow you to pivot your search based on attributes like HTTP status codes, error flags, or user-defined tags.

Once you've applied your filters, the trace list updates in real time. From there, you can select a trace to view its waterfall visualization, which shows the sequence and timing of spans across services. This makes it easy to identify latency contributors, understand service interactions, and validate that your OpenTelemetry instrumentation is capturing the right context.

Wrap Up

What You Learned Today

By completing this lab, you've successfully deployed the OpenTelemetry Collector to collect traces, enrich span attributes for better context, and ship those traces/spans to Dynatrace for analysis.

• The OpenTelemetry Collector was deployed as a Deployment, behaving as a Gateway on the cluster
• The Dynatrace Distro of OpenTelemetry Collector includes supported modules needed to ship traces to Dynatrace
  • The otlp receiver receives traces (and other signals) from OpenTelemetry exporters via gRPC/HTTP
  • The k8sattributes processor enriches the spans with Kubernetes attributes
  • The resourcedetection processor enriches the spans with cloud and cluster (GCP/GKE) attributes
  • The resource processor enriches the spans with custom (resource) attributes
• Dynatrace allows you to perform powerful queries and analysis of the trace/span data

Continue

In the next section, we'll ship metrics and datapoints from Kubernetes to Dynatrace using OpenTelemetry.

• Continue to OpenTelemetry Metrics
