OpenTelemetry Logs#

In this lab module we'll utilize the OpenTelemetry Collector deployed as a DaemonSet (Node Agent) to collect pod/container logs from a Kubernetes cluster and ship them to Dynatrace. Additionally, we'll deploy the OpenTelemetry Collector as a Deployment (Gateway) to watch Kubernetes Events from the Cluster and ship them to Dynatrace.

Lab tasks:

Deploy OpenTelemetry Collector as a DaemonSet
Deploy OpenTelemetry Collector as a Deployment
Configure OpenTelemetry Collector service pipeline for log enrichment
Query and visualize logs in Dynatrace using DQL

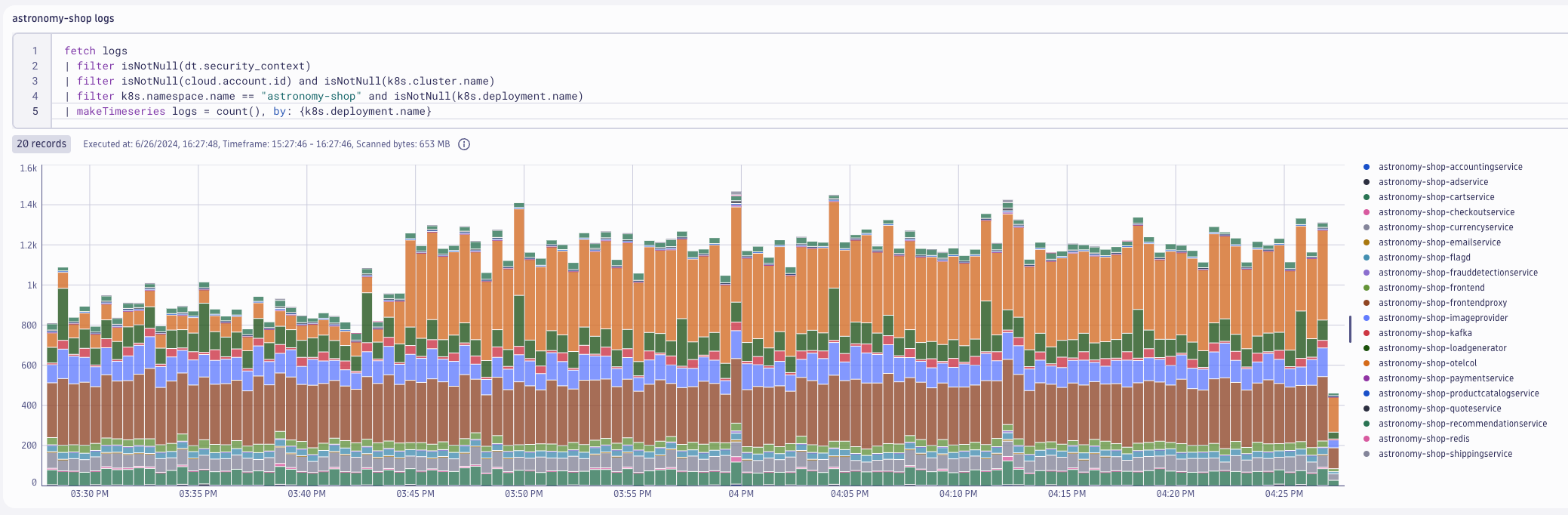

astronomy-shop logs

Learn More

Prerequisites#

Import Notebook into Dynatrace

Notebook

Define workshop user variables

In your Github Codespaces Terminal set the environment variables:

Sprint Environment

Are you using a Sprint environment for your Dynatrace tenant? If so, then use export DT_ENDPOINT=https://{your-environment-id}.sprint.dynatracelabs.com/api/v2/otlp instead of the live version below.

export DT_ENDPOINT=https://{your-environment-id}.live.dynatrace.com/api/v2/otlp
export DT_API_TOKEN={your-api-token}
export NAME=<INITIALS>-k8s-otel-o11y

Move into the logs module directory

Command:

cd $BASE_DIR/lab-modules/dt-k8s-otel-o11y-logs

OpenTelemetry Collector for Logs#

Dynatrace Documentation

Deploy OpenTelemetry Collector#

Dynatrace Distro - Daemonset (Node Agent) Dynatrace Documentation

Pod (and container) logs are written to the filesystem of the Node where the pod is running. Therefore the Collector must be deployed as a Daemonset to read the log files on the local Node.

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: dynatrace-logs
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "daemonset"
  image: "ghcr.io/dynatrace/dynatrace-otel-collector/dynatrace-otel-collector:latest"

Command:

kubectl apply -f opentelemetry/collector/logs/otel-collector-logs-crd-01.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-logs created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-logs-collector-8q8tz	1/1	Running	0	1m

`filelog` Receiver#

OpenTelemetry Documentation

The Filelog Receiver tails and parses logs from files. Although it’s not a Kubernetes-specific receiver, it is still the de facto solution for collecting any logs from Kubernetes. Logs from the Kubernetes Node's filesystem will be read from the Collector running on that Node. This is why the Collector is deployed as a Daemonset and not a Deployment (or Sidecar).

The Filelog Receiver is composed of Operators that are chained together to process a log. Each Operator performs a simple responsibility, such as parsing a timestamp or JSON. Configuring a Filelog Receiver is not trivial. Refer to the documentation for details.

config: |
    receivers:
      filelog:
        ...
    service:
      pipelines:
        logs:
          receivers: [filelog]
          processors: [batch]
          exporters: [otlphttp/dynatrace]

Query logs in Dynatrace

DQL:

fetch logs
| filter isNotNull(log.file.path) and isNotNull(log)
| sort timestamp desc
| limit 100
| fields timestamp, loglevel, status, k8s.namespace.name, k8s.pod.name, k8s.container.name, content, log.file.path

Result:

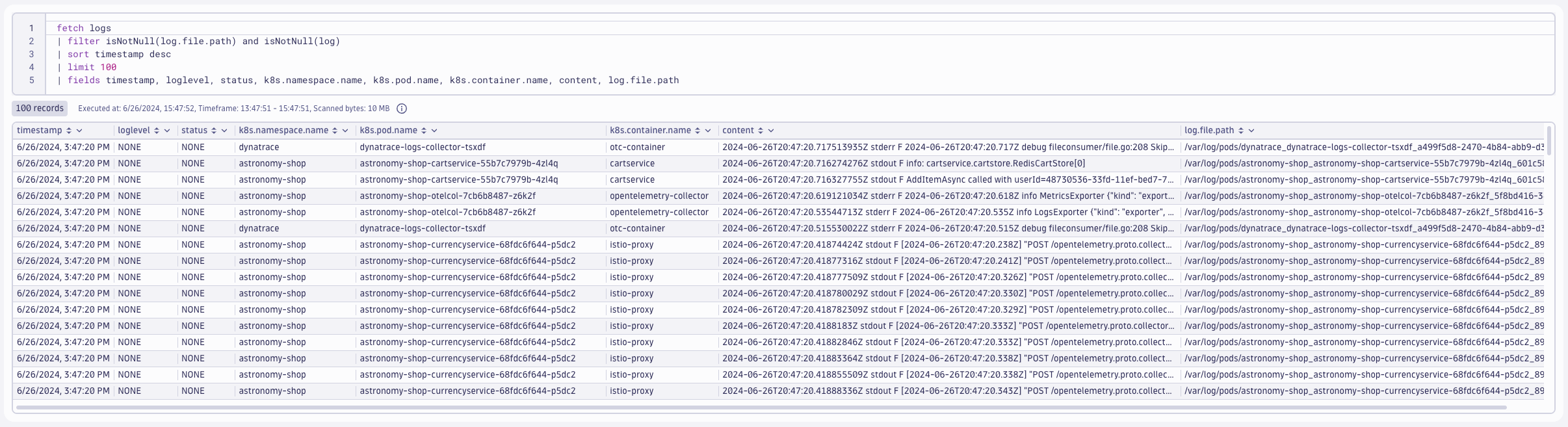

dql_filelog_receiver

k8sattributes Processor#

Add Kubernetes Attributes with the k8sattributes Processor

The Kubernetes Attributes Processor automatically discovers Kubernetes pods, extracts their metadata, and adds the extracted metadata to spans, metrics, and logs as resource attributes.

The Kubernetes Attributes Processor is one of the most important components for a collector running in Kubernetes. Any collector receiving application data should use it. Because it adds Kubernetes context to your telemetry, the Kubernetes Attributes Processor lets you correlate your application’s traces, metrics, and logs signals with your Kubernetes telemetry, such as pod metrics and traces.

Configure Kubernetes RBAC#

Create clusterrole with read access to Kubernetes objects

Since the processor uses the Kubernetes API, it needs the correct permission to work correctly. For most use cases, you should give the service account running the collector the following permissions via a ClusterRole.

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-collector-k8s-clusterrole-logs
rules:
- apiGroups: [""]
  resources: ["pods", "namespaces", "nodes"]
  verbs: ["get", "watch", "list"]
- apiGroups: ["apps"]
  resources: ["replicasets"]
  verbs: ["get", "list", "watch"]
- apiGroups: ["extensions"]
  resources: ["replicasets"]
  verbs: ["get", "list", "watch"]

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-logs.yaml

Sample output:

clusterrole.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-logs created

Create clusterrolebinding for OpenTelemetry Collector service account

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-collector-k8s-clusterrole-logs-crb
subjects:
- kind: ServiceAccount
  name: dynatrace-logs-collector
  namespace: dynatrace
roleRef:
  kind: ClusterRole
  name: otel-collector-k8s-clusterrole-logs
  apiGroup: rbac.authorization.k8s.io

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-logs-crb.yaml

Sample output:

clusterrolebinding.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-logs-crb created

Add `k8sattributes` Processor#

OpenTelemetry Documentation

The k8sattributes processor will query metadata from the cluster about the k8s objects. The Collector will then marry this metadata to the telemetry.

k8sattributes:
    auth_type: "serviceAccount"
    passthrough: false
        filter:
        node_from_env_var: KUBE_NODE_NAME
    extract:
        metadata:
            - k8s.namespace.name
            - k8s.deployment.name
            - k8s.daemonset.name
            - k8s.job.name
            - k8s.cronjob.name
            - k8s.replicaset.name
            - k8s.statefulset.name
            - k8s.pod.name
            - k8s.pod.uid
            - k8s.node.name
            - k8s.container.name
            - container.id
            - container.image.name
            - container.image.tag
        labels:
        - tag_name: app.label.component
            key: app.kubernetes.io/component
            from: pod
    pod_association:
        - sources:
            - from: resource_attribute
              name: k8s.pod.uid
        - sources:
            - from: resource_attribute
              name: k8s.pod.name
        - sources:
            - from: resource_attribute
              name: k8s.pod.ip
        - sources:
            - from: connection

Command:

kubectl apply -f opentelemetry/collector/logs/otel-collector-logs-crd-02.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-logs configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-logs-collector-dns4x	1/1	Running	0	1m

Query logs in Dynatrace

DQL:

fetch logs
| filter k8s.namespace.name == "astronomy-shop" and isNotNull(k8s.deployment.name)
| sort timestamp desc
| limit 100
| fields timestamp, loglevel, status, k8s.namespace.name, k8s.deployment.name, k8s.pod.name, k8s.container.name, app.label.component, content

Result:

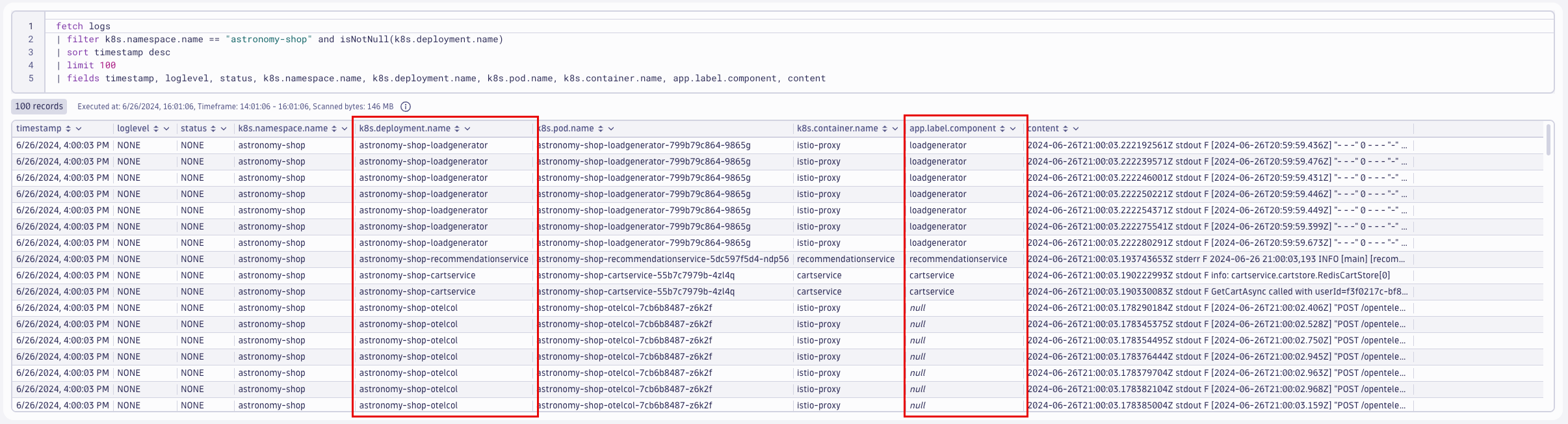

dql_k8sattributes_processor

resourcedetection Processor#

The resource detection processor can be used to detect resource information from the host, in a format that conforms to the OpenTelemetry resource semantic conventions, and append or override the resource value in telemetry data with this information. Detectors are available for AWS, Azure, GCP, and several other platforms; see the documentation for more details.

This processor is a great plugin for adding attributes such as cloud.account.id and k8s.cluster.name to the telemetry.

Add `resourcedetection` Processor#

OpenTelemetry Documentation

processors:
  resourcedetection/gcp:
    detectors: [env, gcp]
    timeout: 2s
    override: false

note: for this lab, the Kind cluster does not have cloud metadata to collect. These values will be spoofed for the purposes of this lab.

resource/kind:
  attributes:
  - key: cloud.account.id
    value: dt-k8s-o11y-account
    action: insert
  - key: k8s.cluster.name
    value: dt-k8s-o11y-kind
    action: insert

Command:

kubectl apply -f opentelemetry/collector/logs/otel-collector-logs-crd-03.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-logs configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-logs-collector-fbtk5	1/1	Running	0	1m

Query logs in Dynatrace

DQL:

fetch logs
| filter isNotNull(cloud.account.id) and isNotNull(k8s.cluster.name)
| filter k8s.namespace.name == "astronomy-shop" and isNotNull(k8s.deployment.name)
| sort timestamp desc
| limit 100
| fields timestamp, loglevel, status, cloud.account.id, k8s.cluster.name, k8s.namespace.name, k8s.deployment.name, content

Result:

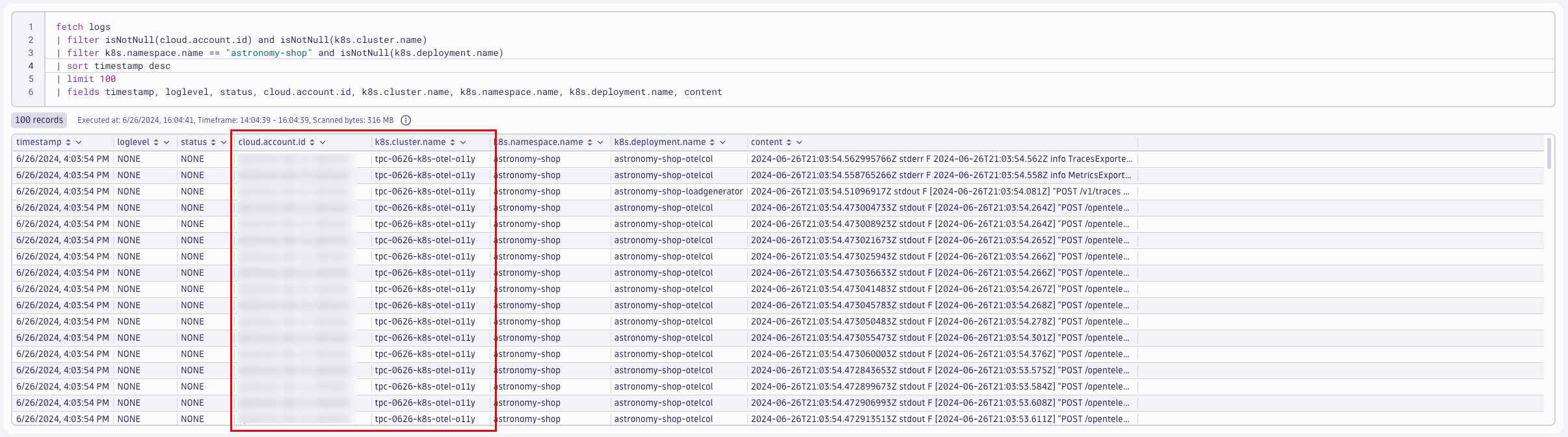

dql_resourcedetection_processor

resource Processor#

Add `resource` Processor#

OpenTelemetry Documentaiton

The resource processor allows us to directly add, remove, or change resource attributes on the telemetry. View the documentation for more details.

We will use this processor to make the follow changes to our telemetry:

k8s.pod.ip values in our log data are either the same or invalid; delete the useless attribute
telemetry.sdk.name set to opentelemetry will allow us to easily identify logs captured through OpenTelemetry
dynatrace.otel.collector is a non-standardized attribute that we made up to help us identify which Collector captured this data
dt.security_context is a Dynatrace specific attribute that we use to manage user permissions to the telemetry
- This could also be set using OpenPipeline, but this puts control of this attribute's value at the app/infra layer (optionally)

processors:
    resource:
        attributes:
        - key: k8s.pod.ip
          action: delete
        - key: telemetry.sdk.name
          value: opentelemetry
          action: insert
        - key: dynatrace.otel.collector
          value: dynatrace-logs
          action: insert
        - key: dt.security_context
          from_attribute: k8s.cluster.name
          action: insert

Command:

kubectl apply -f opentelemetry/collector/logs/otel-collector-logs-crd-04.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-logs configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-logs-collector-xx6km	1/1	Running	0	1m

Query logs in Dynatrace

DQL:

fetch logs
| filter isNotNull(dt.security_context)
| filter isNotNull(cloud.account.id) and isNotNull(k8s.cluster.name)
| filter k8s.namespace.name == "astronomy-shop" and isNotNull(k8s.deployment.name)
| sort timestamp desc
| limit 100
| fields timestamp, loglevel, status, dt.security_context, dynatrace.otel.collector, cloud.account.id, k8s.cluster.name, k8s.namespace.name, k8s.deployment.name, content

Result:

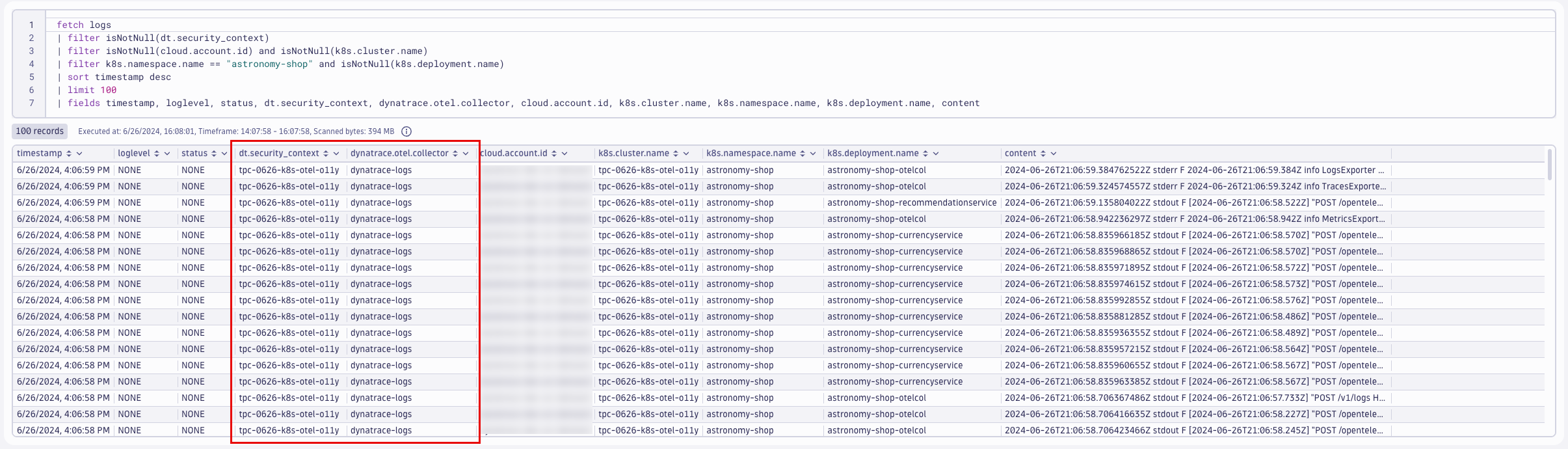

dql_resource_processor

OTLP Exporter#

The astronomy-shop demo application has the OpenTelemetry agents and SDKs already instrumented. These agents and SDKs are generating logs (traces and metrics too) that are being exported to a Collector running within the astronomy-shop namespace bundled into the application deployment. We want these logs to be shipped to Dynatrace as well.

OpenTelemetry Documentation

Adding the otlp receiver allows us to receive telemetry from otel exporters, such as agents and other collectors.

config: |
    receivers:
      otlp:
        protocols:
          grpc:
            endpoint: 0.0.0.0:4317
          http:
            endpoint: 0.0.0.0:4318
    service:
      pipelines:
        logs:
          receivers: [otlp]
          processors: [batch]
          exporters: [otlphttp/dynatrace]

Command:

kubectl apply -f opentelemetry/collector/logs/otel-collector-logs-crd-05.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-logs configured

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-logs-collector-gu0rm	1/1	Running	0	1m

Customize astronomy-shop helm values#

OpenTelemetry data created by agents and SDKs should include service.name and service.namespace attributes. We will make the service.namespace unique to our deployment using our NAME environment variable declared earlier, using a sed command on the Helm chart's values.yaml file.

default:
  # List of environment variables applied to all components
  env:
    - name: OTEL_SERVICE_NAME
      valueFrom:
        fieldRef:
          apiVersion: v1
          fieldPath: "metadata.labels['app.kubernetes.io/component']"
    - name: OTEL_COLLECTOR_NAME
      value: '{{ include "otel-demo.name" . }}-otelcol'
    - name: OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE
      value: cumulative
    - name: OTEL_RESOURCE_ATTRIBUTES
      value: 'service.name=$(OTEL_SERVICE_NAME),service.namespace=NAME_TO_REPLACE,service.version={{ .Chart.AppVersion }}'

service.namespace=NAME_TO_REPLACE\ service.namespace=INITIALS-k8s-otel-o11y

Command:

sed -i "s,NAME_TO_REPLACE,$NAME," astronomy-shop/collector-values.yaml

Update astronomy-shop OpenTelemetry Collector export endpoint via helm

Our collector-values.yaml contains new configurations for the application so that the astronomy-shop Collector includes exporters that ship to the Collectors deployed in the dynatrace namespace.

exporters:
  # Dynatrace OTel Collectors
  otlphttp/dttraces:
    endpoint: http://dynatrace-traces-collector.dynatrace.svc.cluster.local:4318
  otlphttp/dtlogs:
    endpoint: http://dynatrace-logs-collector.dynatrace.svc.cluster.local:4318
  otlphttp/dtmetrics:
    endpoint: http://dynatrace-metrics-cluster-collector.dynatrace.svc.cluster.local:4318

Command:

helm upgrade astronomy-shop open-telemetry/opentelemetry-demo --values astronomy-shop/collector-values.yaml --namespace astronomy-shop --version "0.31.0"

Sample output:

NAME: astronomy-shop\ LAST DEPLOYED: Thu Jun 27 20:58:38 2024\ NAMESPACE: astronomy-shop\ STATUS: deployed\ REVISION: 2

Query logs in Dynatrace

DQL:

fetch logs
| filter k8s.namespace.name == "astronomy-shop" and isNotNull(service.name)
| sort timestamp desc
| limit 100
| fields timestamp, content, k8s.cluster.name, k8s.pod.name, service.namespace, service.name, telemetry.sdk.language, otel.scope.name

Result:

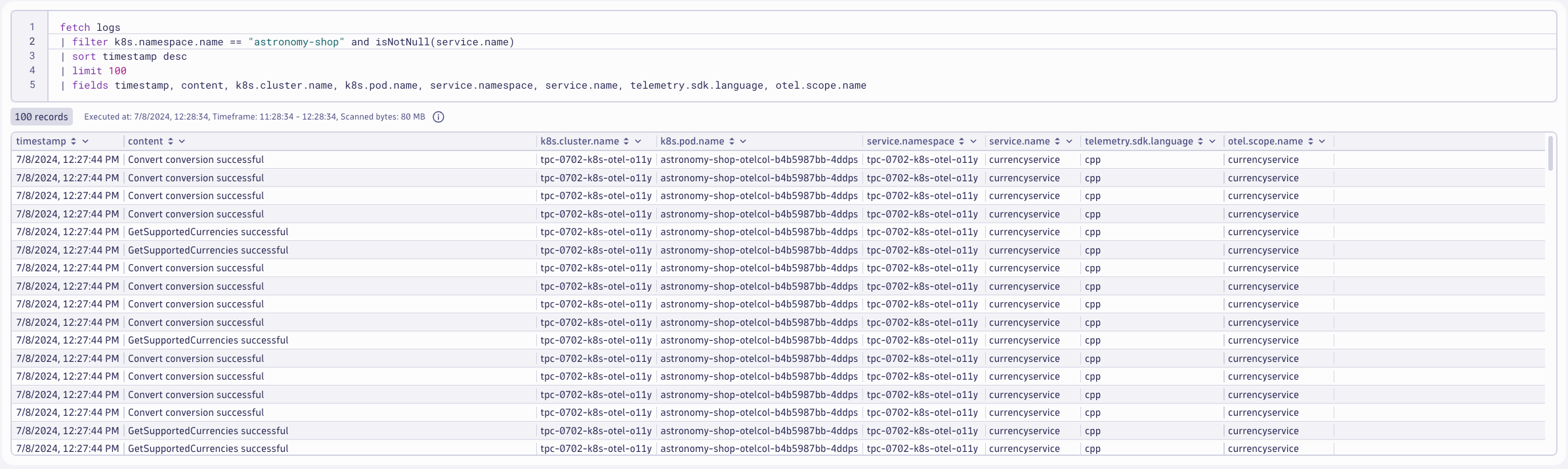

dql_otel_sdk_logs

OpenTelemetry Collector for Events#

OpenTelemetry Documentation

The Kubernetes Objects receiver collects, either by pulling or watching, objects from the Kubernetes API server. The most common use case for this receiver is watching Kubernetes events, but it can be used to collect any type of Kubernetes object.

`k8sobjects` Receiver#

https://opentelemetry.io/docs/kubernetes/collector/components/#kubernetes-objects-receiver

Our goal is to capture any events related to the astronomy-shop and dynatrace namespaces.

receivers:
  k8sobjects/events:
    auth_type: serviceAccount
    objects:
      - name: events
        mode: watch
        namespaces: [astronomy-shop,dynatrace]

The k8sobjects receiver is only available on the Contrib Distro of the OpenTelemetry Collector. Therefore we must deploy a new Collector using the contrib image.

Configure Kubernetes RBAC#

Create clusterrole with read access to Kubernetes events

Since the processor uses the Kubernetes API, it needs the correct permission to work correctly. Since service accounts are the only authentication option you must give the service account the proper access. For any object you want to collect you need to ensure the name is added to the cluster role.

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: otel-collector-k8s-clusterrole-events
rules:
- apiGroups: [""]
  resources: ["events"]
  verbs: ["get", "watch", "list"]

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-events.yaml

Sample output:

clusterrole.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-events created

Create clusterrolebinding for OpenTelemetry Collector service account

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: otel-collector-k8s-clusterrole-events-crb
subjects:
- kind: ServiceAccount
  name: dynatrace-events-collector
  namespace: dynatrace
roleRef:
  kind: ClusterRole
  name: otel-collector-k8s-clusterrole-events
  apiGroup: rbac.authorization.k8s.io

Command:

kubectl apply -f opentelemetry/rbac/otel-collector-k8s-clusterrole-events-crb.yaml

Sample output:

clusterrolebinding.rbac.authorization.k8s.io/otel-collector-k8s-clusterrole-events-crb created

Add k8sobjects receiver to collect Kubernetes events as logs

OpenTelemetry Documentation

receivers:
  k8sobjects/events:
    auth_type: serviceAccount
    objects:
      - name: events
        mode: watch
        namespaces: [astronomy-shop,dynatrace]

Deploy OpenTelemetry Collector - Contrib Distro - Deployment (Gateway)

OpenTelemetry Documentation

Since the receiver gathers telemetry for the cluster as a whole, only one instance of the receiver is needed across the cluster in order to collect all the data.

---
apiVersion: opentelemetry.io/v1alpha1
kind: OpenTelemetryCollector
metadata:
  name: dynatrace-events
  namespace: dynatrace
spec:
  envFrom:
  - secretRef:
      name: dynatrace-otelcol-dt-api-credentials
  mode: "deployment"
  image: "otel/opentelemetry-collector-contrib:0.103.0"

Command:

kubectl apply -f opentelemetry/collector/events/otel-collector-events-crd-01.yaml

Sample output:

opentelemetrycollector.opentelemetry.io/dynatrace-events created

Validate running pod(s)

Command:

kubectl get pods -n dynatrace

Sample output:

NAME	READY	STATUS	RESTARTS	AGE
dynatrace-events-collector-559d5b9d77-rb26d	1/1	Running	0	1m

Generate Events#

Generate events using deployment scale command

Kubernetes Documentation

We can generate new Kubernetes events related to the astronomy-shop namespace by scaling a deployment up and then scaling it back down.

Command:

kubectl scale deployment astronomy-shop-imageprovider -n astronomy-shop --replicas=2

Sample output:

deployment.apps/astronomy-shop-imageprovider scaled

Command:

kubectl scale deployment astronomy-shop-imageprovider -n astronomy-shop --replicas=1

Sample output:

deployment.apps/astronomy-shop-imageprovider scaled

Query logs in Dynatrace

DQL:

fetch logs
| filter dynatrace.otel.collector == "dynatrace-events" and event.domain == "k8s" and k8s.resource.name == "events"
| filter object.metadata.namespace == "astronomy-shop"
| sort timestamp desc
| limit 100
| fields timestamp, k8s.cluster.name, {object.metadata.namespace, alias: k8s.namespace.name}, object.message, object.reason, event.name

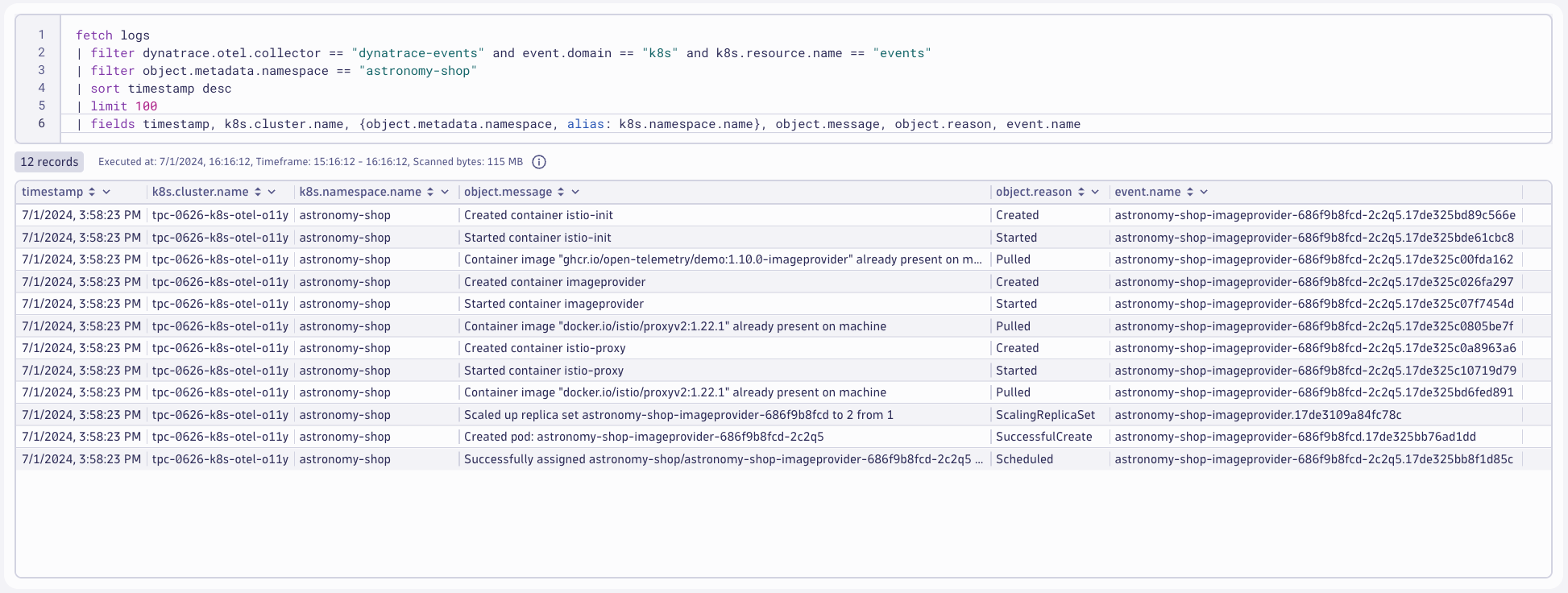

Result:

dql_k8s_events

Wrap Up#

What You Learned Today#

By completing this lab, you've successfully deployed the OpenTelemetry Collector to collect logs, enrich log attributes for better context, and ship those logs to Dynatrace for analysis.

The OpenTelemetry Collector was deployed as a DaemonSet, behaving as an Agent running on each Node
The Dynatrace Distro of OpenTelemetry Collector includes supported modules needed to ship logs to Dynatrace
- The filelog receiver scrapes logs from the Node filesystem and parses the contents
- The otlp receiver receives logs that are exported from agents, SDKs, and other Collectors
- The k8sattributes processor enriches the logs with Kubernetes attributes
- The resourcedetection processor enriches the logs with cloud and cluster attributes
- The resource processor enriches the logs with custom (resource) attributes
The Community Contrib Distro of OpenTelemetry Collector includes modules needed to ship events to Dynatrace
- The k8sobjects receiver watches for Kubernetes events (and other resources) on the cluster
Dynatrace DQL (via Notebooks) allows you to perform powerful queries and analysis of the log data

Continue#

In the next section, we'll ship traces and spans from Kubernetes to Dynatrace using OpenTelemetry.

Continue to OpenTelemetry Traces

OpenTelemetry Logs#

Prerequisites#

OpenTelemetry Collector for Logs#

Deploy OpenTelemetry Collector#

filelog Receiver#

k8sattributes Processor#

Configure Kubernetes RBAC#

Add k8sattributes Processor#

resourcedetection Processor#

Add resourcedetection Processor#

resource Processor#

Add resource Processor#

OTLP Exporter#

Customize astronomy-shop helm values#

OpenTelemetry Collector for Events#

k8sobjects Receiver#

Configure Kubernetes RBAC#

Generate Events#

Wrap Up#

What You Learned Today#

Continue#

`filelog` Receiver#

Add `k8sattributes` Processor#

Add `resourcedetection` Processor#

Add `resource` Processor#

`k8sobjects` Receiver#
