Configure Dynatrace#
You can configure log ingestion rules in Dynatrace to control which logs should be collected from your Kubernetes environment. The rules leverage Kubernetes metadata and other common log entry attributes to determine which logs are to be ingested. The standard log processing features from OneAgent, including sensitive data masking, timestamp configuration, log boundary definition, and automatic enrichment of log records, are also available for Kubernetes logs.
Dynatrace Automatic Log Ingest
Dynatrace automatically discovers and analyzes new log files, including Kubernetes pod logs. The out-of-the-box configuration will discover, parse, and ingest the logs from our astroshop application. In order to exercise some of the advanced log monitoring configurations, we'll ingest sample CronJobs with logs that will need further configuration.
Ingest CronJob Logs#
Dynatrace log ingest configuration allows you to remotely configure installed OneAgents to either include specific log sources for forwarding to Dynatrace or exclude them from upload. While log discovery refers to the automatic detection of log files so that no additional log source configuration effort is required on your environment, log ingestion involves the process of collecting logs and sending required log sources into Dynatrace.
Log ingest configuration is based on rules that use matchers to target process groups, content, log levels, log paths, and other attributes described in this document. These rules determine which log files are ingested among those automatically detected by OneAgent or defined as custom log sources.

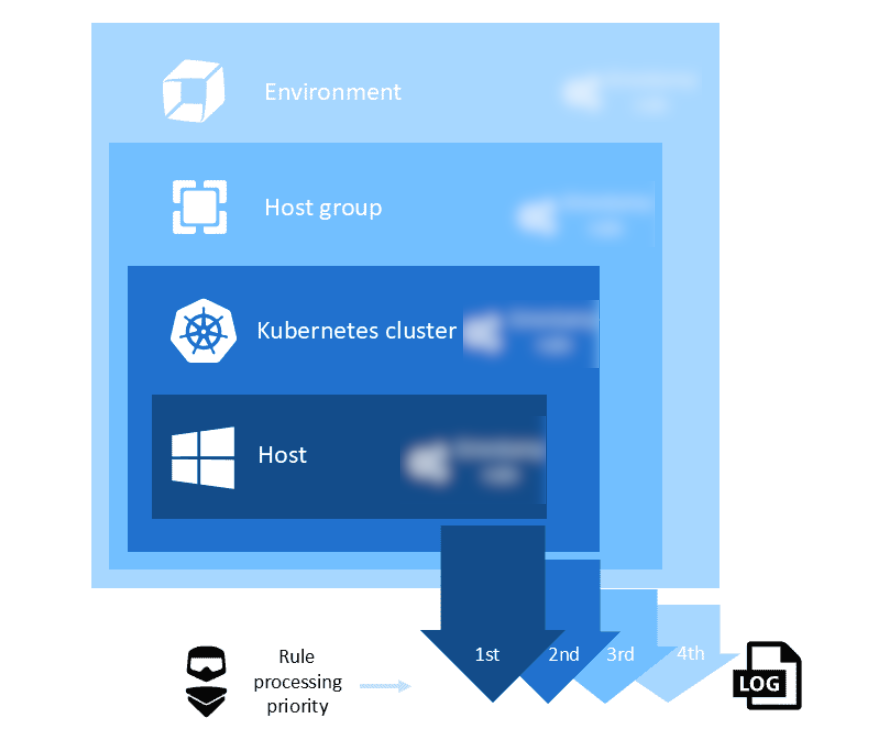

Log ingest rules are ordered configurations processed from top to bottom. For higher configuration granularity, log ingest rules can be defined at four scopes: host, Kubernetes cluster, host group, and environment, with host scope rules having the highest priority.
Log Ingest Rule#

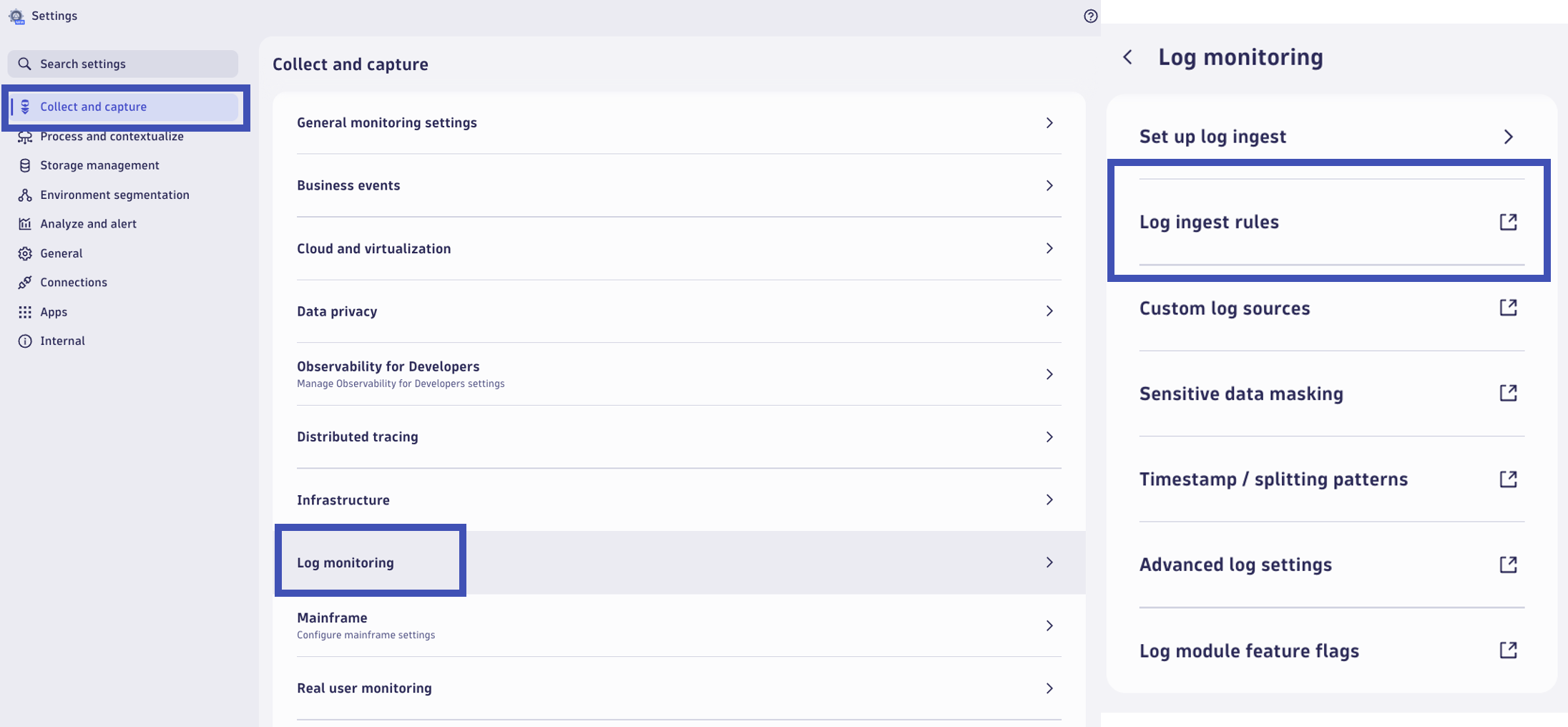

In your Dynatrace tenant, open the (new) Settings app. Select the Collect and capture submenu. Click on the Log monitoring menu. Click on Log ingest rules to open the setting in the Settings Classic app.

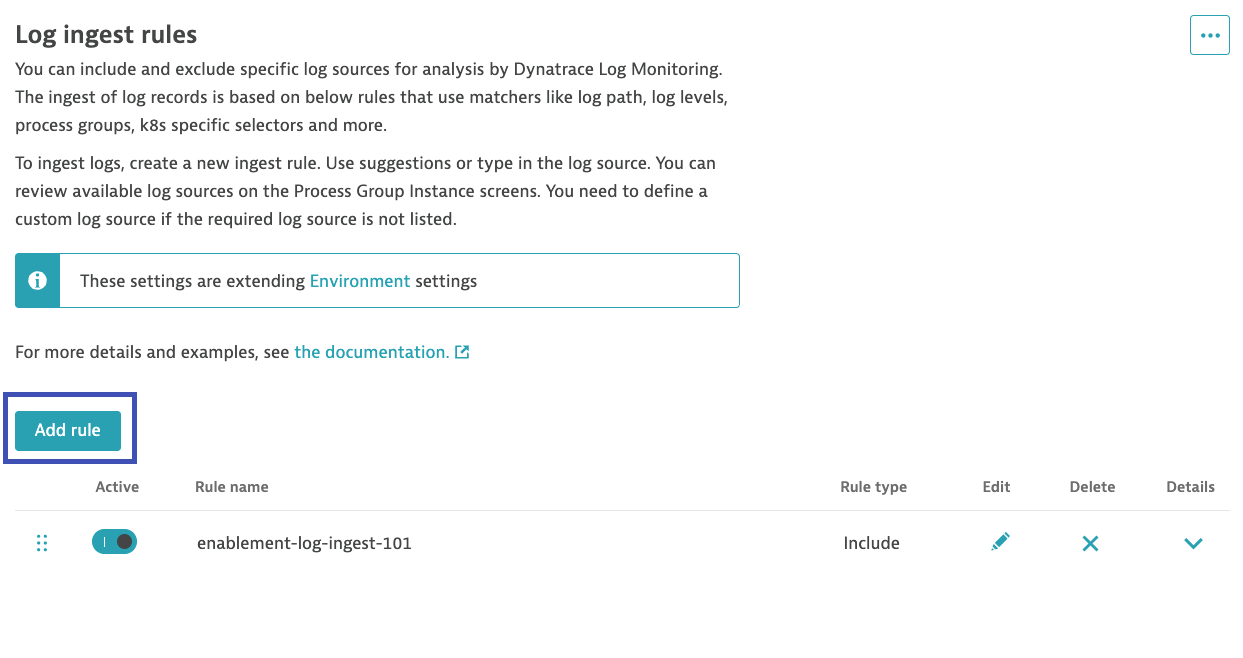

Here you will find the log ingest rules set at the environment-level. Rules configured here will be inherited by every host group, Kubernetes cluster, and host in the environment. However, these settings can be overridden at the granular entity-level.

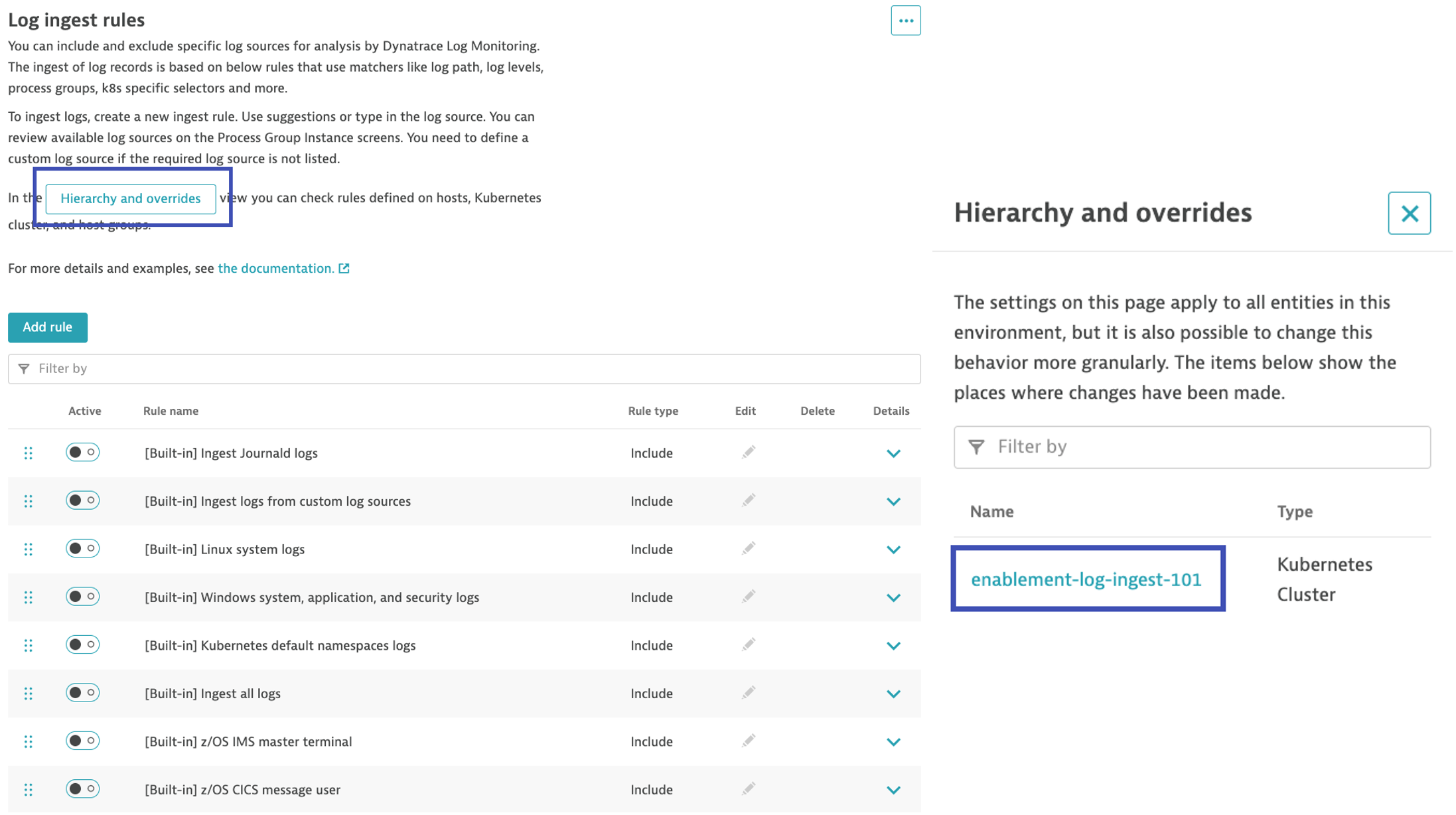

Click on Hierarchy and overrides. Locate your Kubernetes cluster override for enablement-log-ingest-101 and click on it.

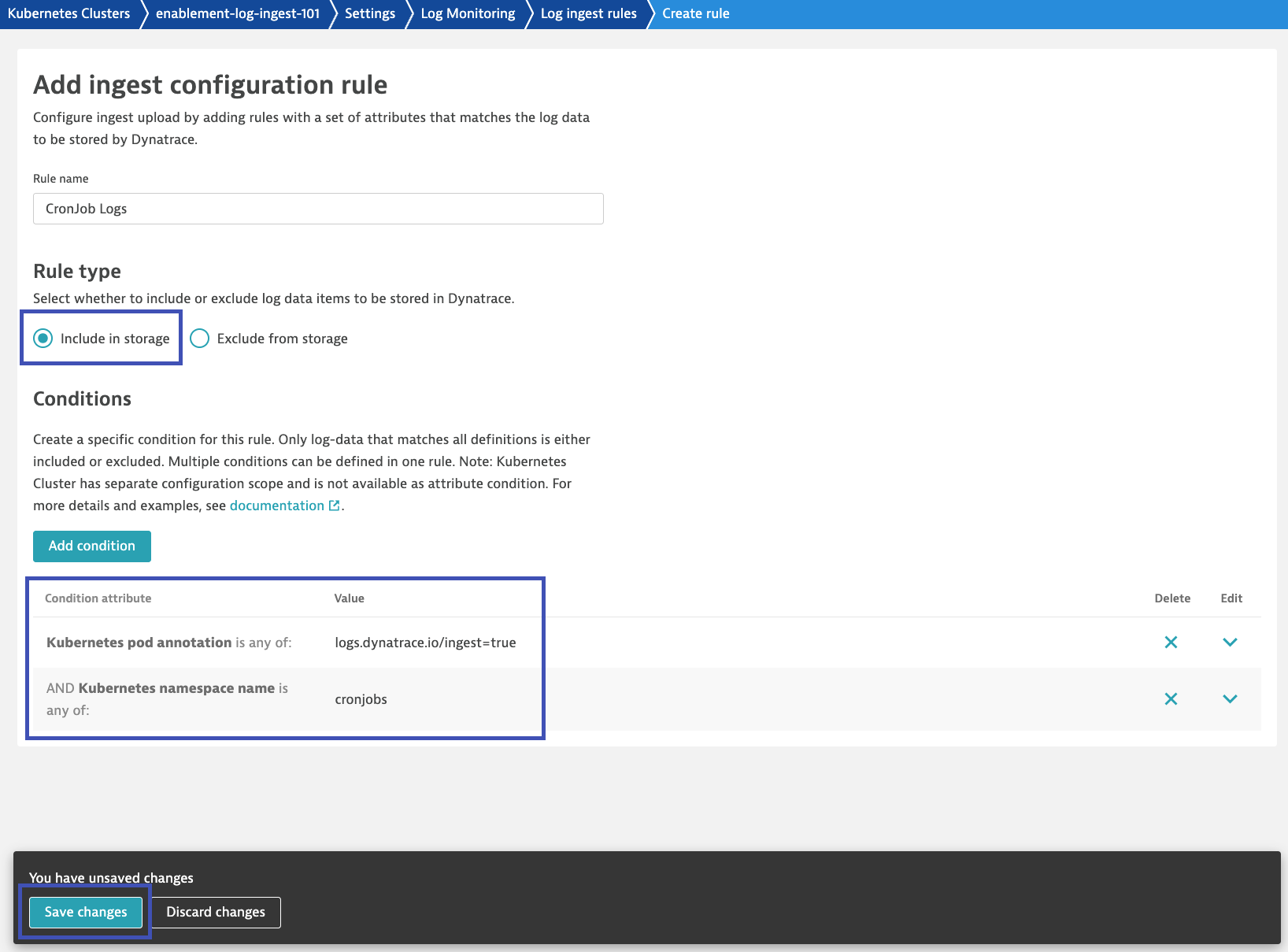

Add a new rule that will capture logs from specific pods within the cronjobs namespace. Click on Add rule.
Configure the rule with the following details:
Rule Name:
CronJob Logs
Rule Type:
Include in storage
Conditions:
Kubernetes namespace name is
cronjobs
Kubernetes pod annotation is
logs.dynatrace.io/ingest=true
This rule will enable the Log Module to collect logs from pods that belong to the cronjobs namespace AND have the annotation logs.dynatrace.io/ingest: true.
However, for this use case, configuring this rule alone will not start capturing these logs...
Log Module Feature Flag#
Log Autodiscovery
Logs will automatically be discovered by Dynatrace (OneAgent & Log Module). However, not all logs may be discovered by default. A log file must meet all of the autodiscovery requirements to be autodiscovered!
An enhancement to the log module for Kubernetes introduces a feature that enables Dynatrace to capture all container logs, even those that do not meet the autodiscovery requirements. The logs from the CronJobs are written by a container echoing a message to stdout. This prevents them from meeting the autodiscovery requirements, thus we will need to enable the feature flag to collect all container logs.

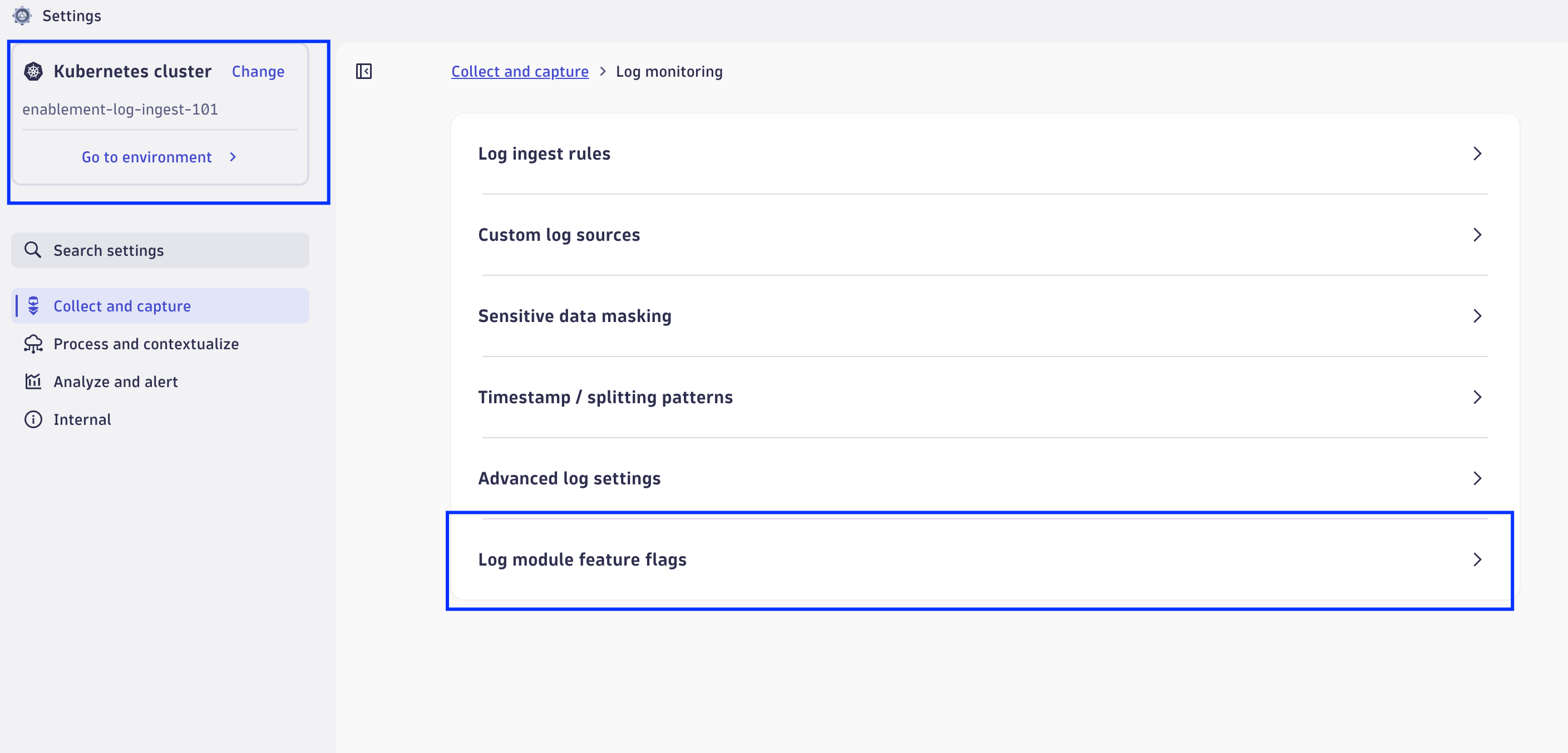

In your Dynatrace tenant, return to the Kubernetes settings for your cluster where you configured the log ingest rule. In the Log Monitoring section, click on Log module feature flags. Enable the setting Collect all container logs. Click on Save changes.
With this feature enabled and the log ingest rule configured, Dynatrace will now start to collect logs from the CronJob containers.
Query CronJob Logs#

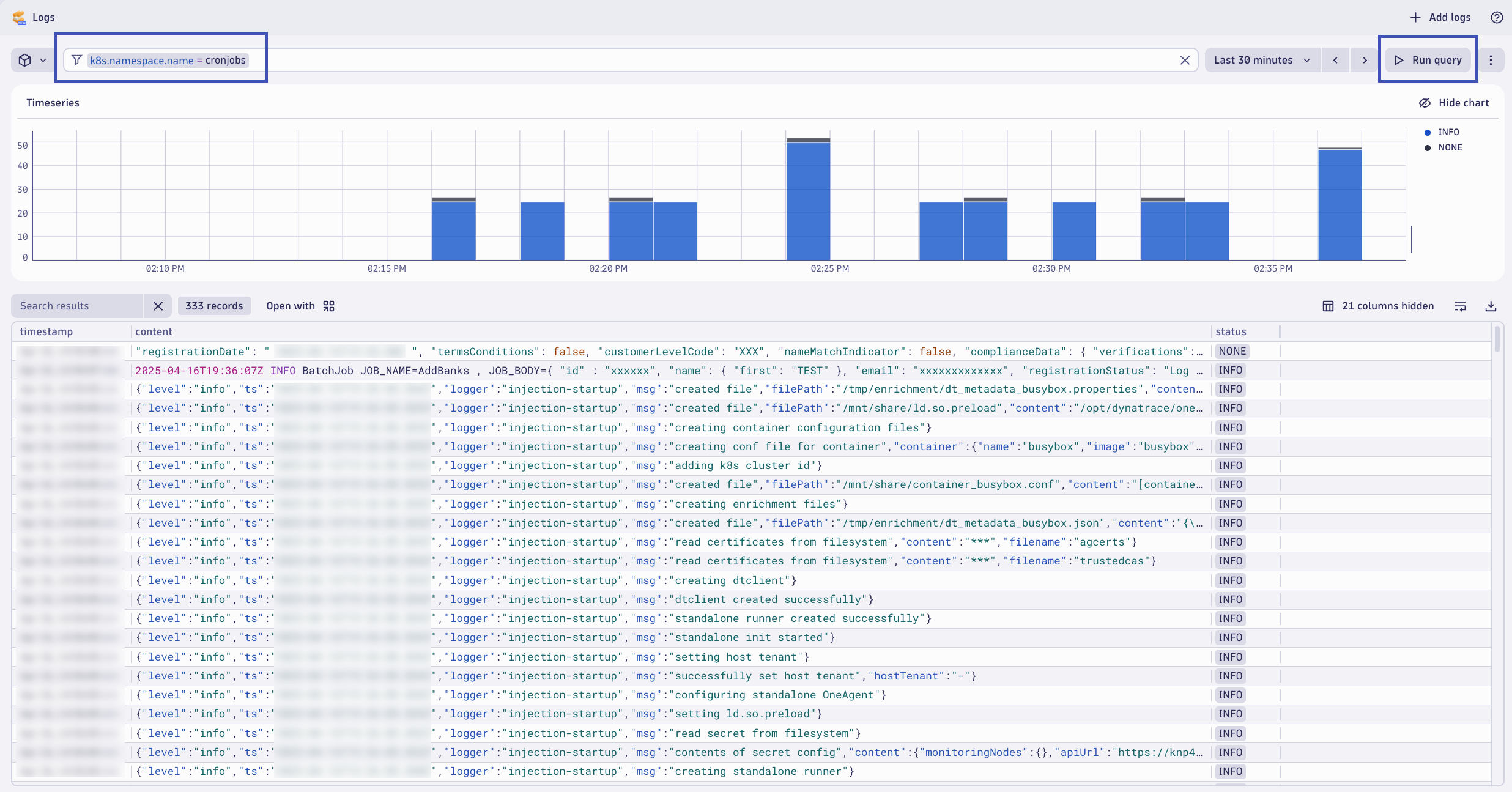

Validate that the logs are now being ingested into Dynatrace. Open the Logs app. Filter the logs on the cronjobs namespace and click Run query.
k8s.namespace.name = cronjobs
Configure Sensitive Data Masking#
Specific log messages may include user names, email addresses, URL parameters, and other information that you may not want to disclose. Log Monitoring features the ability to mask any information by modifying the configuration file on each OneAgent that handles information you consider to be sensitive.
Masking is performed directly on OneAgent, ensuring that sensitive data are never ingested into the system.
Within our CronJob logs, the log-message-cronjob writes out a message containing an email address. While this email address isn't real, we can use it as an example of sensitive data masking.
$TIMESTAMP INFO Log message from cronjob. email=example@dynatrace.io Ending job.
Built-In Sensitive Data Masking

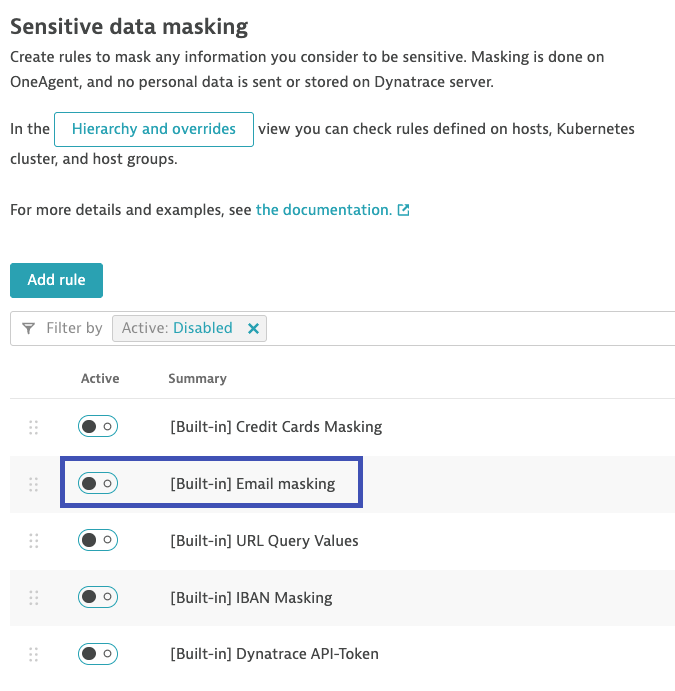

Dynatrace includes built-in sensitive data masking rules for email address, credit cards, URL queries, IBAN, and API-Tokens at the Environment-level. If these settings are enabled, that may have already caused the email address in the CronJob log to be masked.
Sensitive Data Masking Rule#

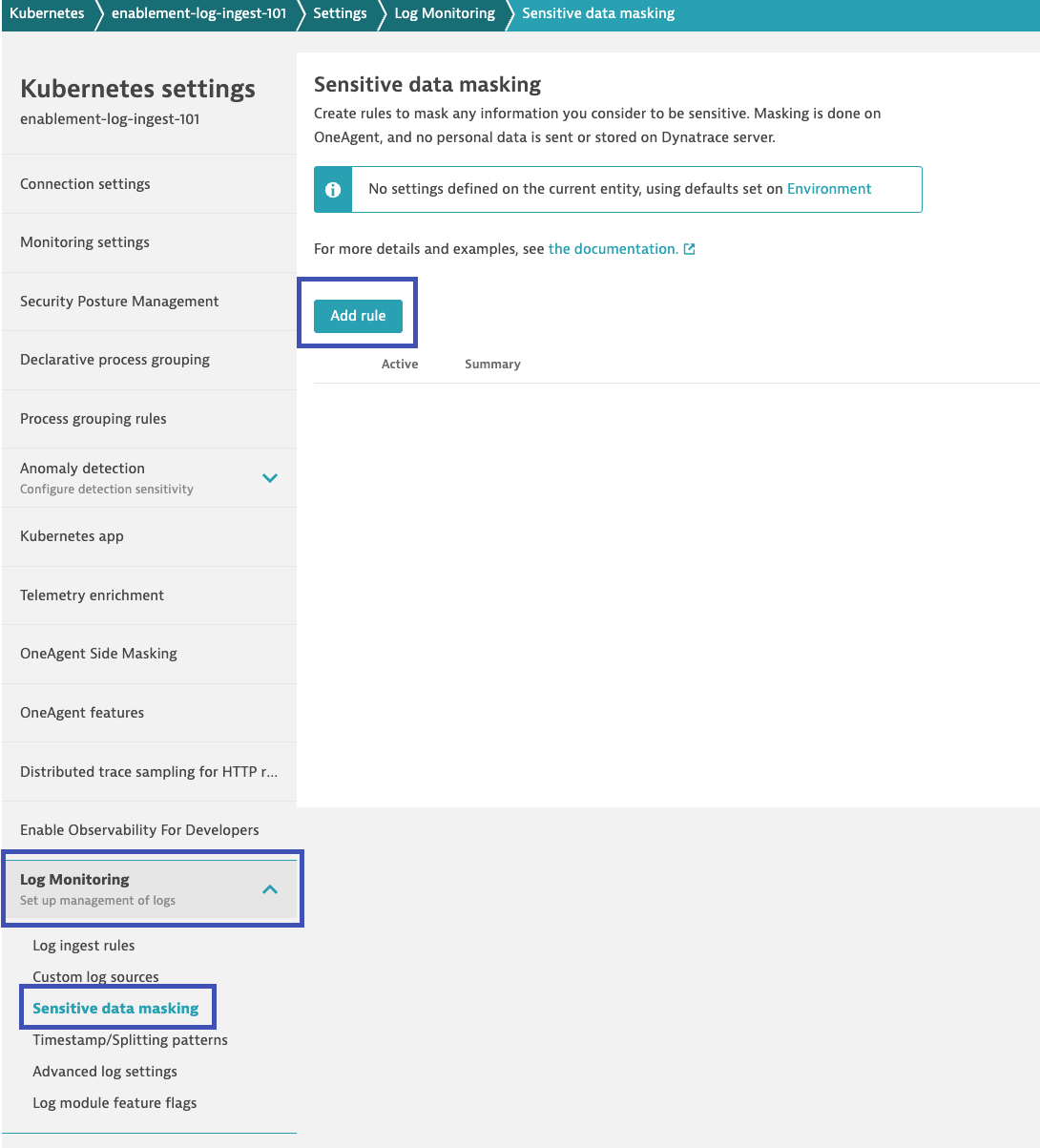

In your Dynatrace tenant, return to the Kubernetes settings for your cluster where you configured the log ingest rule. In the Log Monitoring section, click on Sensitive data masking. Click on Add rule.

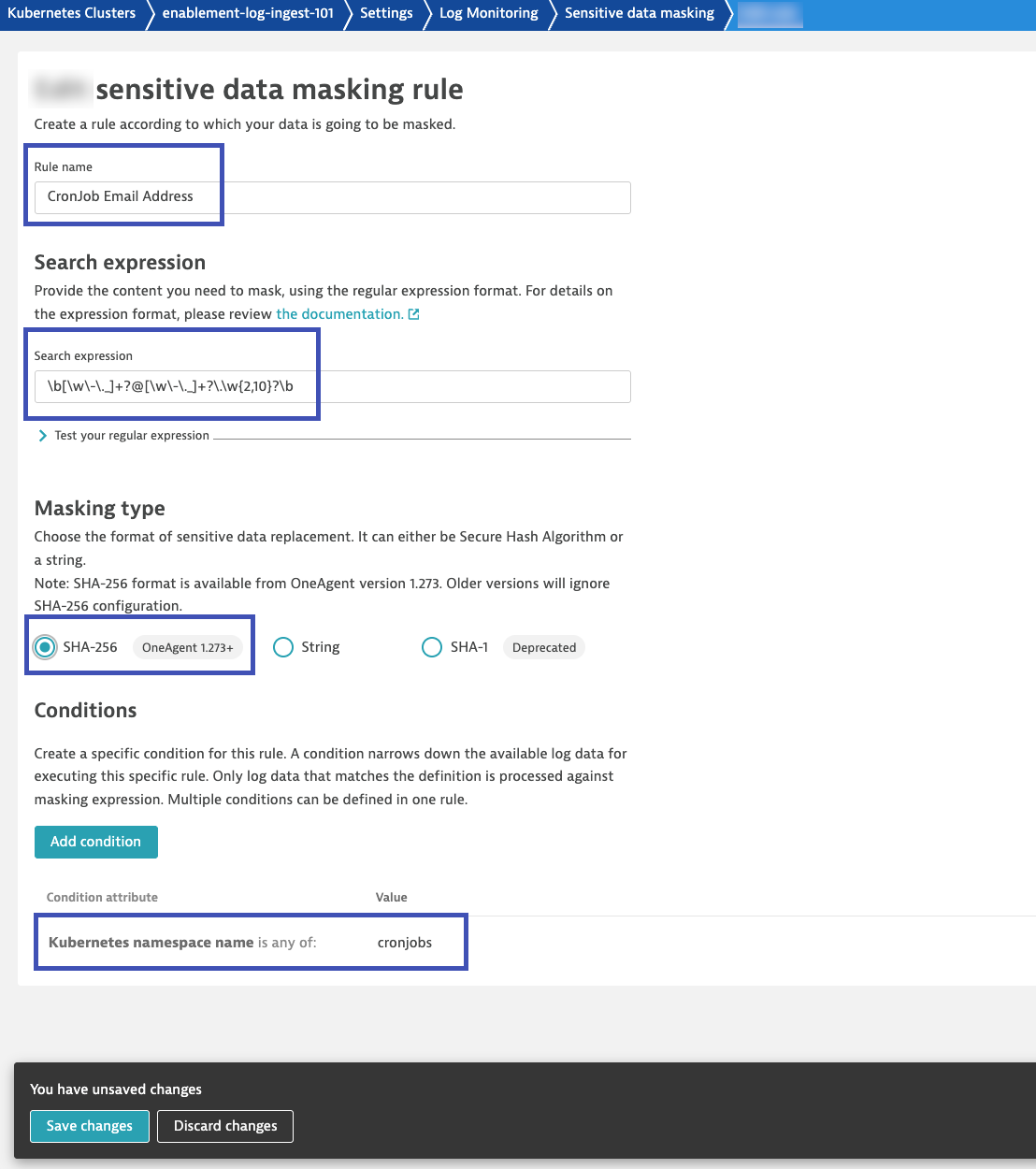

Configure the rule with the following details:
Rule Name:
CronJob Email Address
Search Expression:
\b[\w\-\._]+?@[\w\-\._]+?\.\w{2,10}?\b
Masking Type:
SHA-256
Conditions:
Kubernetes namespace name is
cronjobs
The advantage of using the SHA-256 masking type is that every unique value (email address) will produce a unique hash value. This may enable you to see if the log contains the same email address or different email addresses. However, you will obviously not be able to decrypt what that email address is, keeping it secure!
Query CronJob Logs#
The CronJob will execute every few minutes. Allow some time for the job to run again and produce new log records.

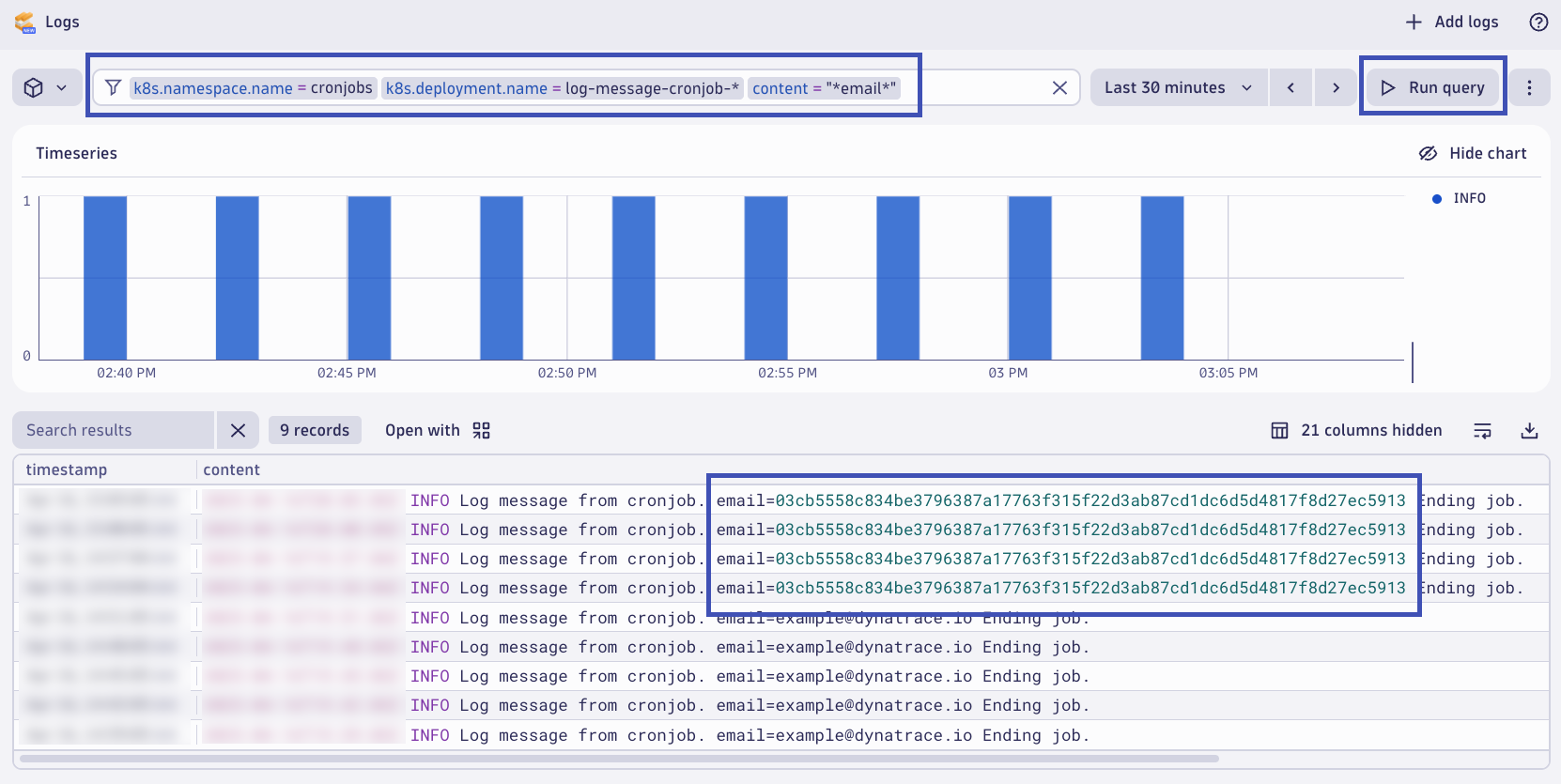

Return to the Logs app and filter on the logs that contain the email address.
k8s.namespace.name = cronjobs k8s.deployment.name = log-message-cronjob-* content = "*email*"
The logs now contain the hashed value of the email address, 03cb5558c834be3796387a17763f315f22d3ab87cd1dc6d5d4817f8d27ec5913.
Configure Timestamp/Splitting Patterns#
By default, log monitoring automatically detects only the most common and unambiguous subset of date formats supported. Each time a timestamp pattern is detected, the line will be treated as the beginning of the log entry. All following lines without a detected timestamp will be treated as a continuation and reported as a single multi-line log record.
In the event that a multi-line log record contains another supported timestamp, it is likely that Dynatrace will treat that line as a new log record. If this is not the desired result, a timestamp configuration rule can be created to change this behavior.
In our CronJob logs, the timestamp-cronjob writes a multi-line log record that contains multiple timestamps. Dynatrace treats the extra timestamps as new log lines. We want this log record to be treated as a single record.

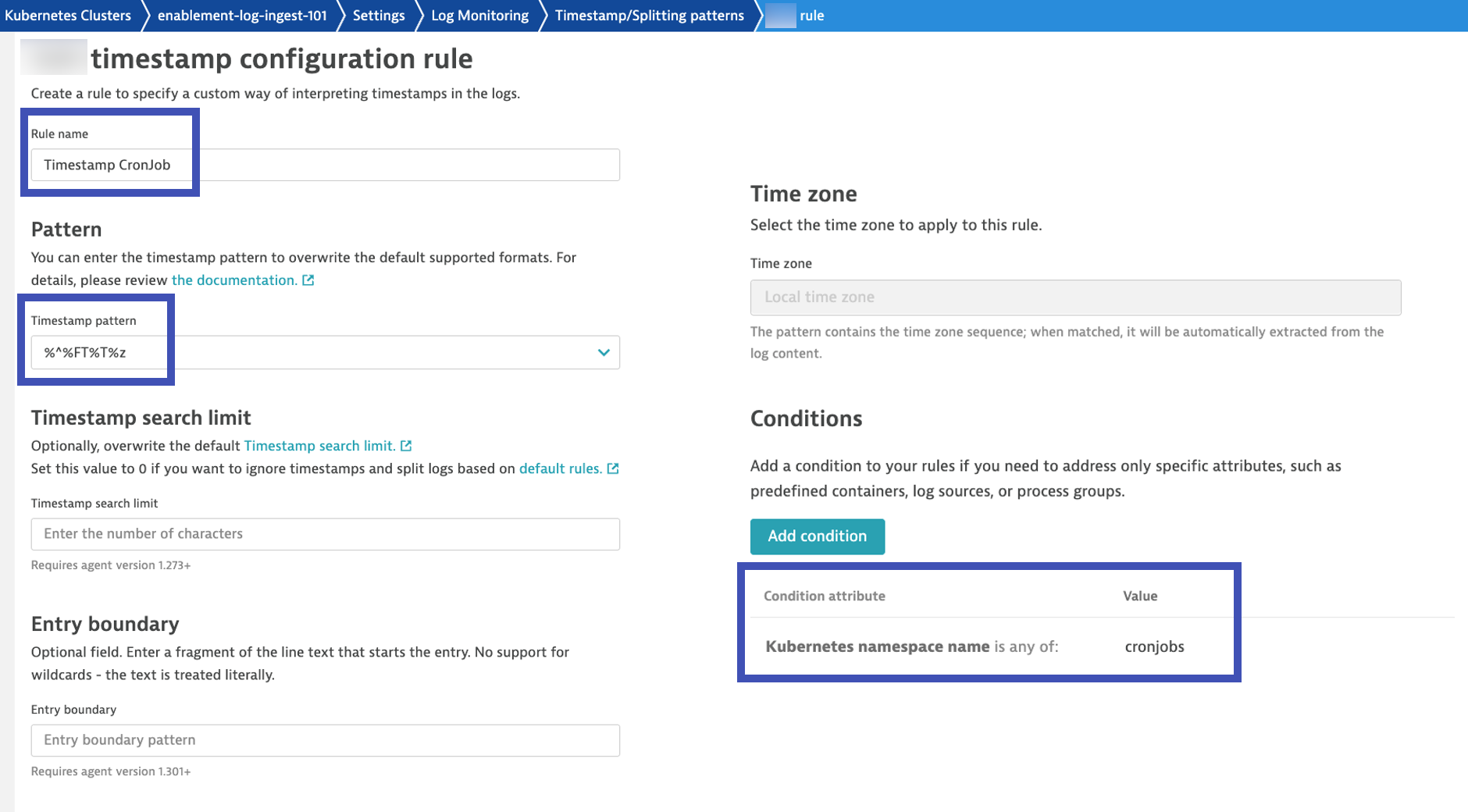

Timestamp Configuration Rule#

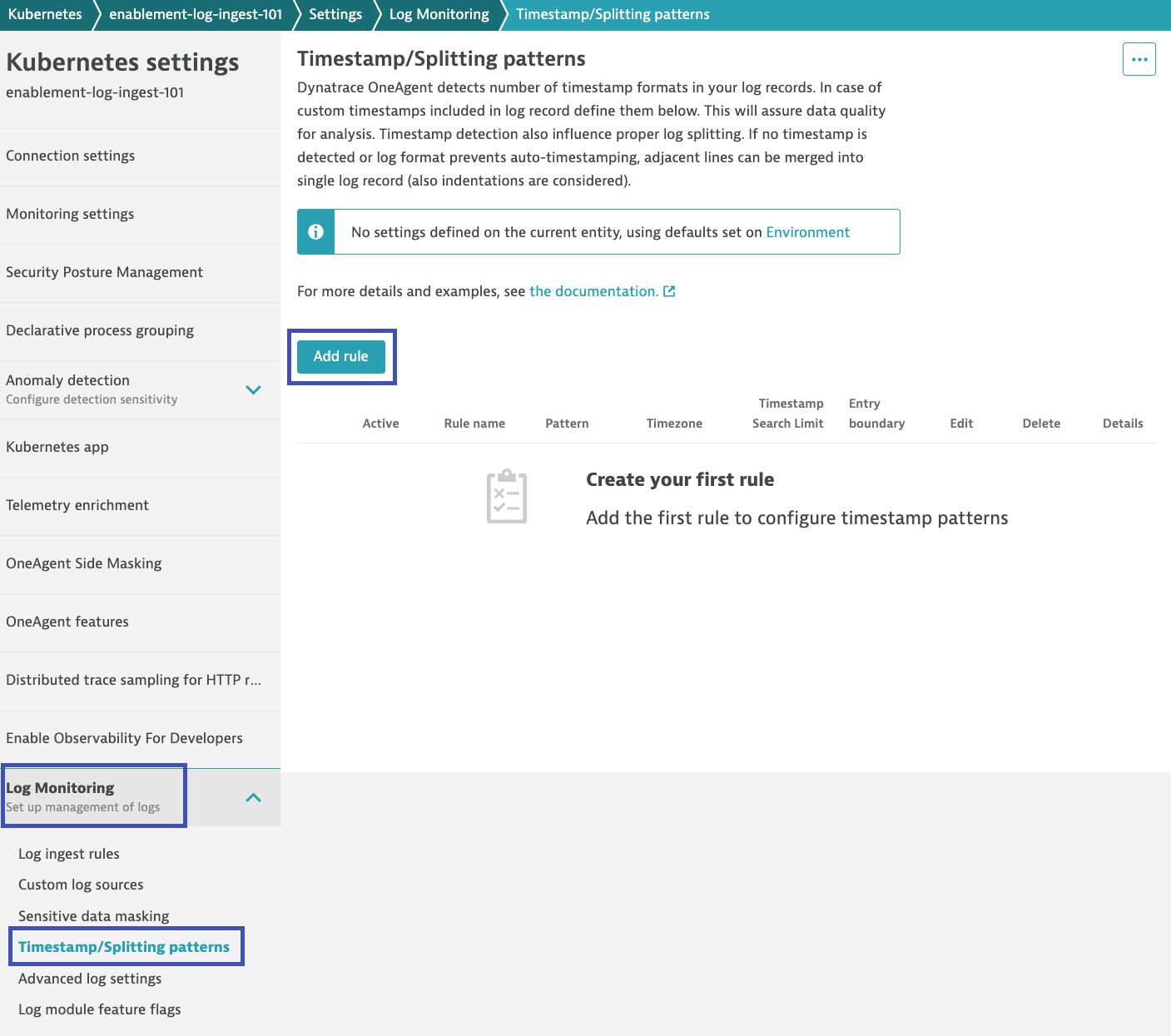

In your Dynatrace tenant, return to the Kubernetes settings for your cluster where you configured the log ingest rule. In the Log Monitoring section, click on Timestamp/Splitting patterns. Click on Add rule.
Configure the rule with the following details:
Rule Name:
Timestamp CronJob
Search Expression:
%^%FT%T%z
Conditions:
Kubernetes namespace name is
cronjobs
Here is a breakdown of our pattern:
| Entry | Description |
|---|---|
| %^ | Matches timestamp patterns only at the start of a log line |
| %F | Shortcut for %Y-%m-%d, 2025-11-30 for example |
| T | The literal character 'T' as found in the ISO 8601 format |
| %T | Shortcut for %H-%M-%S, 12:30:01 for example |
| %z | Timezone indicator as found in the ISO 8601 format |
This rule will cause Dynatrace to stop splitting log records on new lines with timestamps, since they don't appear at the beginning of the log record.
Query Logs#
The CronJob will execute every few minutes. Allow some time for the job to run again and produce new log records.
Return to the Logs app and filter on the logs that contain the multiple timestamps.
k8s.namespace.name = cronjobs content != "*injection-startup*" k8s.workload.name="timestamp-cronjob"
Each log message is now treated as a single, multi-line, log record containing the entire message.
Ingest Dynatrace Logs#
In some cases, you may want to collect container logs from the Dynatrace components running in the dynatrace namespace. By default, collection of these logs is disabled, even if you have a log ingest rule configured to do so. Logs collected from the Dynatrace components are treated like any other log that you ingest - it consumes licensing, storage, etc.

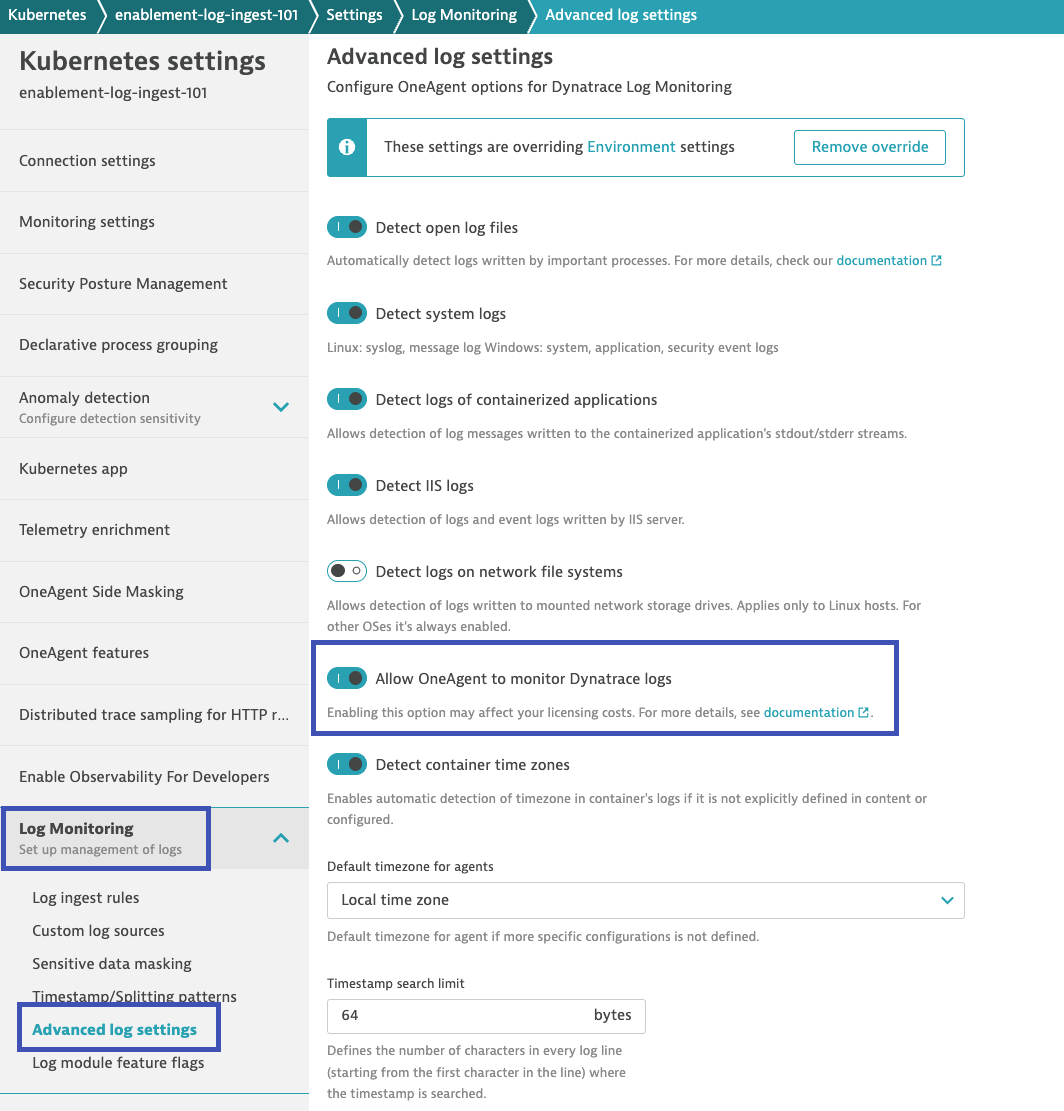

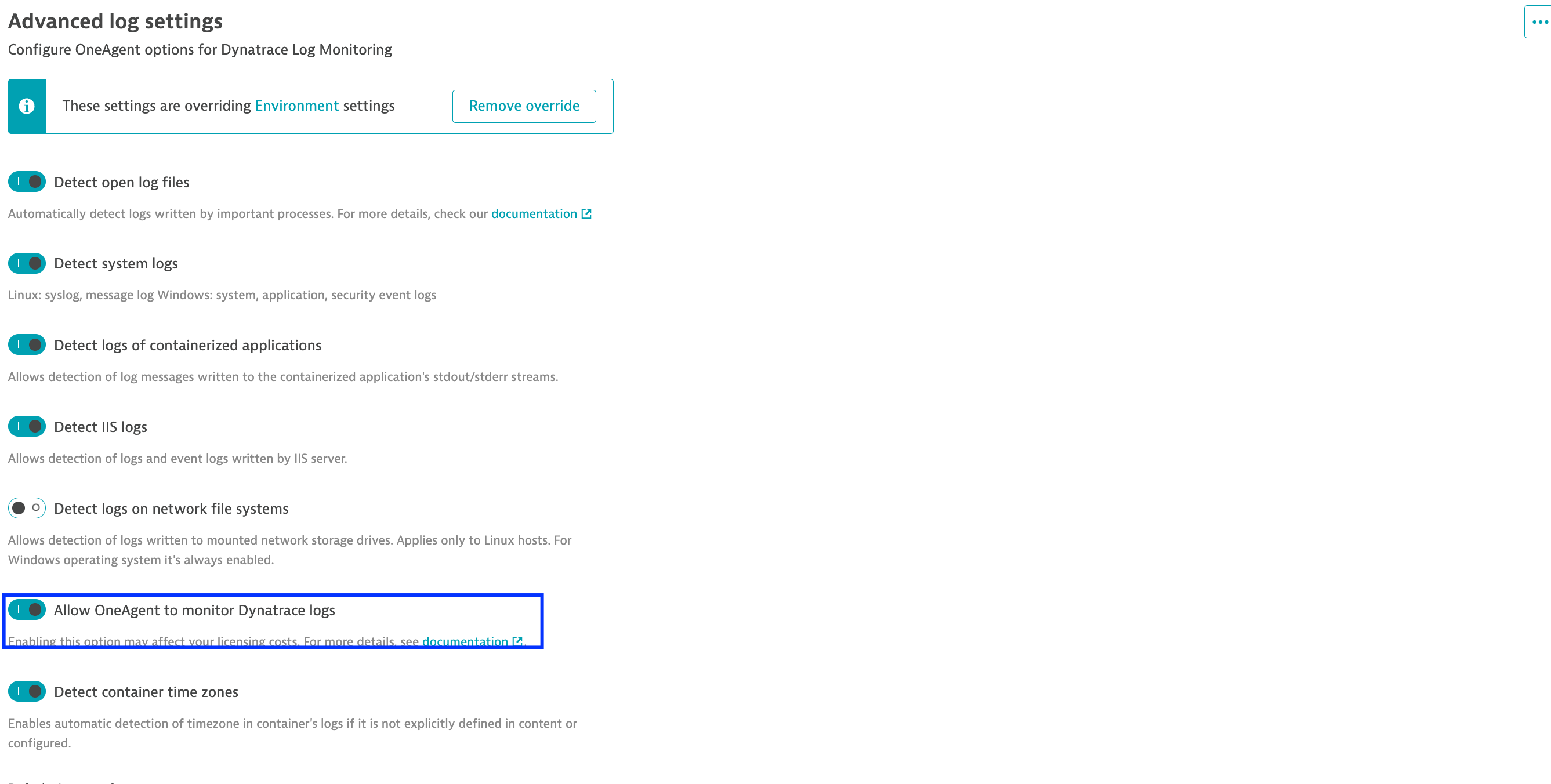

In your Dynatrace tenant, return to the Kubernetes settings for your cluster where you configured the log ingest rule. In the Log Monitoring section, click on Advanced log settings. Enable the setting Allow OneAgent to monitor Dynatrace logs. Click on Save changes.
This allows the Log Module to discover the Dynatrace component logs. However, we need to add an ingest rule to ship them to Dynatrace.

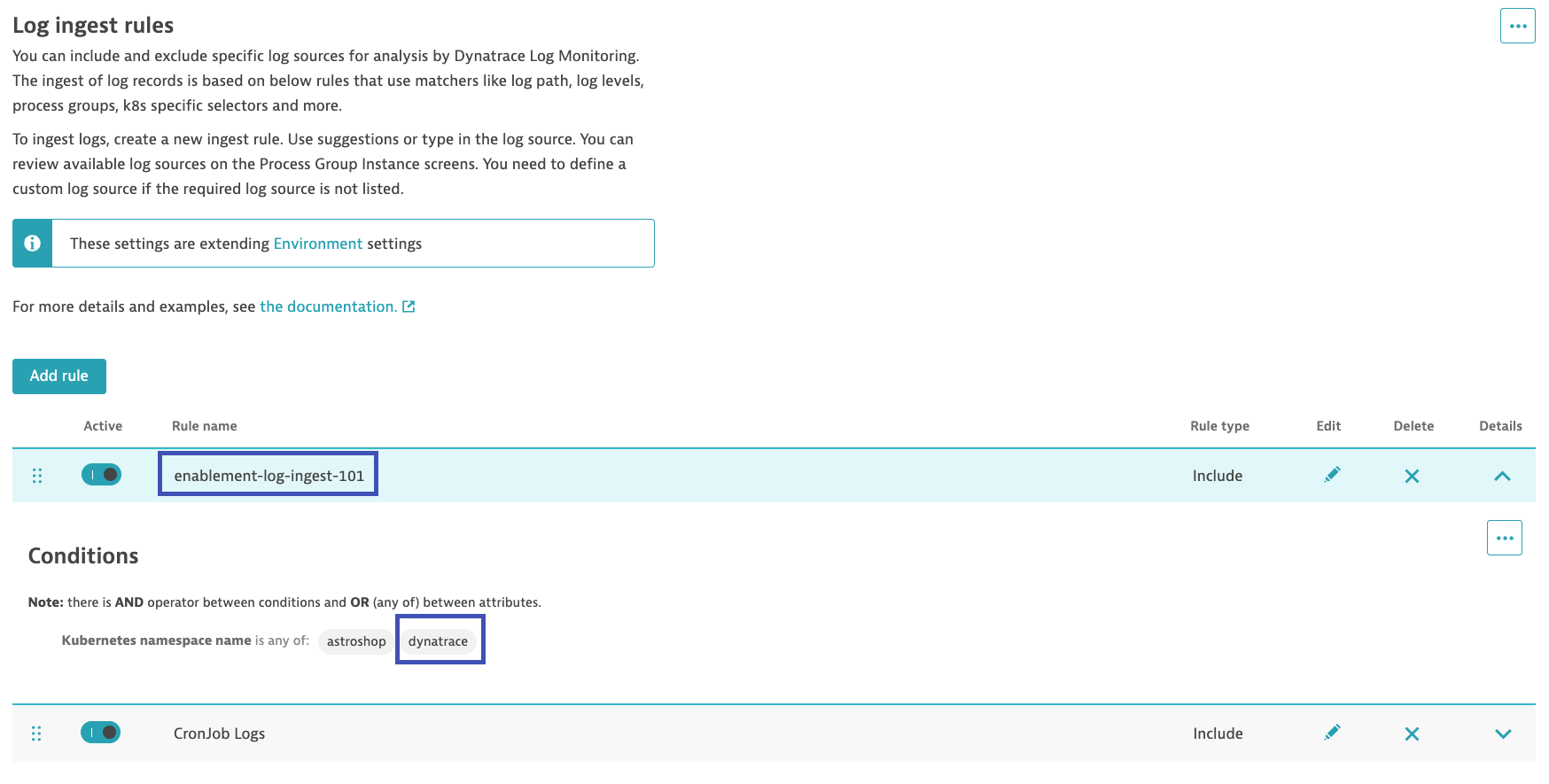

In the Log Monitoring section, click on Log ingest rules. Modify your existing rule called enablement-log-ingest-101 and add the dynatrace namespace to the matcher. Save your changes.
Query Logs#

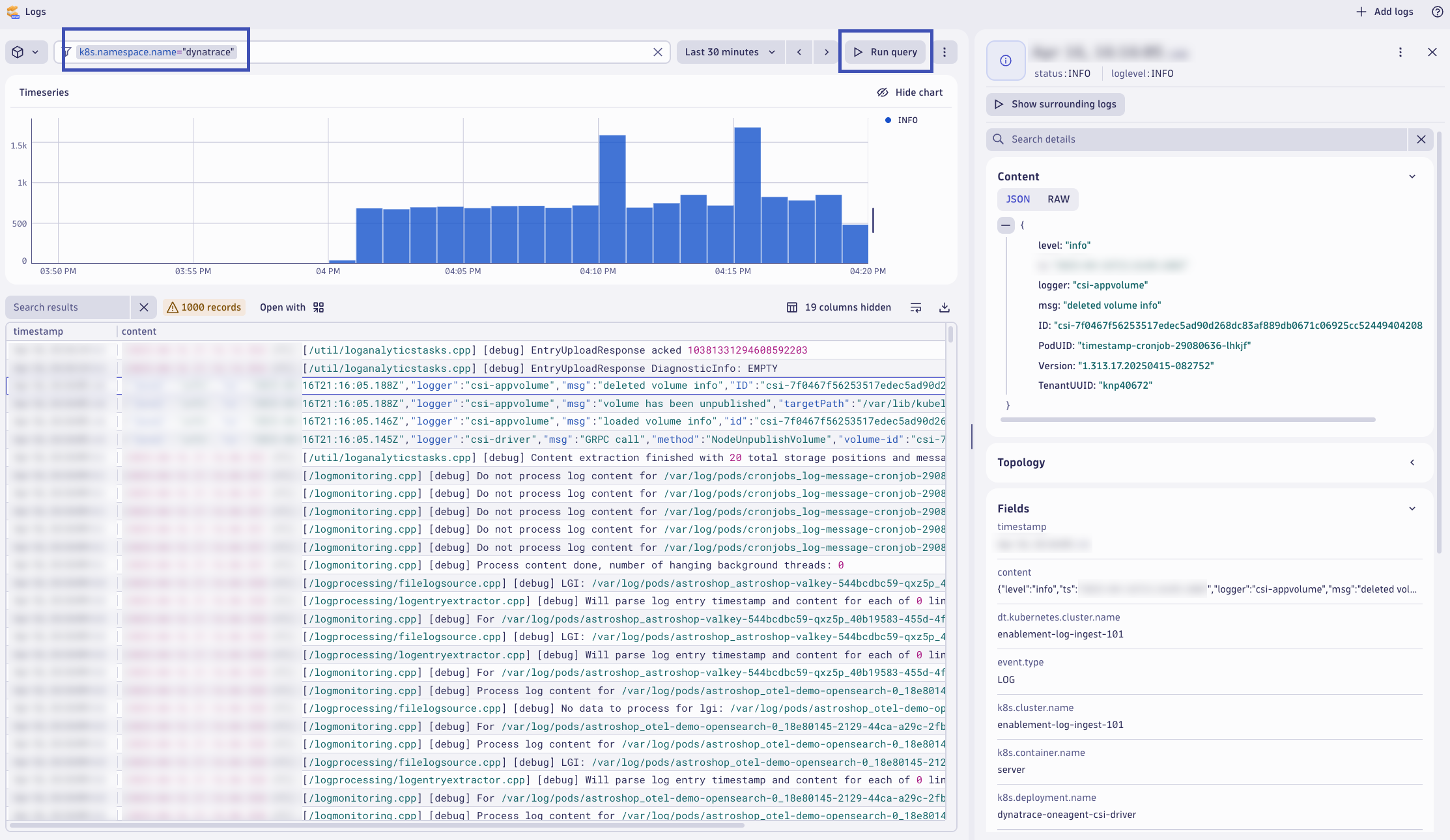

Return to the Logs app and filter on the logs from the dynatrace namespace.
k8s.namespace.name = dynatrace
Troubleshooting Observability issues with Dynatrace
These logs can help with troubleshooting any observability issues on the Kubernetes cluster. However, it is the Log Module that is collecting these logs, so if the Log Module is not working - the logs won't be shipped to Dynatrace!
Configure OpenPipeline#

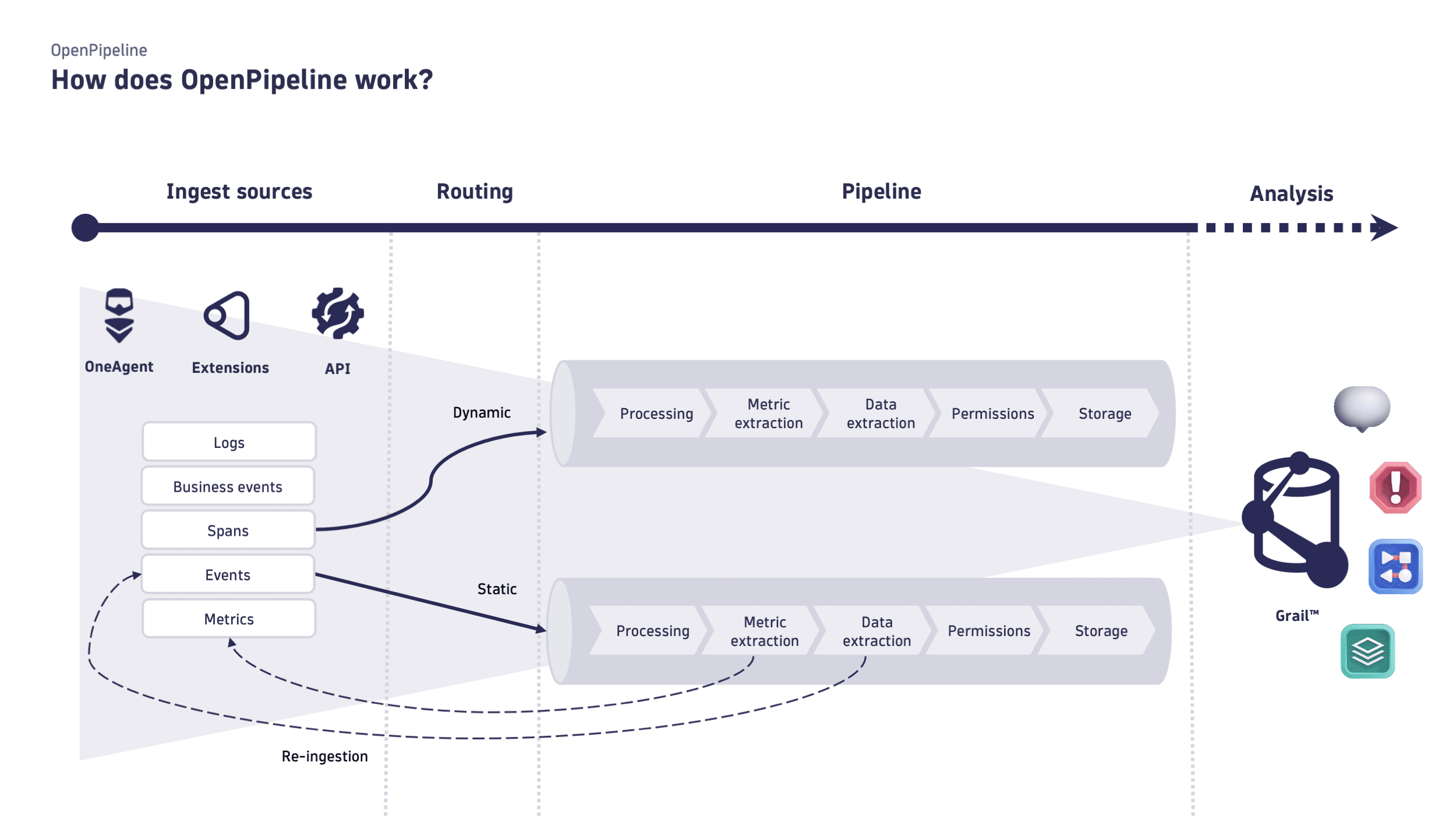

OpenPipeline is the Dynatrace data handling solution to seamlessly ingest and process data from different sources, at any scale, and in any format in the Dynatrace Platform.
Dynatrace OpenPipeline can reshape incoming data for better understanding, processing, and analysis. OpenPipeline processing is based on rules that you create and offers a flexible way of extracting value from raw records.

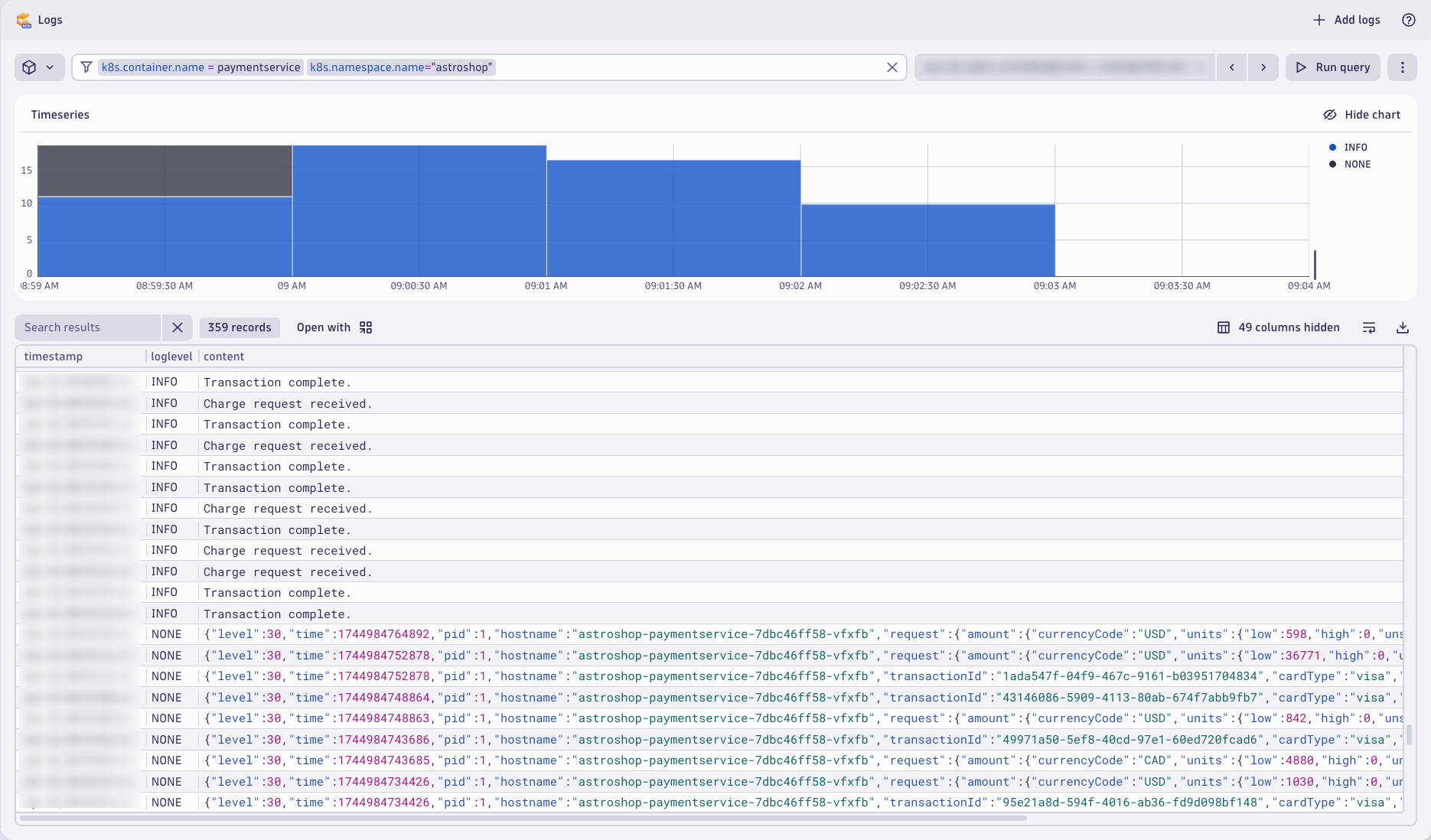

The logs written by the paymentservice within the astroshop application are missing some important context information, making them a great candidate for ingest processing with OpenPipeline.
Sample log snippet {...}
{
"level":30,
"time":1744936198898,
"pid":1,
"hostname":"astroshop-paymentservice-7dbc46ff58-4msdx",
"dt.entity.host":"HOST-815866271C8841E1",
"dt.entity.kubernetes_cluster":"KUBERNETES_CLUSTER-FD9401B313C80ED9",
"dt.entity.process_group":"PROCESS_GROUP-F8DE358ACD7BA713",
"dt.entity.process_group_instance":"PROCESS_GROUP_INSTANCE-BE5376E9380A3175",
"dt.kubernetes.cluster.id":"dfc521db-c6be-471f-9e20-24f62e45bb69",
"dt.kubernetes.workload.kind":"deployment",
"dt.kubernetes.workload.name":"astroshop-paymentservice",
"k8s.cluster.name":"enablement-log-ingest-101",
"k8s.cluster.uid":"dfc521db-c6be-471f-9e20-24f62e45bb69",
"k8s.container.name":"paymentservice",
"k8s.namespace.name":"astroshop",
"k8s.node.name":"kind-control-plane",
"k8s.pod.name":"astroshop-paymentservice-7dbc46ff58-4msdx",
"k8s.pod.uid":"8992e584-dc50-48f9-b243-1facae6d1ba5",
"k8s.workload.kind":"deployment",
"k8s.workload.name":"astroshop-paymentservice",
"process.technology":"nodejs",
"dt.trace_id":"6977c25e6f6a6b4fcc0117087990d95b",
"dt.span_id":"54f824774f71e56c",
"dt.trace_sampled":"true",
"transactionId":"f762bcae-fdb7-4f55-9576-a99273683d12",
"cardType":"visa",
"lastFourDigits":"1278",
"amount":{
"units":{
"low":1173,
"high":0,
"unsigned":false
},
"nanos":999999999,
"currencyCode":"USD"
},
"msg":"Transaction complete."
}
Configure Custom Logs Pipeline#

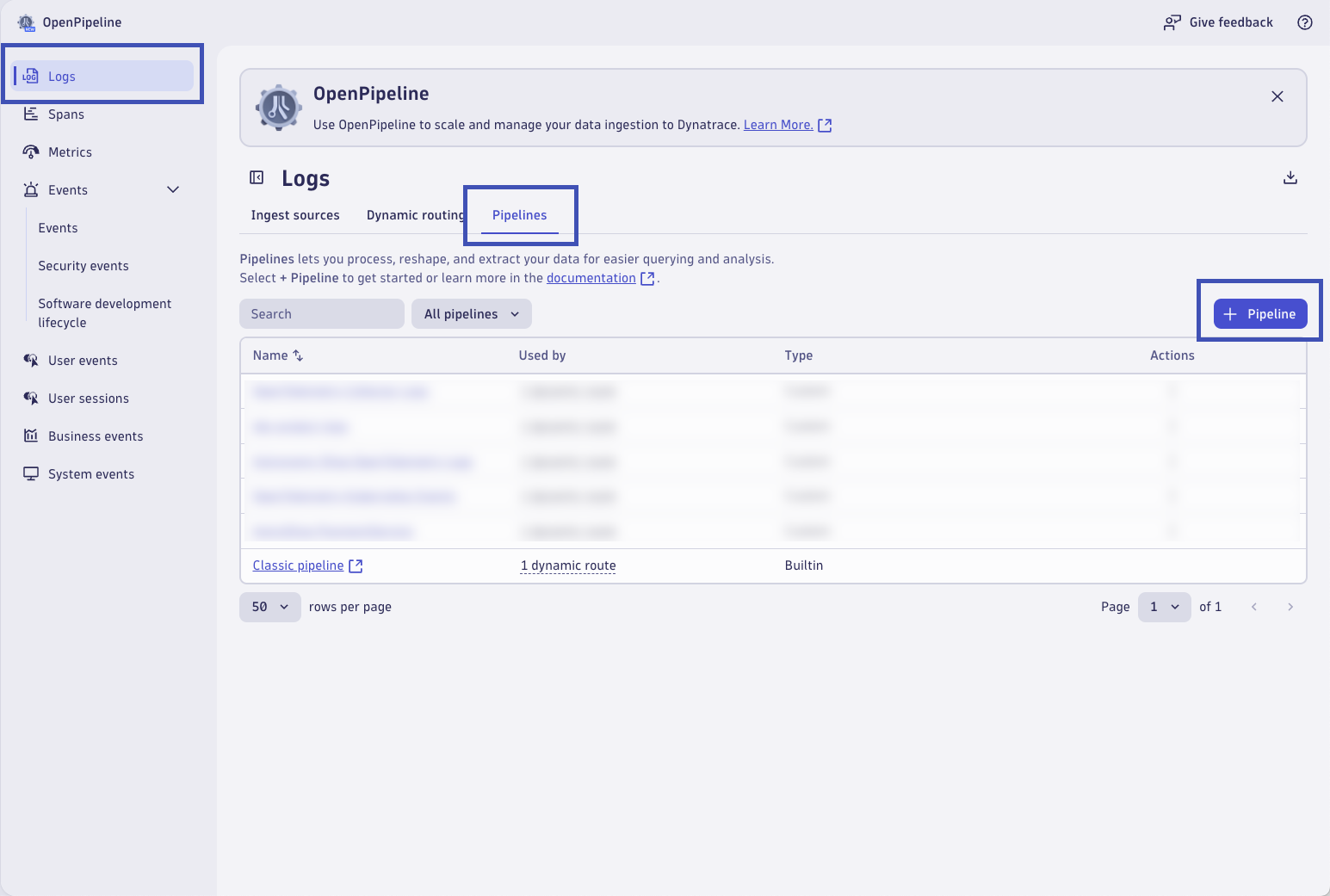

In your Dynatrace tenant, open the OpenPipeline app. Select Logs and click on the Pipelines tab. Add a new Pipeline by clicking on + Pipeline.

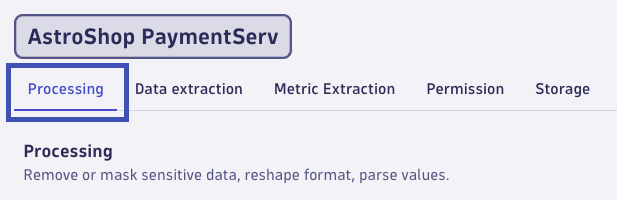

Give the new pipeline a name, AstroShop PaymentService. Click on the Processing tab to create processing rules.
Save Your Configuration
It is highly recommended to save your progress often by clicking the Save button and then re-opening your pipeline configuration to avoid losing your changes!
Processing Rules#

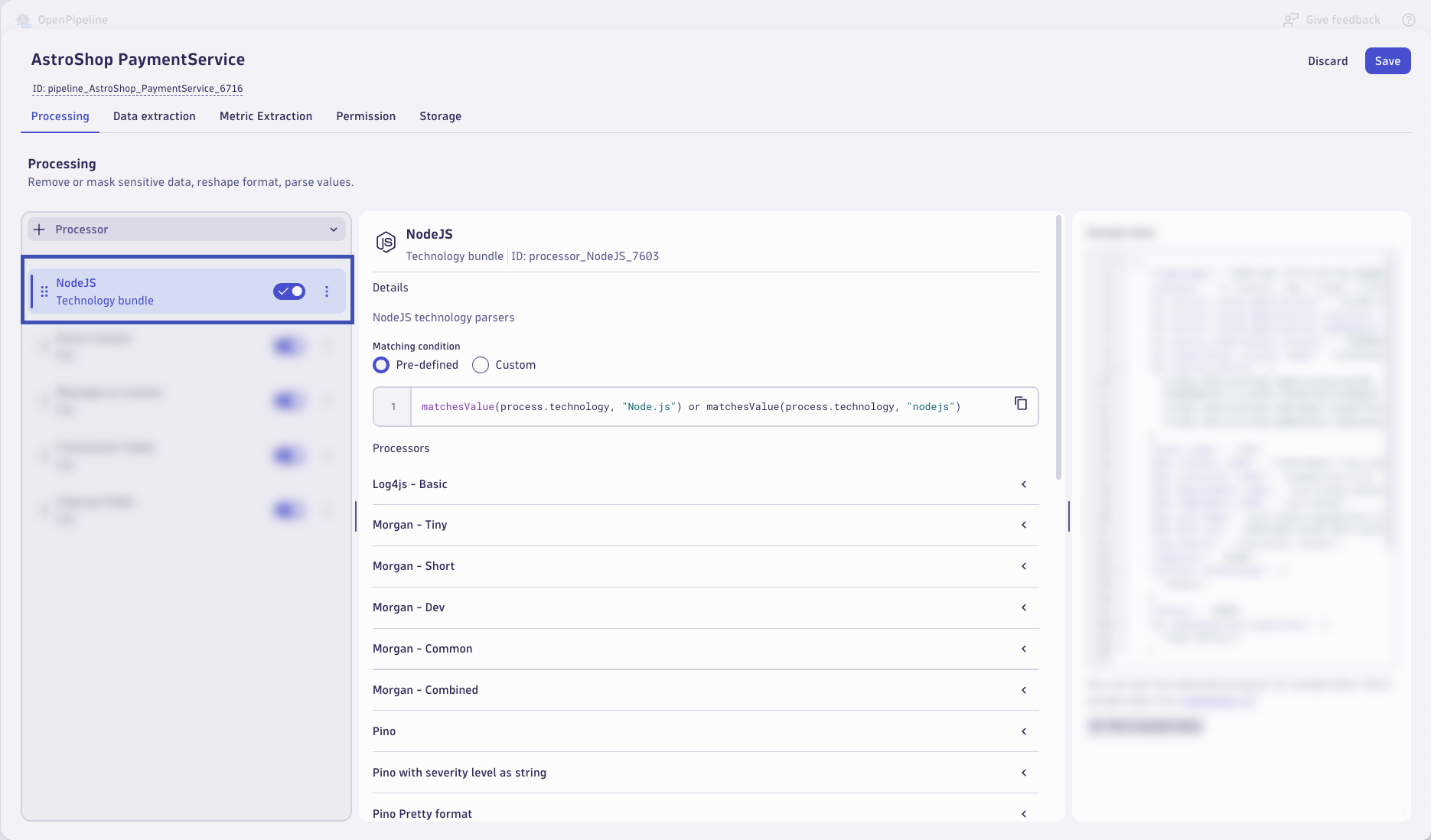

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
NodeJS
Type:
Technology Bundle: NodeJS
Matching condition:
Pre-defined: matchesValue(process.technology, "Node.js") or matchesValue(process.technology, "nodejs")
This processor rule will apply built-in pattern detection for known NodeJS technology log frameworks to parse and enrich the log content. In our example, this will be important to extract the numeric loglevel into a recognizable string value; such as "INFO" or "WARN".
Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
Parse Content
Type:
DQL
Matching condition:
isNotNull(log.raw_level) and loglevel != "NONE" and isNotNull(message)
DQL processor definition:
parse content, "JSON:json_content"
| fieldsAdd content = json_content
| fieldsFlatten content, depth: 3
This processor rule will parse the JSON structured content field and flatten the object into new fields. This will make accessing the details in the content field much easier.

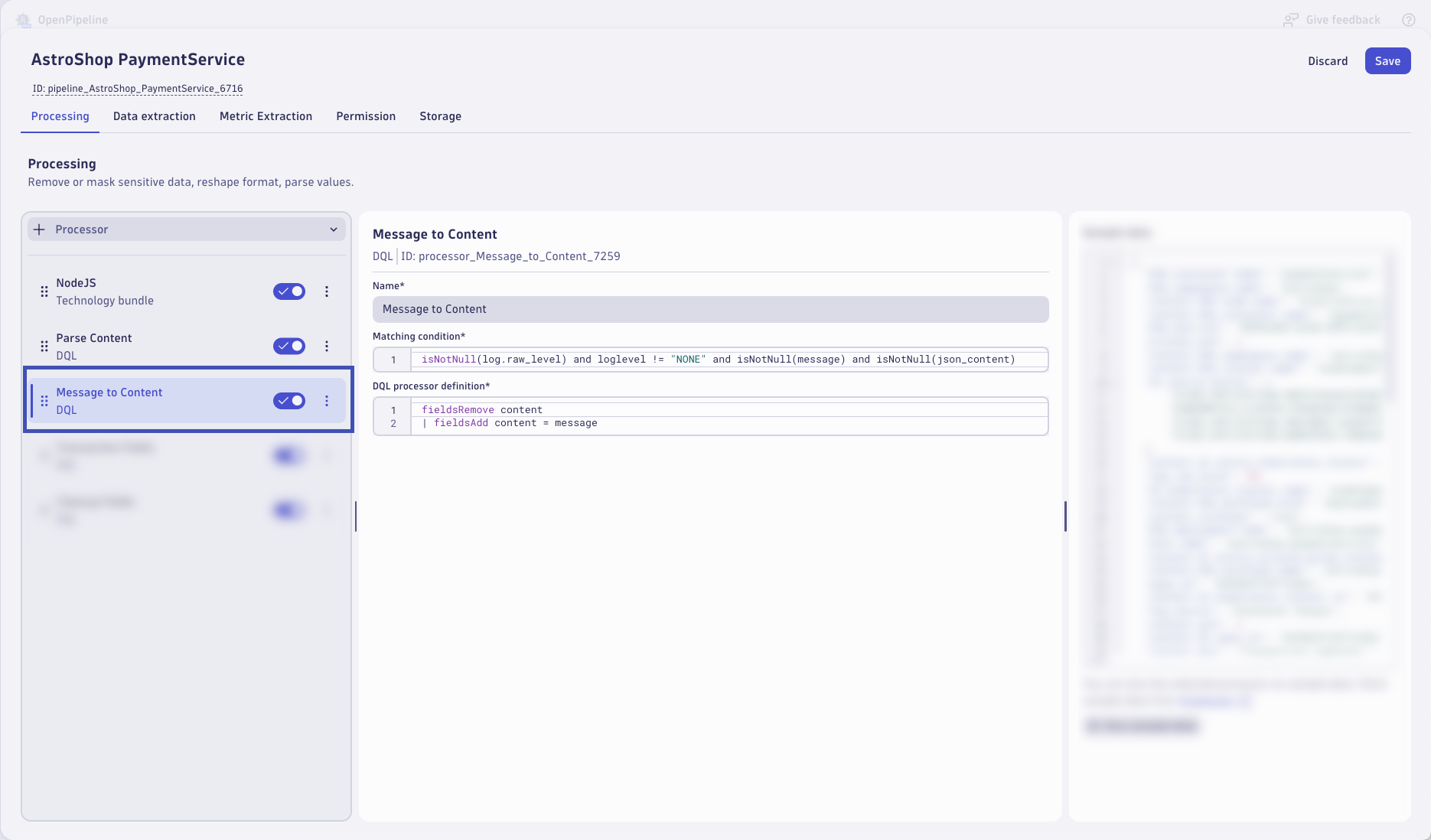

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
Message to Content
Type:
DQL
Matching condition:
isNotNull(log.raw_level) and loglevel != "NONE" and isNotNull(message) and isNotNull(json_content)
DQL processor definition:
fieldsRemove content
| fieldsAdd content = message
This processor rule will replace the content field value with the message field value. The JSON object in the content field is excessive and contains a ton of information that isn't relative to the field itself. The same information already exists on the log, outside of the content field.

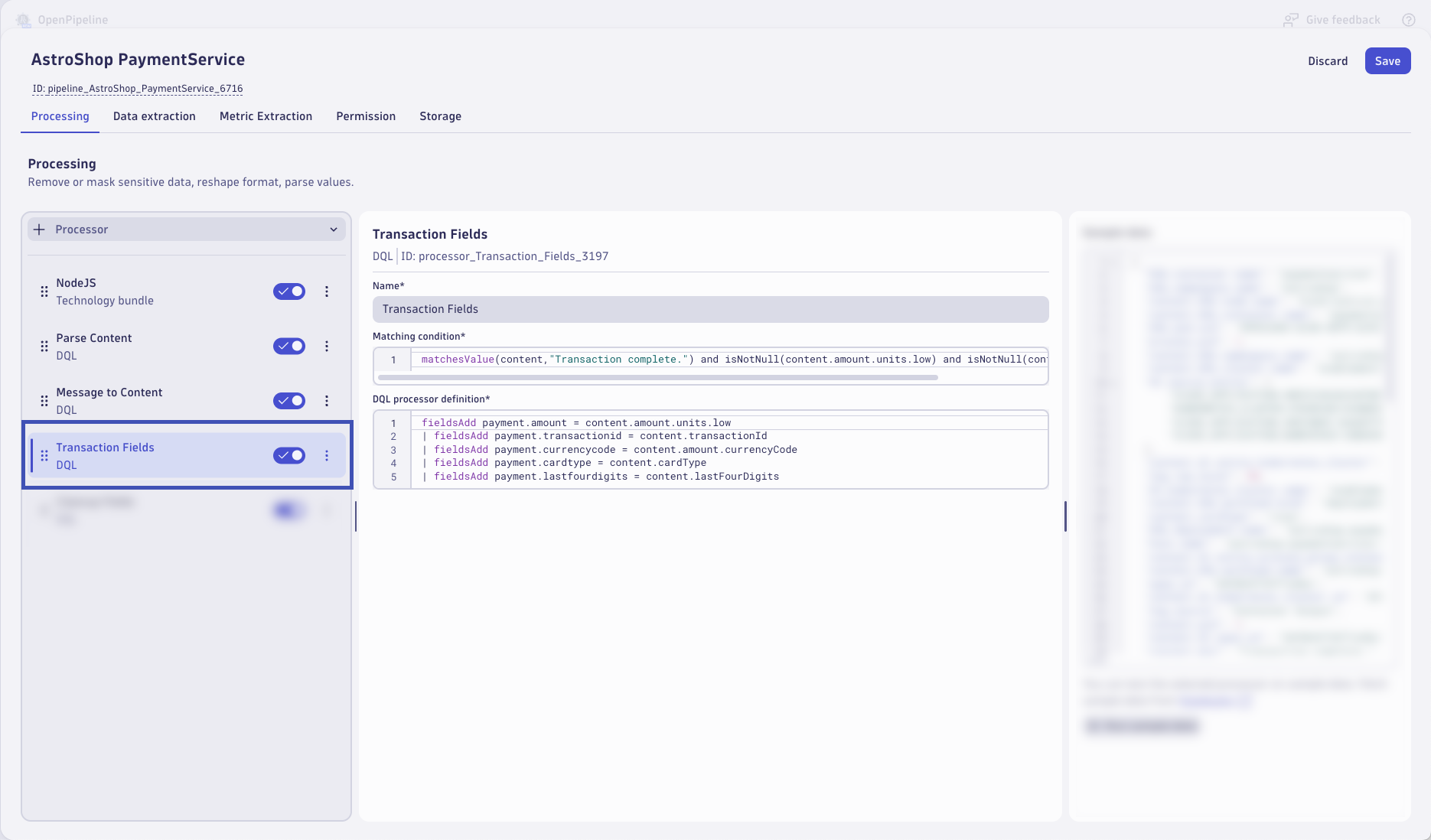

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
Transaction Fields
Type:
DQL
Matching condition:
matchesValue(content,"Transaction complete.") and isNotNull(content.amount.units.low) and isNotNull(content.transactionId)
DQL processor definition:
fieldsAdd payment.amount = content.amount.units.low
| fieldsAdd payment.transactionid = content.transactionId
| fieldsAdd payment.currencycode = content.amount.currencyCode
| fieldsAdd payment.cardtype = content.cardType
| fieldsAdd payment.lastfourdigits = content.lastFourDigits
This processor rule will simplify the field names for extracting business information. When the service successfully processes a payment transaction, a log record is written with the payment information. We want this information extracted for business observability use cases.

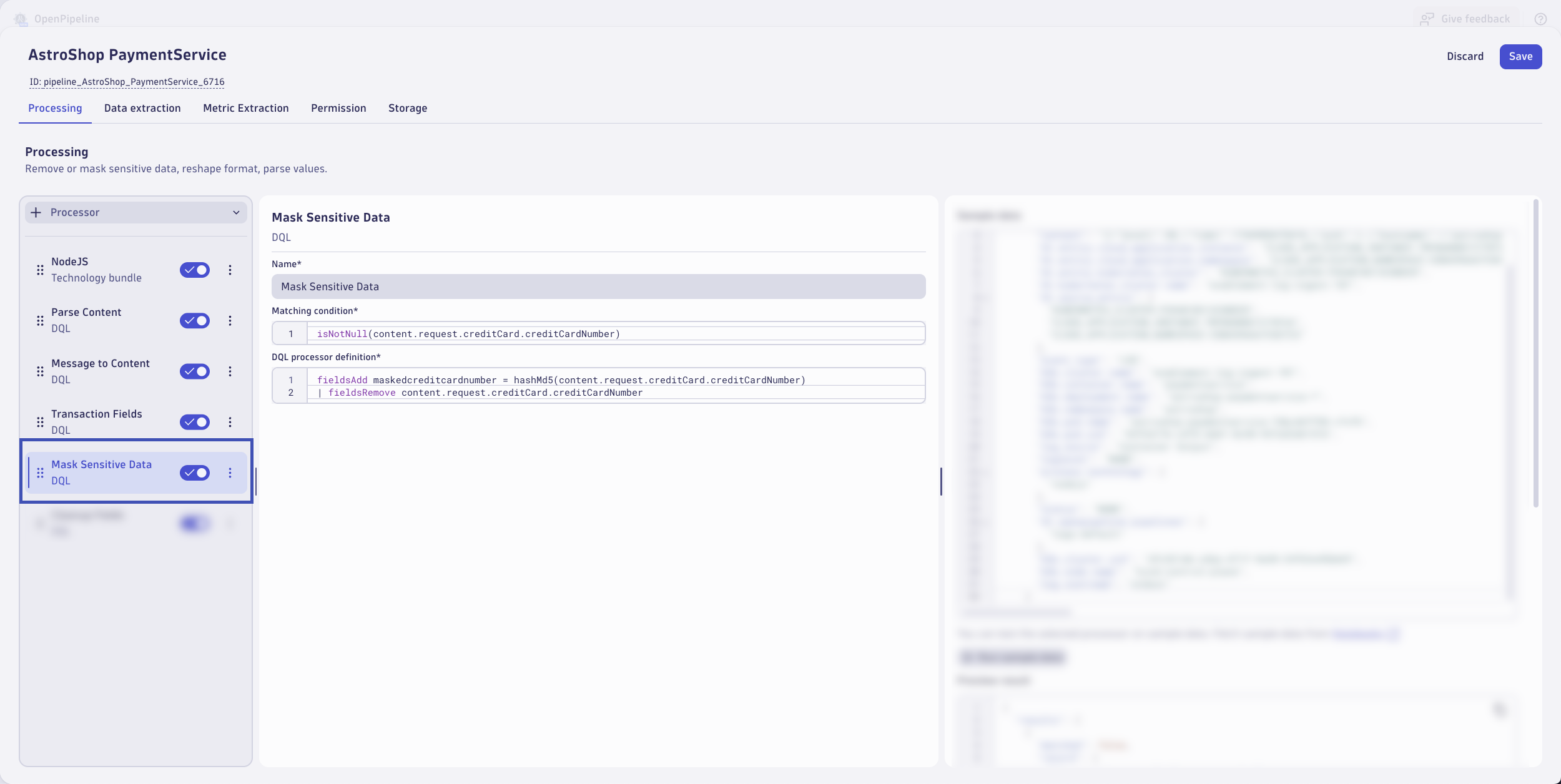

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
Mask Sensitive Data
Type:
DQL
Matching condition:
isNotNull(content.request.creditCard.creditCardNumber)
DQL processor definition:
fieldsAdd maskedcreditcardnumber = hashMd5(content.request.creditCard.creditCardNumber)
| fieldsRemove content.request.creditCard.creditCardNumber
This processor rule will create a new field containing the MD5 hash value of the credit card number. This is an example of masking sensitive data at ingest using OpenPipeline.

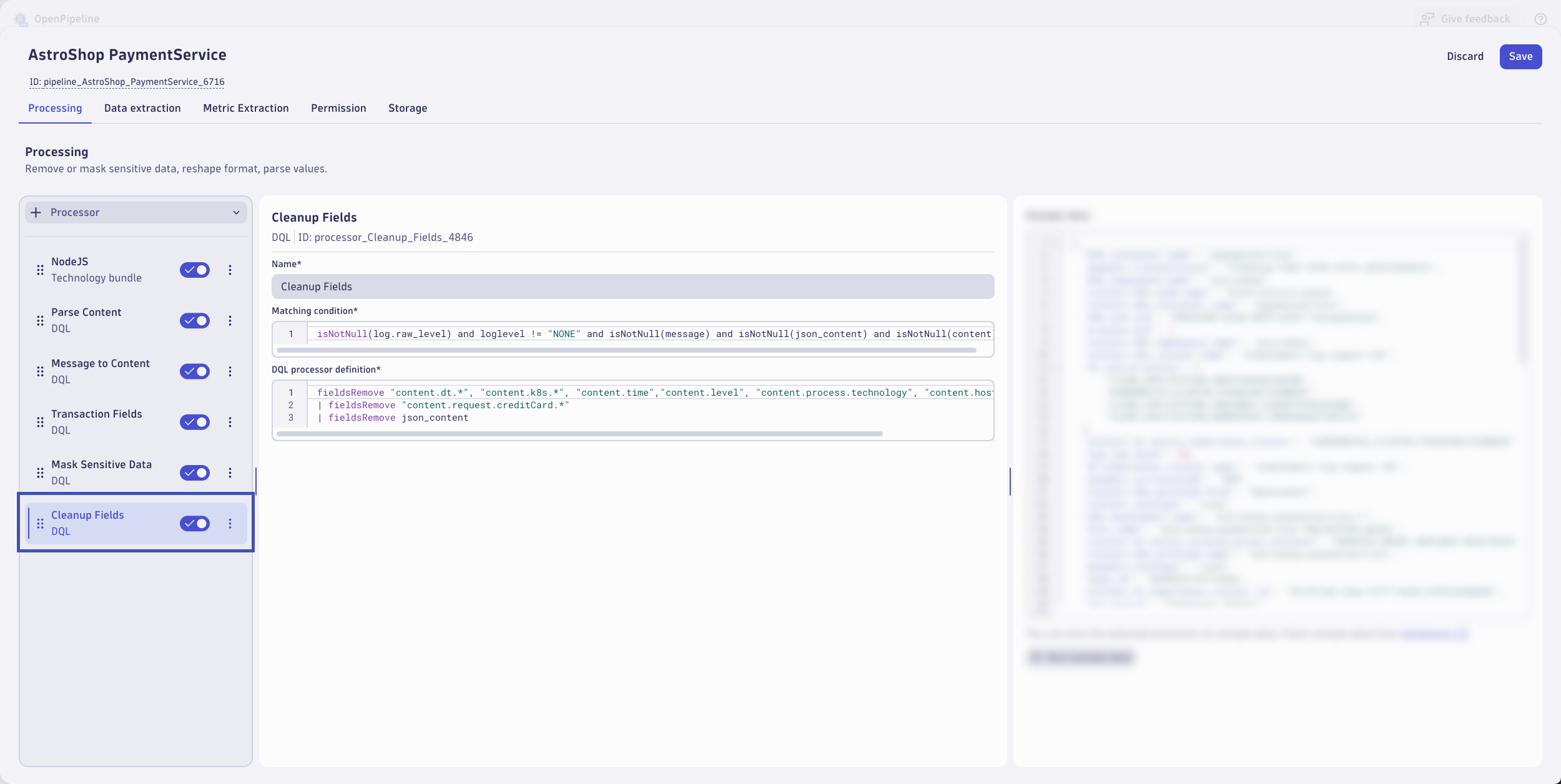

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
Cleanup Fields
Type:
DQL
Matching condition:
isNotNull(log.raw_level) and loglevel != "NONE" and isNotNull(message) and isNotNull(json_content) and isNotNull(content)
DQL processor definition:
fieldsRemove "content.dt.*", "content.k8s.*", "content.time","content.level", "content.process.technology", "content.hostname", "content.pid"
| fieldsRemove "content.request.creditCard.*"
| fieldsRemove json_content
This processor rule will cleanup (remove) fields that are no longer needed. Parsing the content field resulted in many unwanted fields prefixed with content.*. Additionally, the payment request log records contain sensitive credit card data (spoofed of course). This processor will remove those fields with sensitive data. This is an example of masking or deleting sensitive data at ingest using OpenPipeline.
Data Extraction#
Click on the Data extraction tab to create data extraction rules.

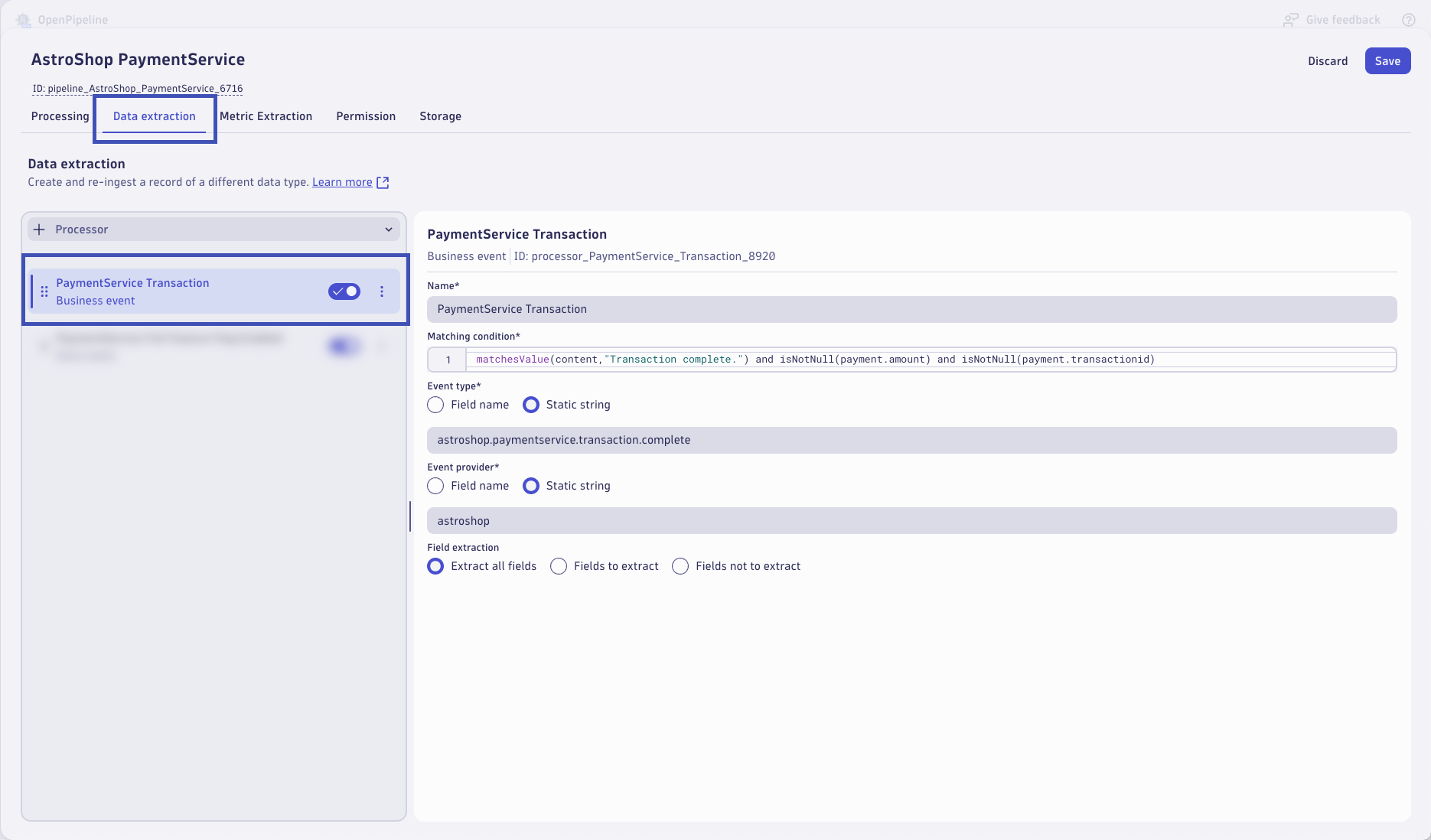

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
PaymentService Transaction
Type:
Business Event
Matching condition:
matchesValue(content,"Transaction complete.") and isNotNull(payment.amount) and isNotNull(payment.transactionid)
Event type:
astroshop.paymentservice.transaction.complete
Event provider:
astroshop
Field extraction:
Extract all fields
This data extraction rule will generate a business event (bizevent) anytime the payment service successfully completes a payment transaction, as identified by the matching log message. This new business event can then be used for business analytics and business observability use cases.

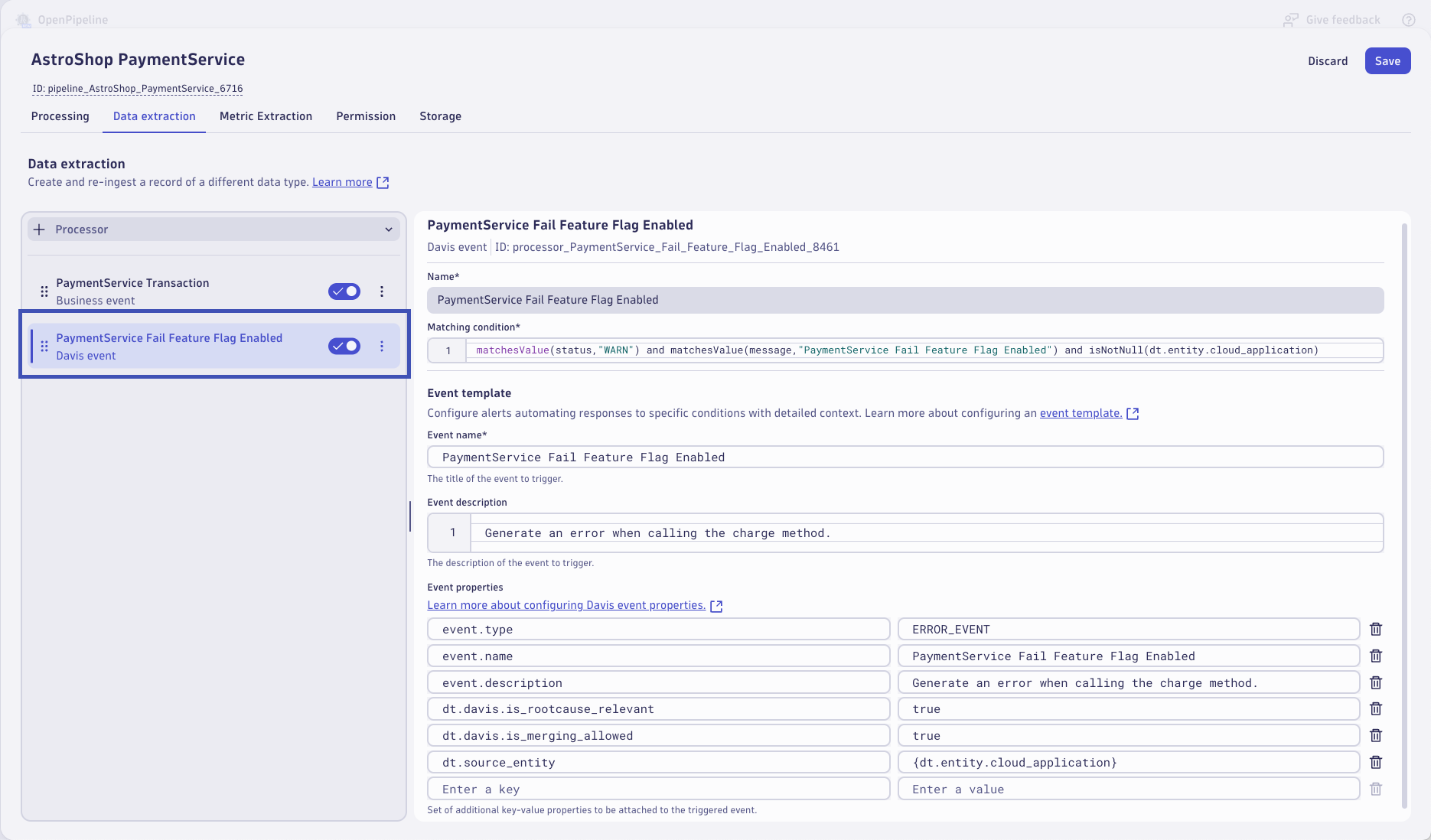

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
PaymentService Fail Feature Flag Enabled
Type:
Davis Event
Matching condition:
matchesValue(status,"WARN") and matchesValue(message,"PaymentService Fail Feature Flag Enabled") and isNotNull(dt.entity.cloud_application)
Event name:
PaymentService Fail Feature Flag Enabled
Event description:
Generate an error when calling the charge method.
Event properties:
| Field | Value |
|---|---|
| event.type | ERROR_EVENT |
| event.name | PaymentService Fail Feature Flag Enabled |
| event.description | Generate an error when calling the charge method. |
| dt.davis.is_rootcause_relevant | true |
| dt.davis.is_merging_allowed | true |
| dt.source_entity | {dt.entity.cloud_application} |
This data extraction rule will generate a Davis event (alert) anytime the payment service fails to process a payment transaction due to the problem pattern (feature flag) being enabled. This is an example of using OpenPipeline to alert on log data at ingest.
Metric Extraction#
Click on the Metric extraction tab to create metric extraction rules.

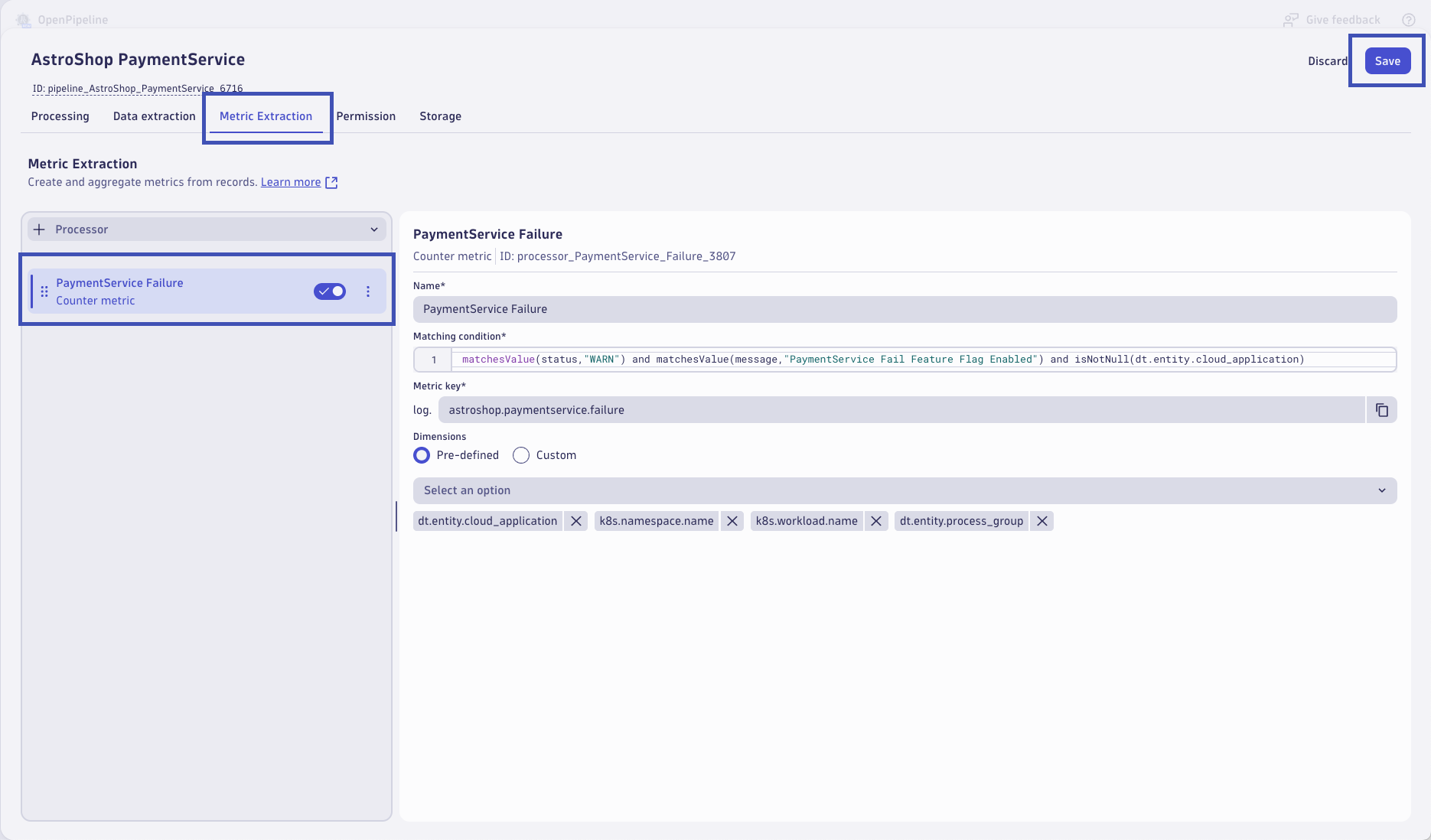

Add a new processor rule by clicking on + Processor. Configure the processor rule with the following:
Name:
PaymentService Failure
Type:
Counter metric
Matching condition:
matchesValue(status,"WARN") and matchesValue(message,"PaymentService Fail Feature Flag Enabled") and isNotNull(dt.entity.cloud_application)
Metric key:
log.astroshop.paymentservice.failure
Dimensions:
| Pre-defined fields |
|---|
| dt.entity.cloud_application |
| dt.entity.process_group |
| k8s.namespace.name |
| k8s.workload.name |
This metric extraction rule will create a counter metric to count the number of payment service failures caused by the feature flag being enabled. Using DQL, one could count the number of log messages, summarize or make a timeseries of that data on the fly. However, in order to optimize query costs and reduce raw log query volume, converting specific log data to metrics is a best practice for a use case such as this.
Permission and Storage Processors
OpenPipeline can also be used to set the security context of the log data to manage permissions to specific logs. Additionally, you can use storage processor rules to store specific log data in a bucket that is configured for a desired retention time. For this lab, we will not create permission or storage processor rules.
Click on Save to finish and save your new pipeline.
Dynamic Route#
A pipeline will not have any effect unless logs are configured to be routed to the pipeline. With dynamic routing, data is routed based on a matching condition. The matching condition is a DQL query that defines the data set you want to route.
Click on Dynamic Routing to configure a route to the target pipeline. Click on + Dynamic Route to add a new route.

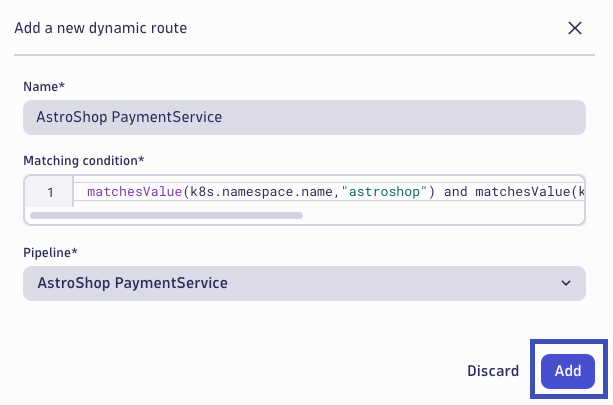

Configure the Dynamic Route to use the AstroShop PaymentService pipeline.
Name:
AstroShop PaymentService
Matching condition:
matchesValue(k8s.namespace.name,"astroshop") and matchesValue(k8s.container.name,"paymentservice")
Pipeline:
AstroShop PaymentService
Click Save to add your new route.
Validate that the route is enabled in the Status column. Click on Save to save the dynamic route table configuration.
Allow the paymentservice from astroshop to generate new log data that will be routed through the new pipeline (3-5 minutes).
Query Logs#
Return to the Logs app and filter on the logs generated by the payment service.
k8s.namespace.name = "astroshop" k8s.container.name = "paymentservice"
Continue#
In the next section, we'll query, view, and analyze logs ingested into Dynatrace.
