for learning, and playing around there is nothing better than having a separate VM that you can break. This can be either an instance in a cloud provider or a virtual machine @ localhost. On your working station you can use a docker container with an ubuntu image or https://multipass.run/. Multipass is a great way to instantiate Ubuntu VMs and runs on Linux, Mac and Windows. it's made by the Ubuntu team highly optimized.

Download & Install

Download multipass and install it depending on your OS https://multipass.run/

Show the help

multipass -h

Start a VM with x size

multipass launch --name <vm-name> --mem 4G --disk 10G --cpus 2

Start the VM

multipass start <vm-name>

Stop the VM

multipass stop <vm-name>

List VMS

multipass list

Shell into the VM

you can also shell into the vm with the ip but you need to set a password for the user ubuntu and enable password on the SSH service

multipass shell <vm-name>

Create VM

multipass launch --name easytravel --mem 4G --disk 10G --cpus 2

Start VM

multipass start easytravel

Shell into VM

multipass shell easytravel

Download install script

Download help script to install Easytravel, Nginx, Docker and other utils

wget https://raw.githubusercontent.com/sergiohinojosa/Dynatrace-REST-Tenant-Automation/master/aws/ubuntu-setup-easytravel.sh

Make the log visible also on the console

sed -i 's/pipe_log=true/pipe_log=false/g' ubuntu-setup-easytravel.sh

(Optional) Let it install the OneAgent

## Set TENANT and API TOKEN
# ---- Define Dynatrace Environment ----
# Sample: https://{your-domain}/e/{your-environment-id} for managed or https://{your-environment-id}.live.dynatrace.com for SaaS
TENANT=
PAASTOKEN=
APITOKEN=

Execute script

run the command as root for installing also utils as docker, in the VM you have a docker server where you can spin containers also easily. The script will install easytravel start it and it wll also install the BankJob (a java app for learning how the basline of Davis works) and an NGINX reverse proxy that routes the traffic of EasyTravel Angular to port 80.

sudo su;
sh ubuntu-setup-easytravel.sh;

Verify the log of Easytravel

This is optional just for you to know where the output of Easytravel is being piped out. Each Easytravel component writes is logs. You can check them on the Admin console of Easytravel

less +F /tmp/weblauncher.log

Check running containers

Docker is installed on the system. There are two running containers, one is a java app called "BankJob" another is nginx working as a reverse proxy for multiple endpoints of Easytravel

docker ps

stop all containers

docker stop reverseproxy bankjob

start all containers

docker start reverseproxy bankjob

The load generation for EasyTravel is defined in the easyTravelConfig.properties file which is setted up during the installation. The properties starting with config.baseLoad.. are the ones defining these values (changed at installation). Also you can manage set this values manually by accessing the http://easytravel/admin interface and moving the slider manually.

🟡 UserActions for easyTravel Classic and Angular use different Load generators, the one for classic (older and embedded in the web launcher process) is detected by Dynatrace that are not real users and the Actions are displayed as requests (can be confirmed doing a backtrace from the Database). The load generator for Angular spins every time a chromium process and does a session based on a browser as you would. For fixing the UserActions for Classic just remove deep monitoring for the web launcher process.

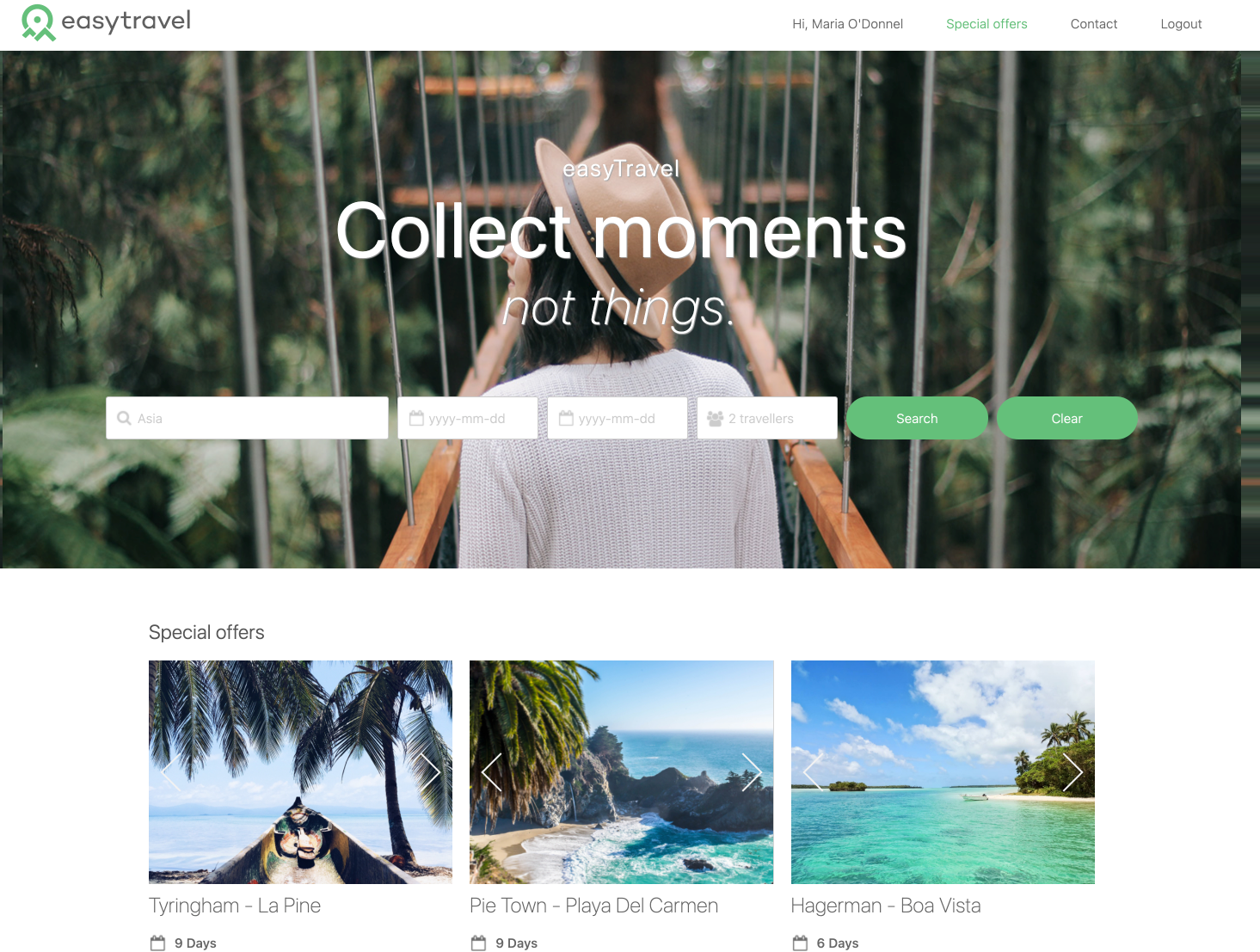

http://easytravel

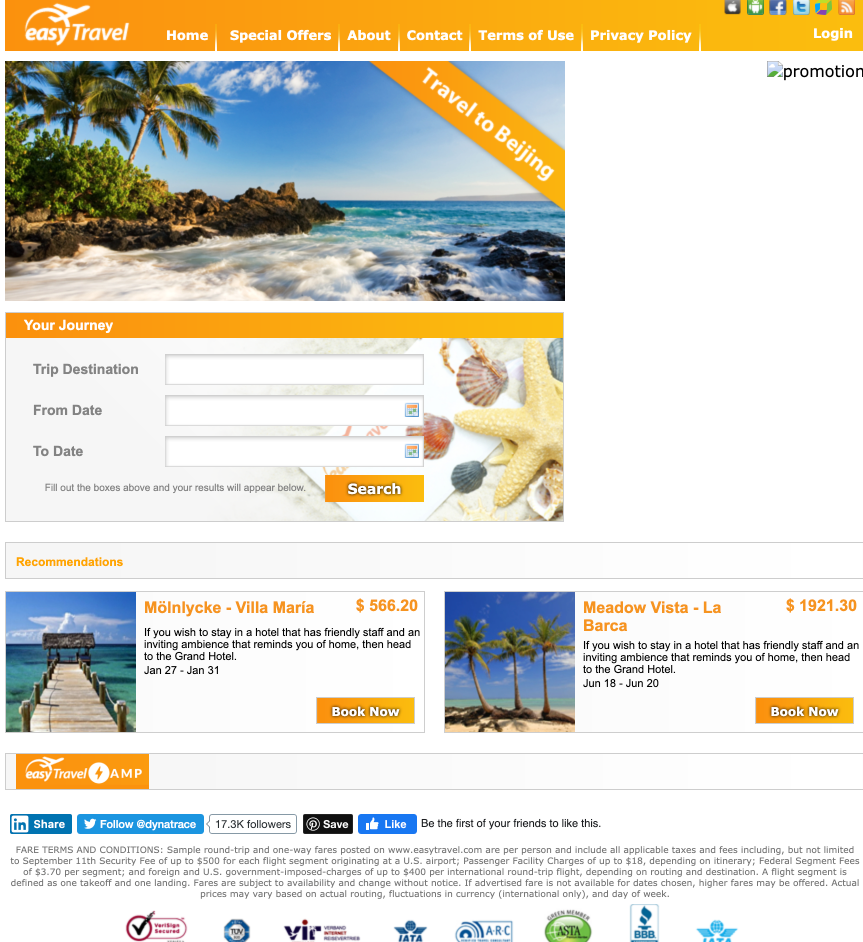

http://easytravel/classic

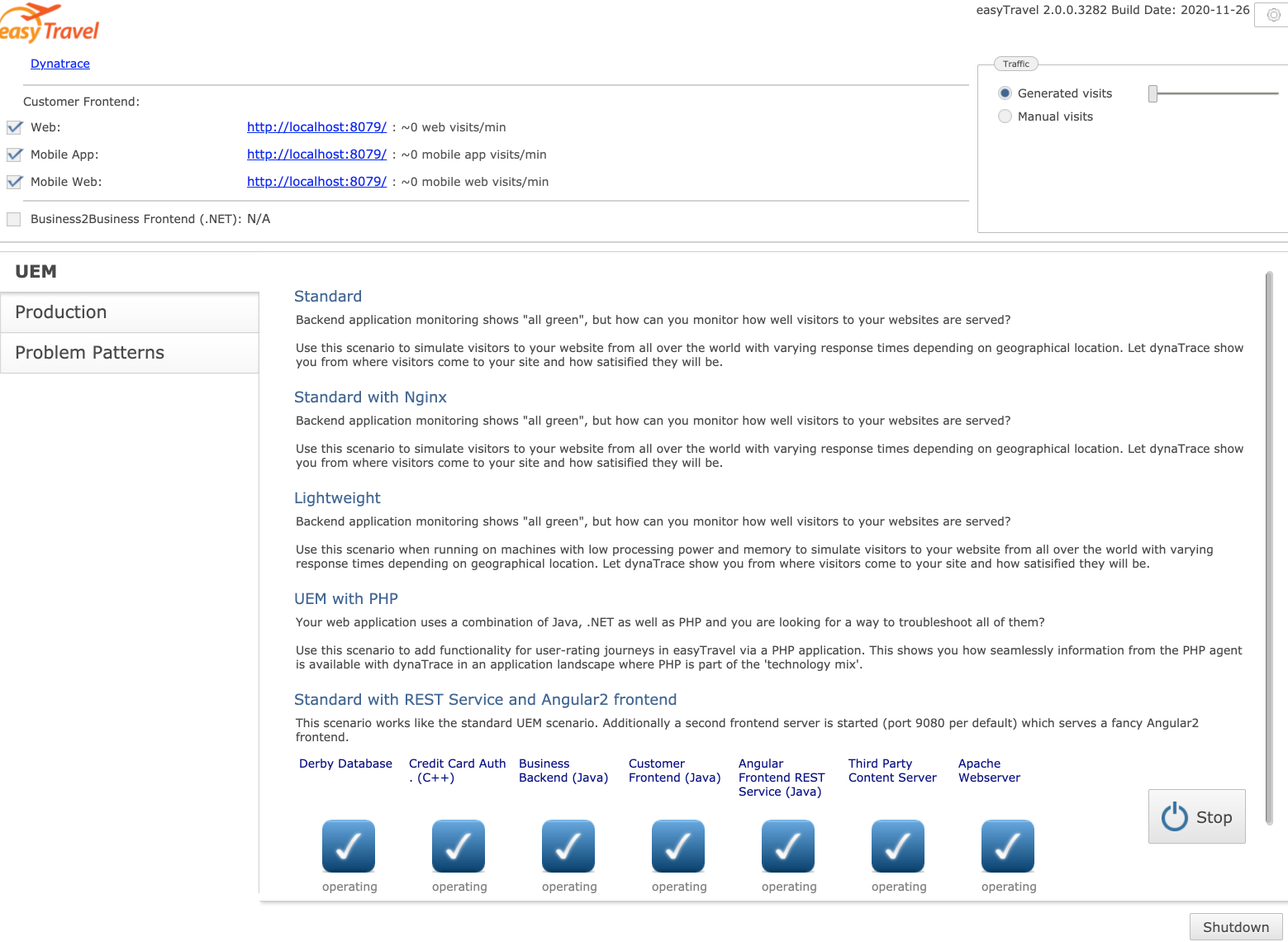

http://easytravel/admin

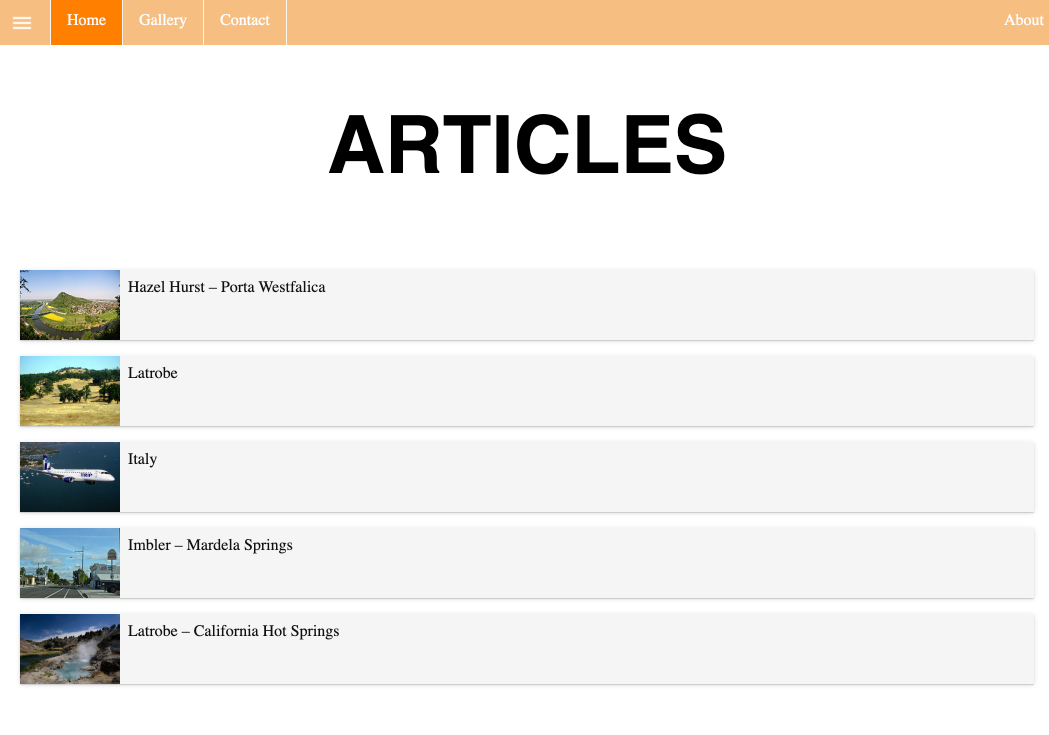

http://easytravel/amp

Kill all processes

killall java

Start easyTravel as UBUNTU (not root)

If you happen to install easytravel as root, you might want to change recursively all the rights of the easytravel installation folder so all processes can run properly

sh /home/ubuntu/easytravel-2.0.0-x64/weblauncher/weblauncher.sh > /tmp/weblauncher.log 2>&1 &

Fix easyTravel rights

chmod 755 -R /home/ubuntu/easytravel-2.0.0-x64/

Fix easyTravel ownership

chown ubuntu:ubuntu -R /home/ubuntu/easytravel-2.0.0-x64/

Check if there are running easytravel leftovers (processes)

ps -aux | grep easy

Restart all with a one-liner (must be root)

sudo su;
killall java; docker start reverseproxy bankjob; USER=ubuntu; su -c "sh /home/$USER/easytravel-2.0.0-x64/weblauncher/weblauncher.sh > /tmp/weblauncher.log 2>&1 &" $USER

Disable monitoring of launcher

For RUM to work properly (for the classic app e.g. Loadgenerator) you need to disable deep monitoring for the weblauncher process.

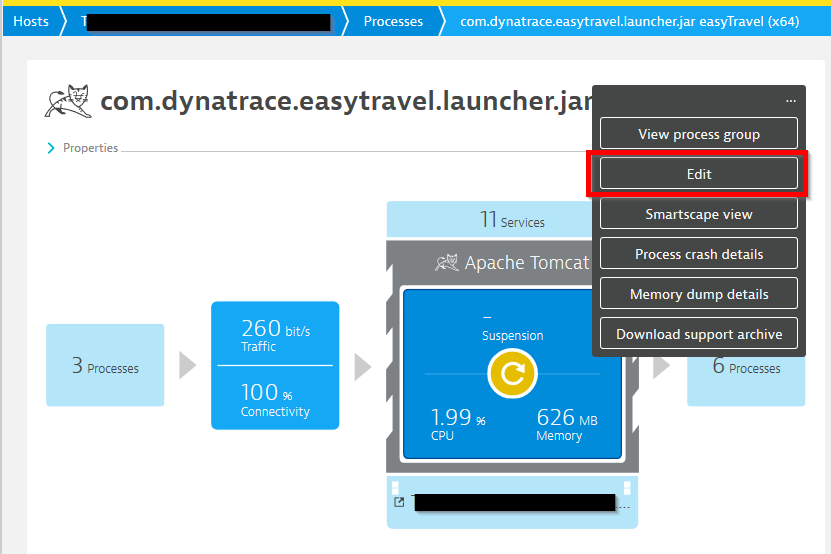

On the entity select edit...

Then disable monitoring for that process group instance...

easyTravel documentation

https://confluence.dynatrace.com/community/display/DL/easyTravel
